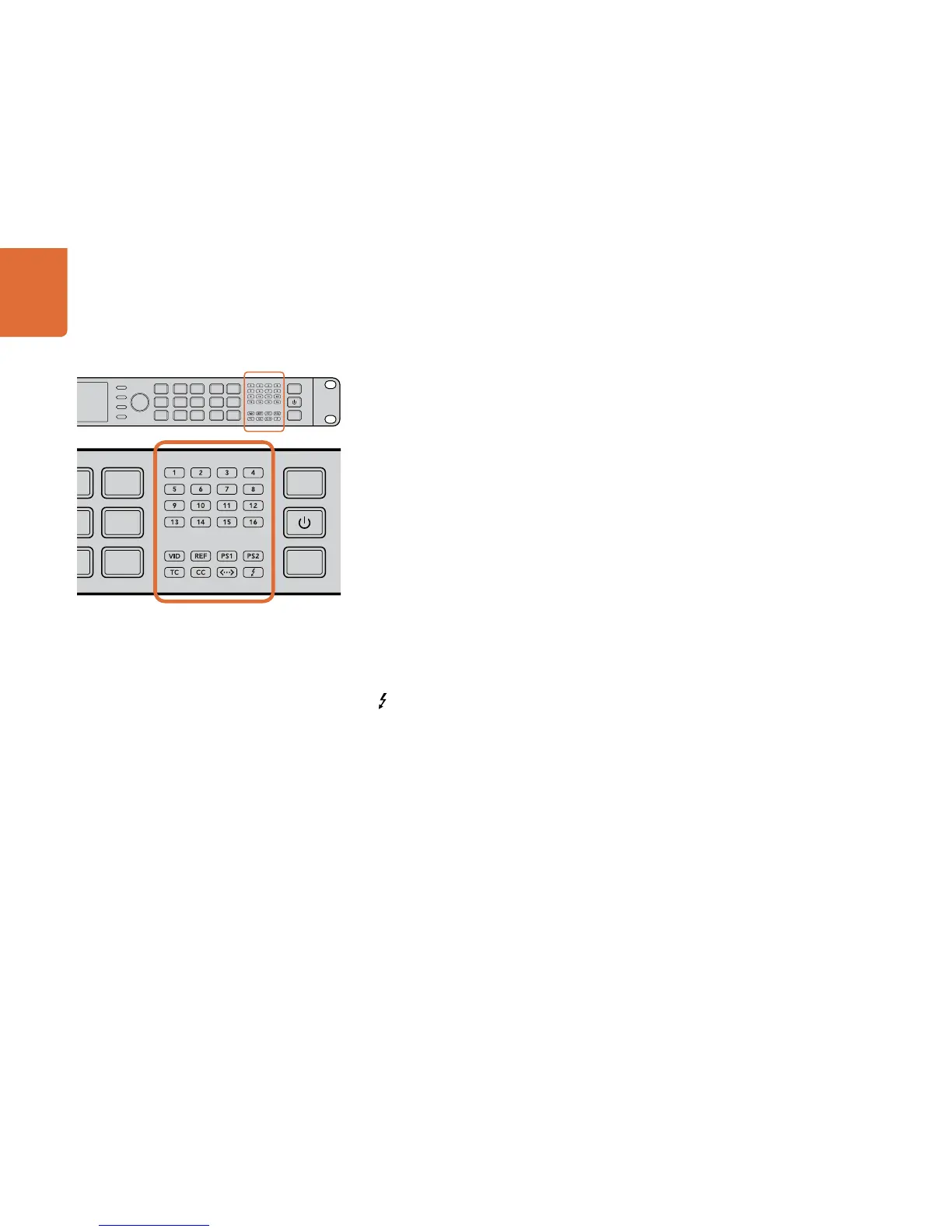

Status LEDs
Audio Status LEDs
When illuminated, the Audio Status LEDs will indicate the presence of audio on the active input audio
channels. The maximum numbers of channels supported for each audio type are:
Embedded Audio: 1 through 16
AES/EBU Audio: 1 through 8
Analog Audio: 1 through 4 for DB-25 I/O
1 and 2 for Stereo R/L Input
System Status LEDs
When illuminated, the System Status LEDs will indicate the following:
VID Input video is present
REF External Reference is selected and External Reference Input is present
PS1 Power Supply 1 is operational
PS2 Power Supply 2 is operational (optional)
TC Timecode is present in input video
CC Closed Captions are present in input video
<--> Ethernet communication is present
Thunderbolt
™
communication is present
