Proc Amp Menu
The Proc Amp Menu may be accessed via the Video menu above, or by pressing the desired adjustment
parameter directly from the front panel. Available parameters are: Gain, Saturation, Black Level, Hue, R-Y
and B-Y color difference and Sharpness. Select the desired parameter to adjust on the menu or via the
corresponding front panel button, and then turn the Rotary Encoder to adjust. You can press the rotary
encoder knob to return the default value for the current parameter.
 Gain – Range: -60 to +60. Default: 0
 Saturate (Saturation) – Range: -60 to +60. Default: 0
 Black – Range: -30 to +30. Default: 0
 Hue – Range: -179 to +180. Default: 0 degrees
 R-Y and B-Y – Range: -200 to +200. Default: 0
 Sharp (Sharpness) – Range:-50 to 50. Default: 0
 Reset All – Resets all Proc Amp parameters to their default values

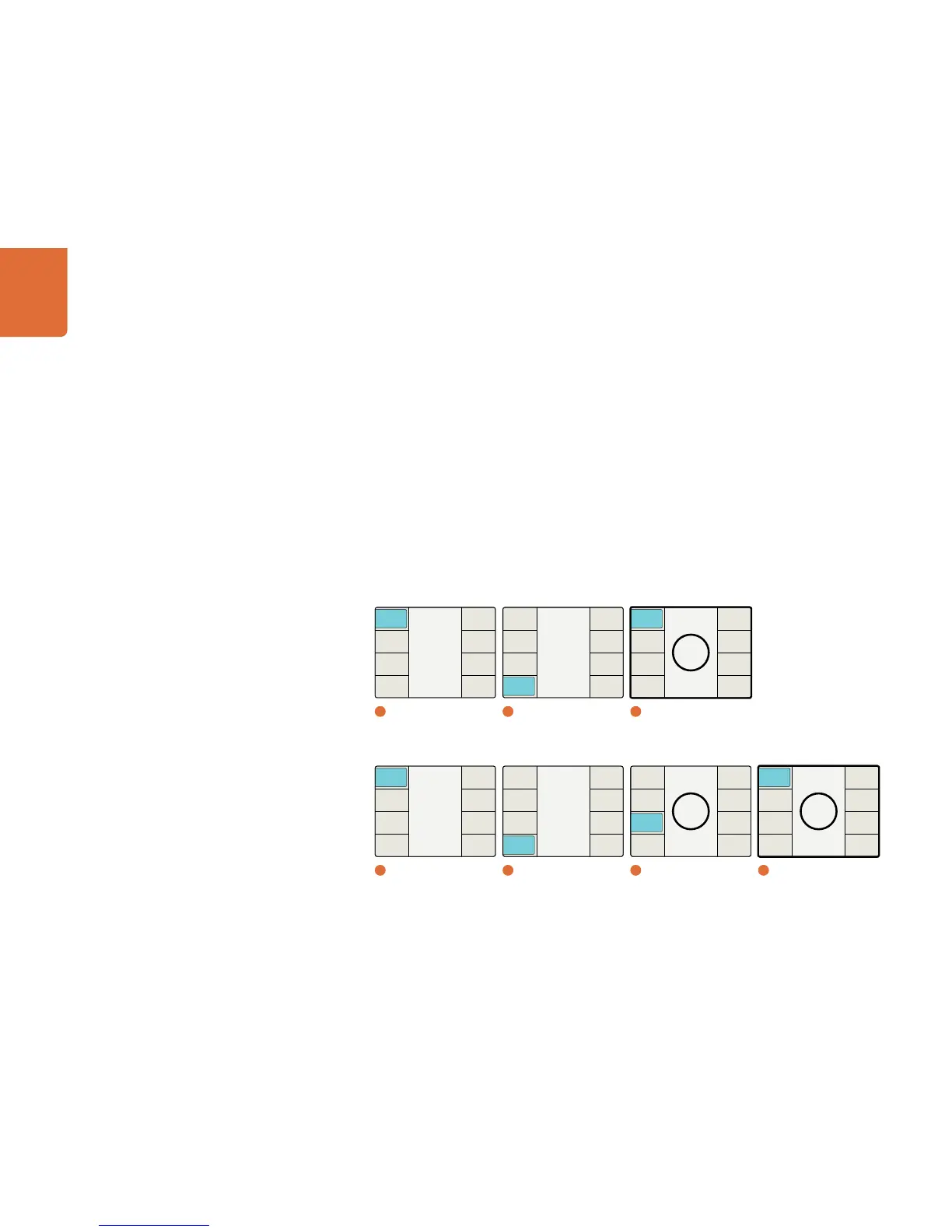

Please note that the R-Y and B-Y selection will open another menu page, as shown below
