Blackmagicdesign Teranex 2D Processor User Manual

Understanding the LCD Menus
69

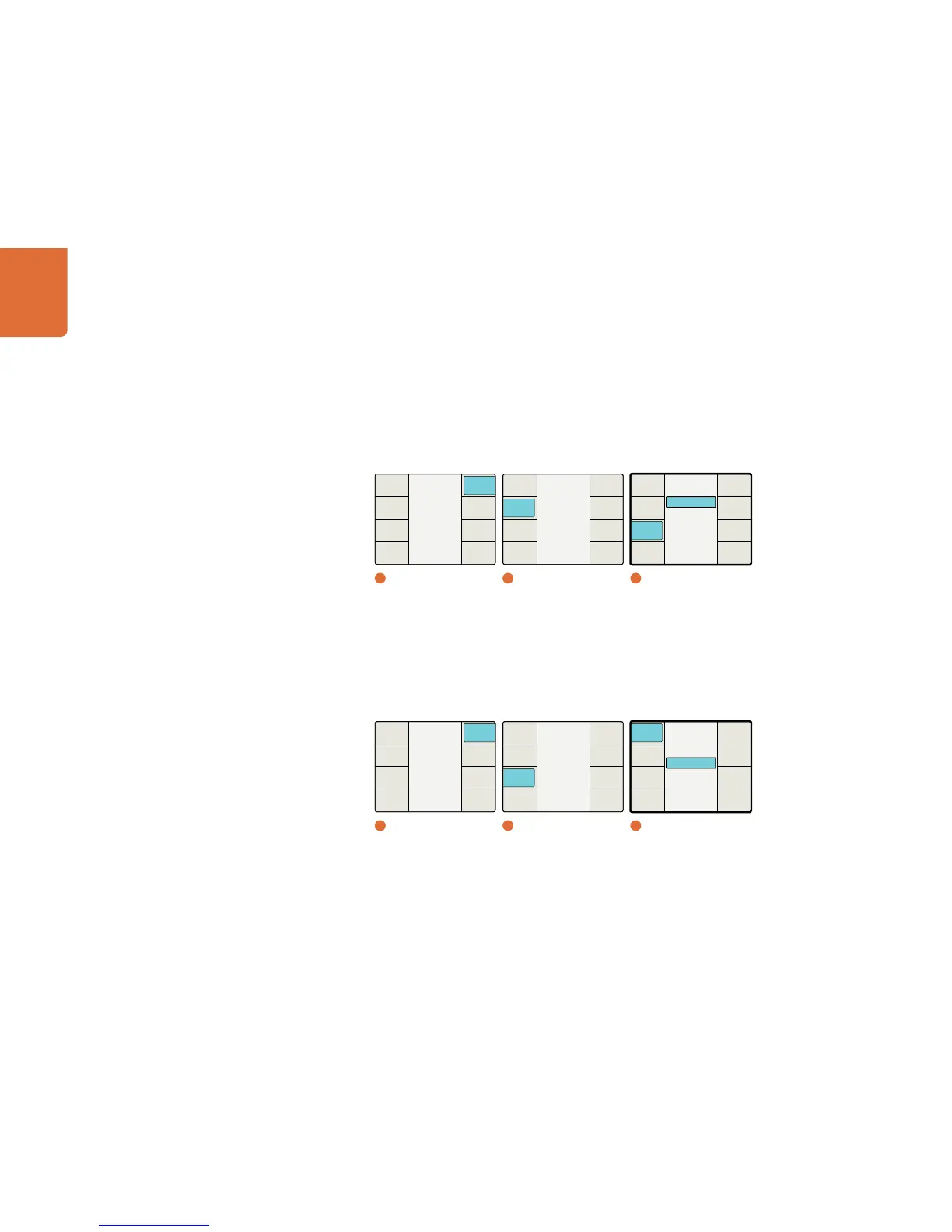

Output Analog Video Setup Menu
This menu allows you to define the type of output analog video that you are using.
 Component – Routes component Y, R-Y and B-Y to the respective output BNC connections.
 Composite – Routes composite video to the Y/NTSC/PAL output BNC connector.
 The default setting is Component.
Audio Setup Menu
The Audio Setup menu allows you to select the analog audio input source that you want to use on the
rear panel. The choices are the RCA Phono or DB-25.
 RCA – Stereo RCA Phono connectors (L/R).
 DB-25 – 4-channel balanced analog audio via the DB-25 connector.
 The default setting is DB-25.
Main Menu
Back
Setup
Ancillary
Data
Noise
Reduction
Video
1
Main Menu
Setup
Back
Audio
Video
Reference
2
Setup
Composite
Component
Analog Output
Back
Output
Analog
Input
Analog
No Input
3
Video / Output Analog
Main Menu
Back
Setup
Ancillary
Data
Noise
Reduction
Video
1
Main Menu
Setup
Back
Audio
Video
Reference
2
Setup
DB25
RCA
Analog Input
Back
Input
Analog
3
Audio / Input Analog
