Getting Started with Capture and Playback
20
Install the Blackmagic Teranex Software
After installing your hardware, the next step is to install the Blackmagic Teranex software.
Installing Blackmagic Teranex Software on Mac OS X
Before installing any software you will need administrator privileges.
Step 1. Ensure you have the very latest driver. Visit www.blackmagicdesign.com/support
Step 2. Open the “Blackmagic Teranex” folder from the disc or downloaded disk image and launch the
“Blackmagic Teranex Installer”.
Step 3. Click Continue, Agree and Install buttons and the software will be installed on your system.
Step 4. Now restart your computer to enable the new software drivers.
Plugins and Applications that are installed
The Desktop Video software installs the following components:
Teranex Utility
Blackmagic Desktop Video drivers
Blackmagic Design system preference
Blackmagic Design LiveKey
Blackmagic Media Express
Blackmagic QuickTime
™
codecs
Blackmagic Disk Speed Test
Adobe
®
Premiere Pro, After Effects, Photoshop presets and plug-ins
Apple Final Cut Pro
™
7 Easy Setups, presets and enablers
Apple Final Cut Pro
™
X plug-ins
Avid Media Composer 6 plug-ins
On Mac OS X, all the files needed to run your Teranex Processor will be installed into a folder called
Blackmagic Teranex in the Applications folder. In this folder, you will see Teranex Utility which allows you to
update the internal software via USB. Also included in the folder is this instruction manual.
In the Applications folder, you will see Blackmagic Media Express which allows you to capture and
playback video when your Teranex Processor is connected to your computer via a Thunderbolt connection.
Alternatively the Thunderbolt connection allows you to perform waveform monitoring of your video input
using the Blackmagic UltraScope software.

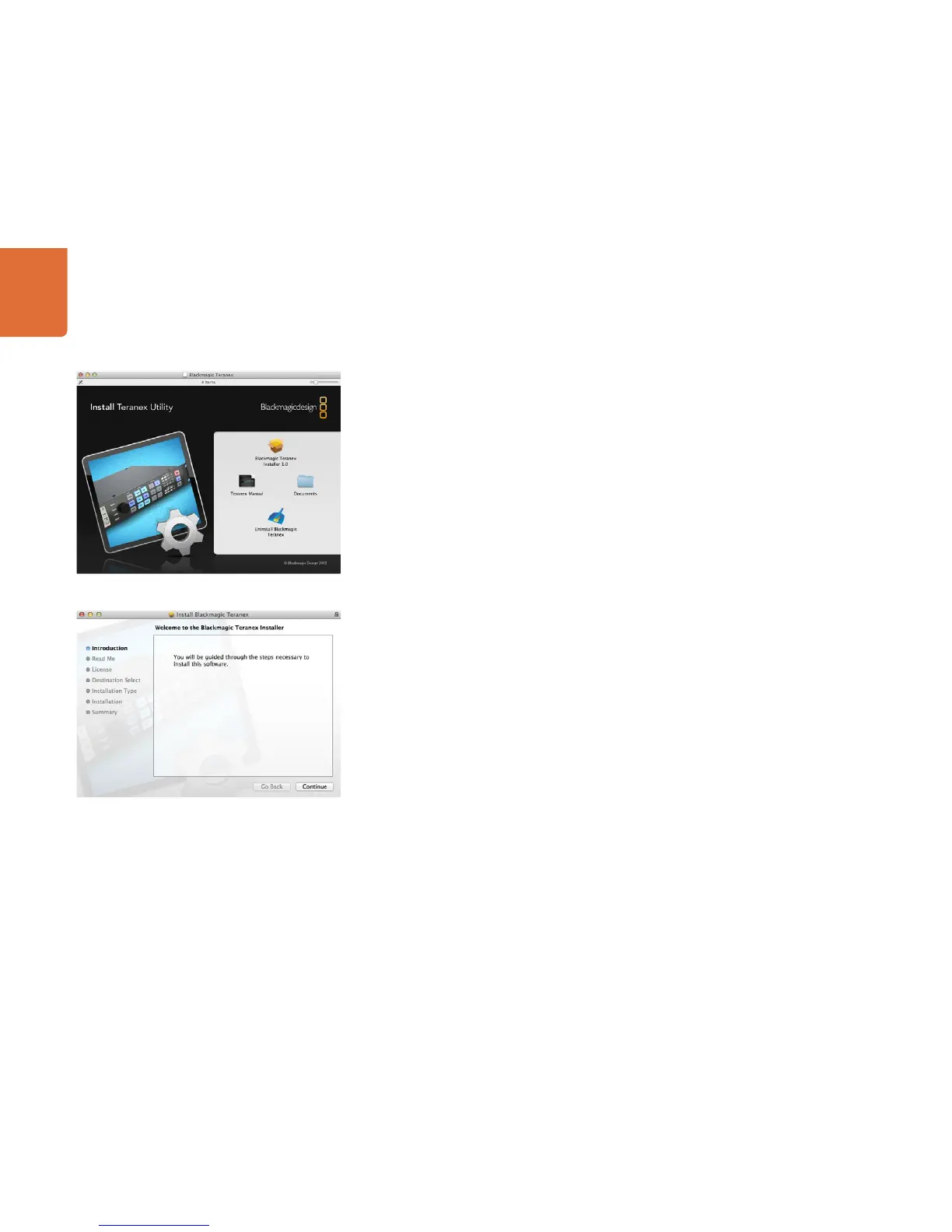

Follow install prompts
