BluStream Multicast ACM200 User Manual

ACM200 USER MANUAL
26 www.blustream.co.uk / www.blustream.com.au
Fixed Routed Audio
The ACM200 allows for the audio component of a HDMI signal to be routed independently throughout the
Blustream Multicast system. Under normal operation the embedded audio within a HDMI signal will be distributed
with the associated video signal from Transmitter to Receiver/s.
The fixed audio routing capabilities of the ACM200 allow for the audio track from one source to be embedded onto
another Transmitters video stream.
Connections:
The third party control processor IR, or Blustream IR receiver, is connected to the IR RX socket on the Multicast
Transmitter or Receiver.
Please note: You must use Blustream 5V IRR Receiver or Blustream IRCAB (3.5mm stereo to mono 12V to 5V IR
converter cable). Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers
Infrared solutions.

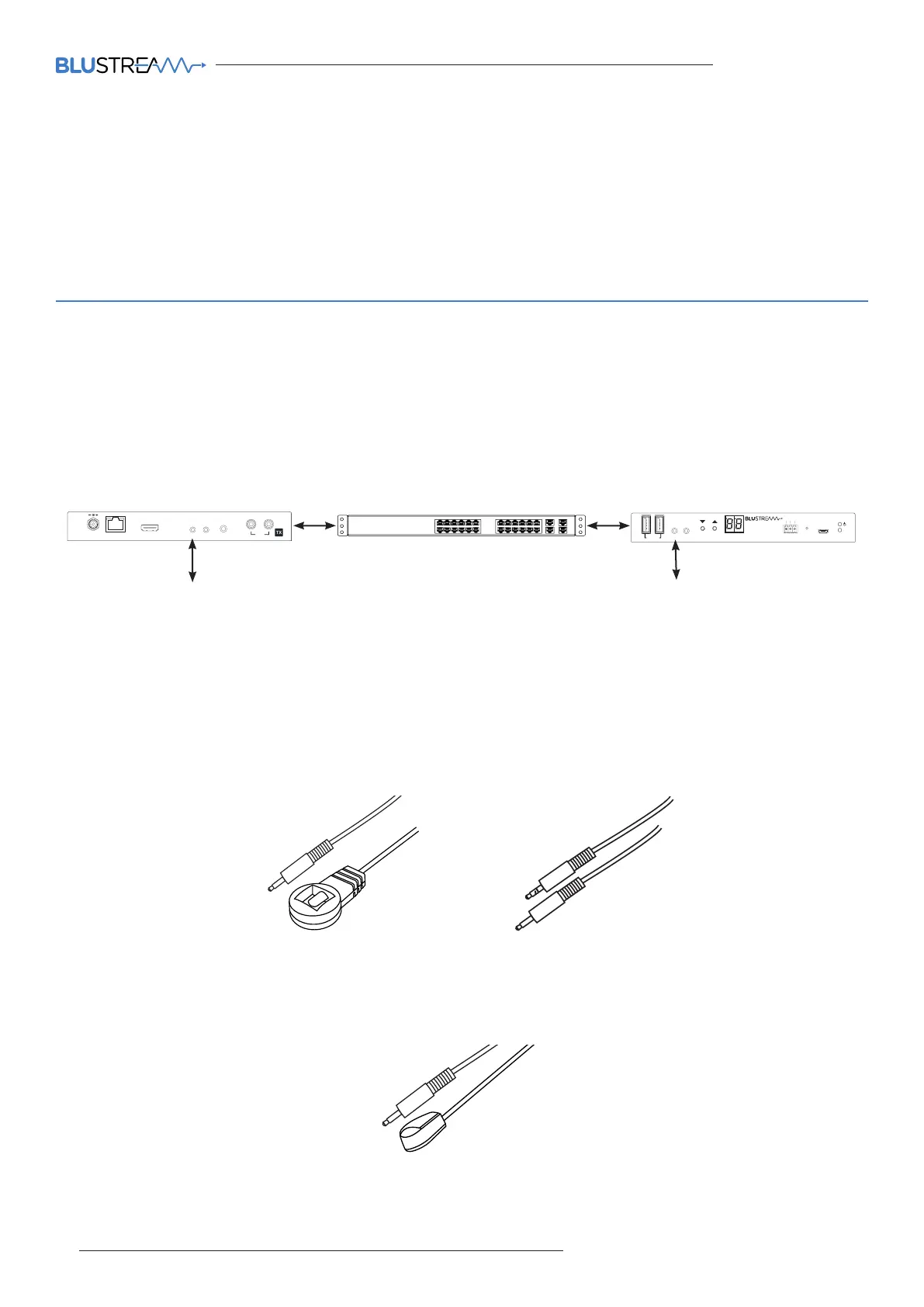

Fixed Routed IR
The fixed IR routing feature allows a fixed bi-directional IR link between 2x Multicast devices. The IR signal is only
routed between configured RX to TX, or TX to TX. This can be useful for sending IR from a centrally located third
party control solution (ELAN, Control4, RTi, Savant etc) and using the Blustream Multicast system as a method of
extending IR out to a display or another product in the system. The IR link is bi-directional so can also be sent back
the opposite way at the same time.
The Blustream 5V IRE1 Emitter is connected to the IR OUT socket on the Multicast Transmitter or Receiver.
The Blustream IRE1 & IRE2 Emitters are designed for discrete IR control of hardware.
(IRE2 - Dual Eye Emitter sold separately)
IP200UHD-RX
MULTICAST UHD
LINK
RS-232
CH
CH SELECT
Rx
Tx
Gnd
OUT
OUT
IN
IN
IR
IR
IR
IR
1 USB 2
LINK
IP200UHD-TX
UPDATE
UPDATE
RS-232
Rx
Tx
Gnd
MULTICAST UHD
CH
CH SELECT
USB
LAN / PoE
LAN / PoE
HDMI IN
HDMI OUT
LOOP OUT
L / R
DC IN
24~56V
DC IN
24~56V
AUDIO
IN
L / R
Third party control system
i.e. - Control4, ELAN, RTi etc.
IR
IR
IP200UHD-RX
MULTICAST UHD
LINK
RS-232
CH
CH SELECT
Rx
Tx
Gnd
OUT
OUT
IN
IN
IR
IR
IR
IR
1 USB 2
LINK
IP200UHD-TX
UPDATE
UPDATE
RS-232
Rx
Tx
Gnd
MULTICAST UHD
CH
CH SELECT
USB
LAN / PoE
LAN / PoE
HDMI IN
HDMI OUT
LOOP OUT
L / R
DC IN
24~56V
DC IN
24~56V
AUDIO
IN
L / R
To display device
