ACM200 USER MANUAL
27contact support@blustream.co.uk / support@blustream.com.au

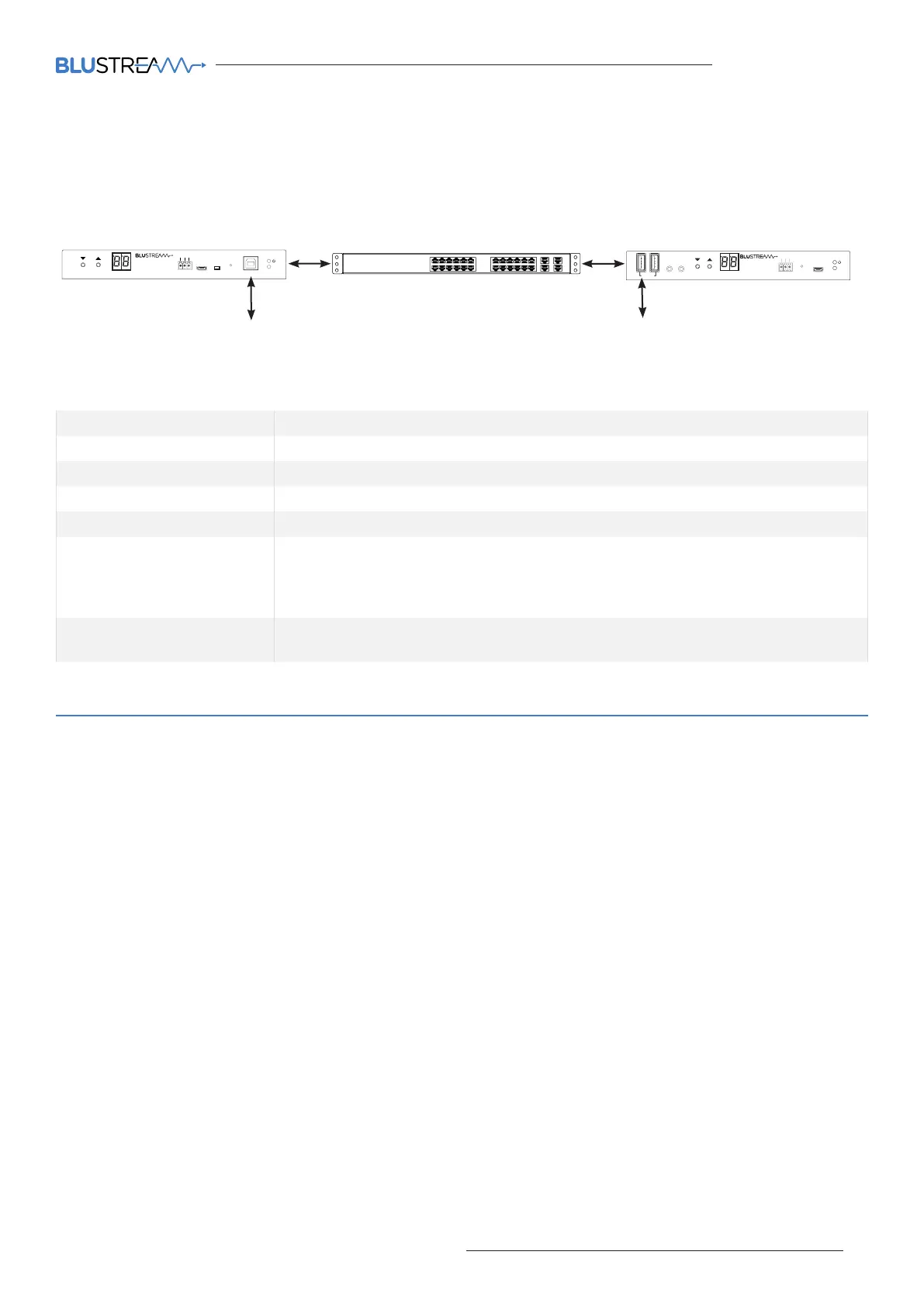

Fixed Routed USB / KVM
The fixed USB routing feature allows a fixed USB link between a Multicast Receiver/s and a Transmitter. This can be
useful for sending KVM signals between a users position to a centrally located PC, server, CCTV DVR / NVR etc.
IP200UHD-RX
MULTICAST UHD
LINK
RS-232
CH
CH SELECT
Rx
Tx
Gnd
OUT
OUT
IN
IN
IR
IR
IR
IR
1 USB 2
LINK
IP200UHD-TX
UPDATE
UPDATE
RS-232
Rx
Tx
Gnd
MULTICAST UHD
CH
CH SELECT
USB
LAN / PoE
LAN / PoE
HDMI IN
HDMI OUT
LOOP OUT
L / R
DC IN
24~56V
DC IN
24~56V
AUDIO
IN
L / R
PC, server, CCTV NVR / DVR etc
USB
USB
IP200UHD-RX
MULTICAST UHD
LINK
RS-232
CH
CH SELECT
Rx
Tx
Gnd
OUT
OUT
IN
IN
IR
IR
IR
IR
1 USB 2
LINK
IP200UHD-TX
UPDATE
UPDATE
RS-232
Rx
Tx
Gnd
MULTICAST UHD
CH
CH SELECT
USB
LAN / PoE
LAN / PoE
HDMI IN
HDMI OUT
LOOP OUT
L / R
DC IN
24~56V
DC IN
24~56V
AUDIO
IN
L / R
Keyboard / mouse
USB Specification USB2.0
Extension Over IP, Hybrid redirection technology
Distance 100m
Distance Ext. via Ethernet switch hub
Max Downstream Devices 5
Topology 1 to 1
1 to many exclusively (USBoIP)
1 to many simultaneously but limited number of USB devices (USBoIP)*
1 to many simultaneously Keyboard / Mouse (K/MoIP)
USB R/W Performance * R: 69.6 Mbps
W: 62.4 Mbps
USB Specifications:
* Benchmark Reference: Read / Write USB to SATA HD without Multicast system R: 161.6 Mbps / W: 161.6 Mbps
Fixed Routed CEC
CEC or Consumer Electronic Command is a HDMI embedded control protocol that allows for commands to be sent
from one HDMI device to another for simple actions such as: Power, Volume etc.
The Blustream Multicast system allows for the CEC channel within the HDMI link between two products (source and
sink) to communicate with eachother using the CEC protocol.
CEC must be enabled (this is sometimes referred to as 'HDMI Control') on both the source device and the display
device in order for the Multicast system to communicate the CEC commands over the Multicast link.
Please note: the Blustream Multicast system will only transport the CEC protocol transparently. It is advisable to
ensure that the source and sink devices will communicate eectively before committing to this control type with
Multicast. Should an issue be experienced with CEC communication between the source and sink directly, this will
be mirrored when sending through the Multicast system.
