Removal (see Fig. 7):
Unscrew the screws (1) from the cylinder cover (2) and dismount cylinder cover (2) with valve
plate (4)
Remove the gasket residues from the body of the compressor.
Reminder: Dont let any gasket residues fall into the compressor
Installation (see Fig. 7):
Attention: The conversion of the compressor from one type of valve plate to
another is not possible!
Apply a little oil to the lower valve plate gasket (5) install the upper valve plate gasket (3)
(metallic gasket) dry.
Pay attention to the correct installation position of the gaskets (3, 5) of the valve plate (4)
and of the cylinder cover (2).
Attention: Install the K type valve plate (Part no. 80010) only with the inscription
TOP facing upwards (see Fig. 7).
Tighten the cylinder cover screws (Pos. 1 in Fig.7) according to the sequence shown in Fig. 8,
observe the screw tightening torque (see Table on page 55)!

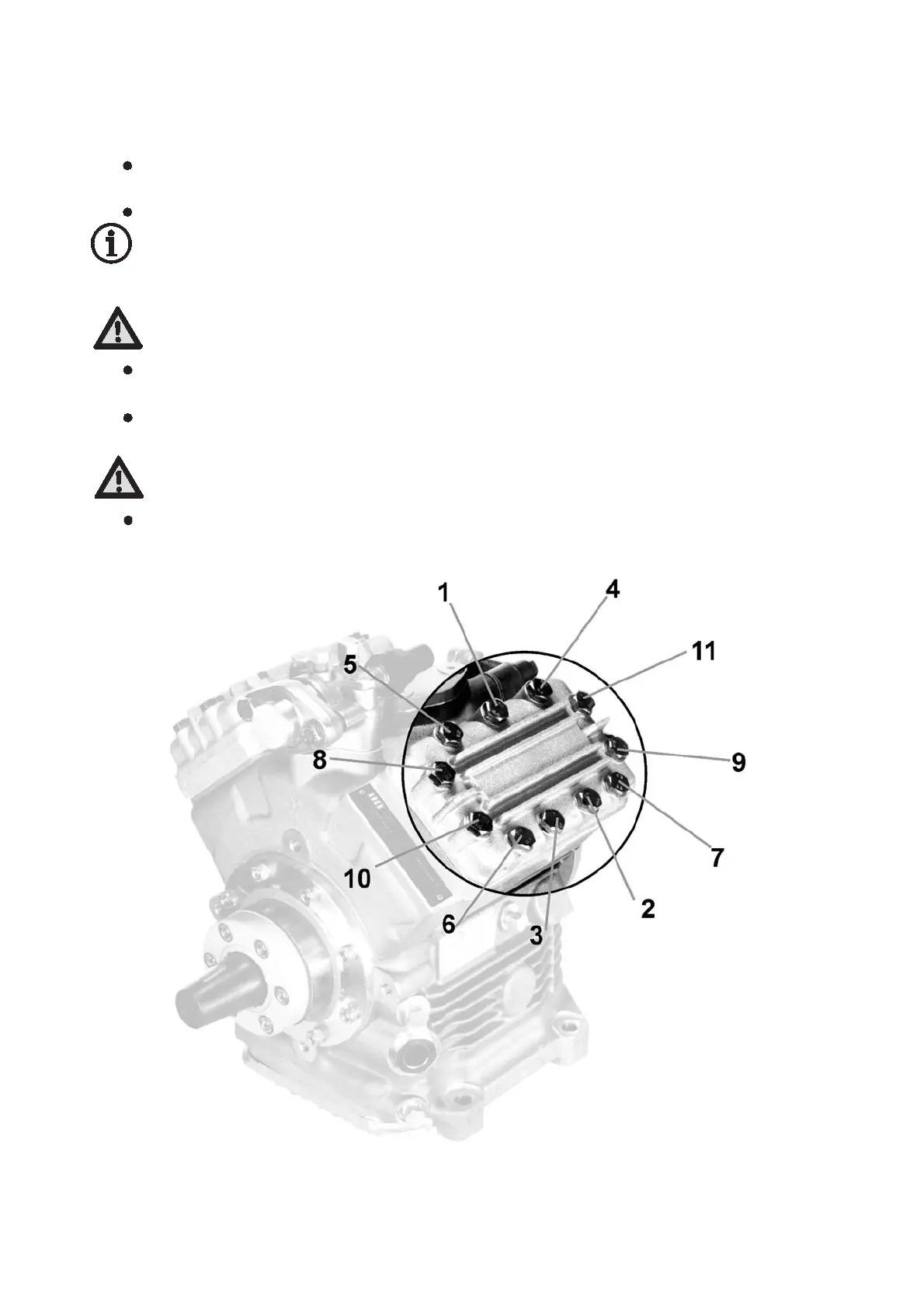

Fig. 8: Sequence for
tightening the cylinder
cover screws
09608-09.03-DGbFEI
- 22 -
