Step
Disassembly of the connecting rods from the crankshaft
Parts list position: 2100
Tools: Spanner 10 mm
Pos. in
parts list
Working course
Unscrew the hexagon head screws from the connecting rod cap.
Mark the connecting rod cap and remove it.
Push the piston and connecting rod upwards until the stop.
Remove the piston rings.
The same procedure should be applied for the remaining connecting rods
7
In order to prevent any mix-up during reassembly, mark the connecting rods and
caps belonging together clearly and in a wipe-resistant fashion.

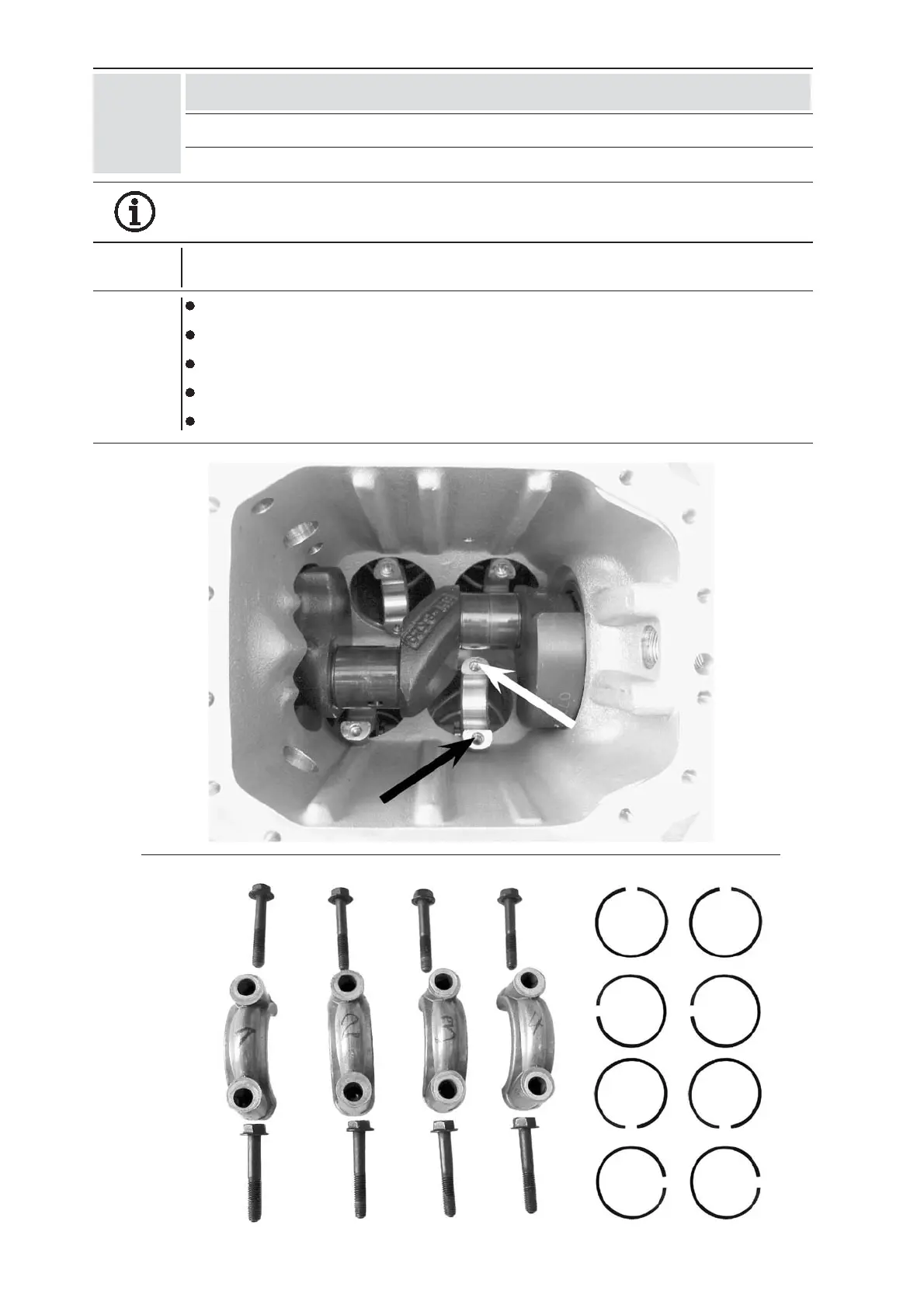

Fig. 18a
