-54-
09608-09.03-DGbFEI

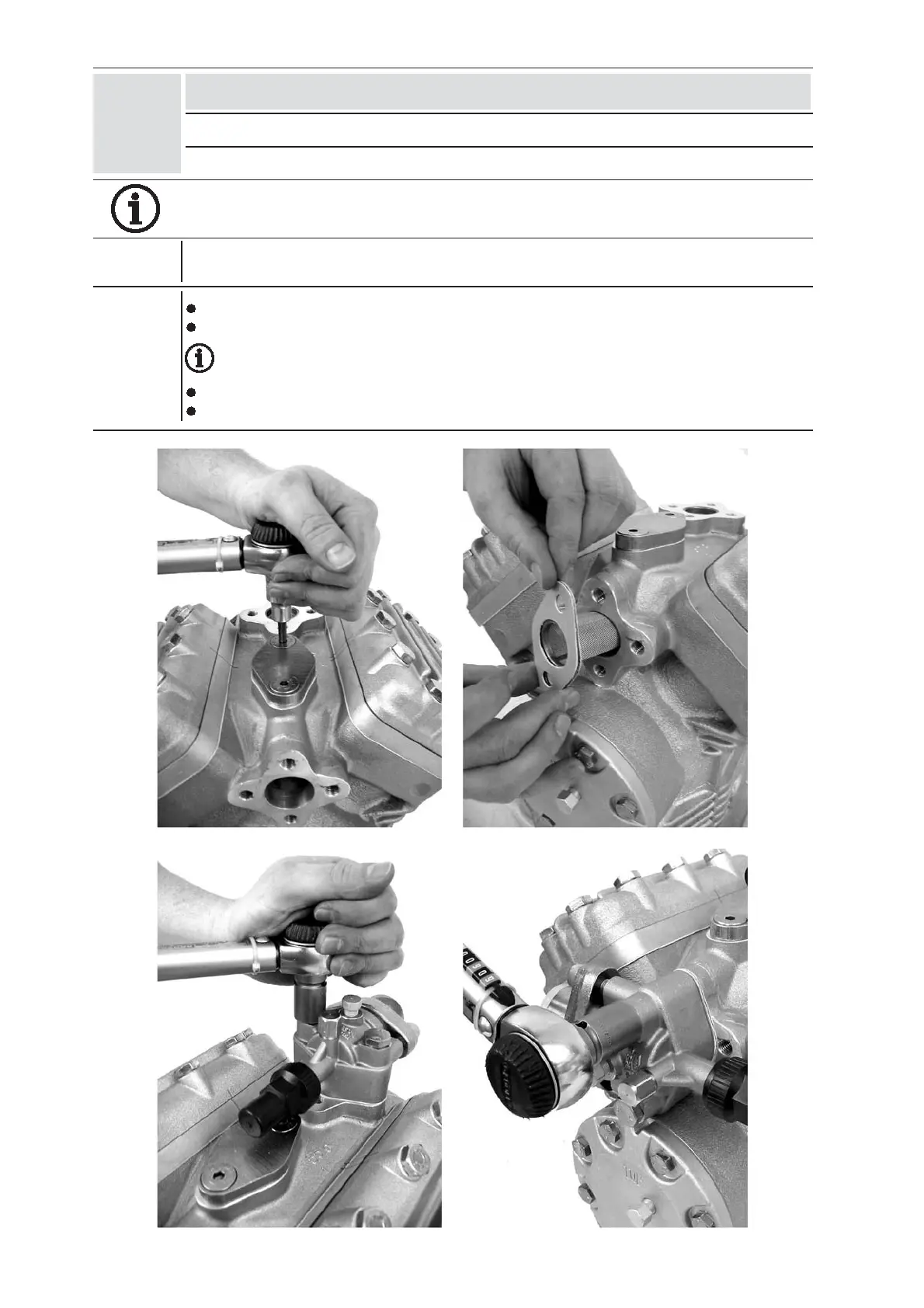

Fig. 41d
230, 210
220, 210
Installation of the shut-off valves and blind flanges
Parts list position: 2060, 2070, 232
Tools: Spanner 17 mm, Allen key 6 mm
Apply oil to gaskets; observe tightening torques (see Table on page 55)!
Use screws of correct length for the installation of the intermediate flanges!
Working course
Install the blind flange with O-ring and screws.
Tighten all screws; observe tightening torques!
Pos. in
parts list
232, 231
Put in the suction filter with the gasket
Install the shut-off valves (on the discharge and suction side) with gaskets and screws.
If there is an intermediate flange: Use screws of correct length.
13
Step
Fig. 41a Fig. 41b
Fig. 41c
