Pos. in
parts list
Working course
Fitting the shaft seal
Parts list position: 2010
Tools: Allen key 6 mm
Watch out! Avoid damages! Pay attention to the markings! Apply a little oil to the parts!
Observe tightening torques (see Table on page 55)!

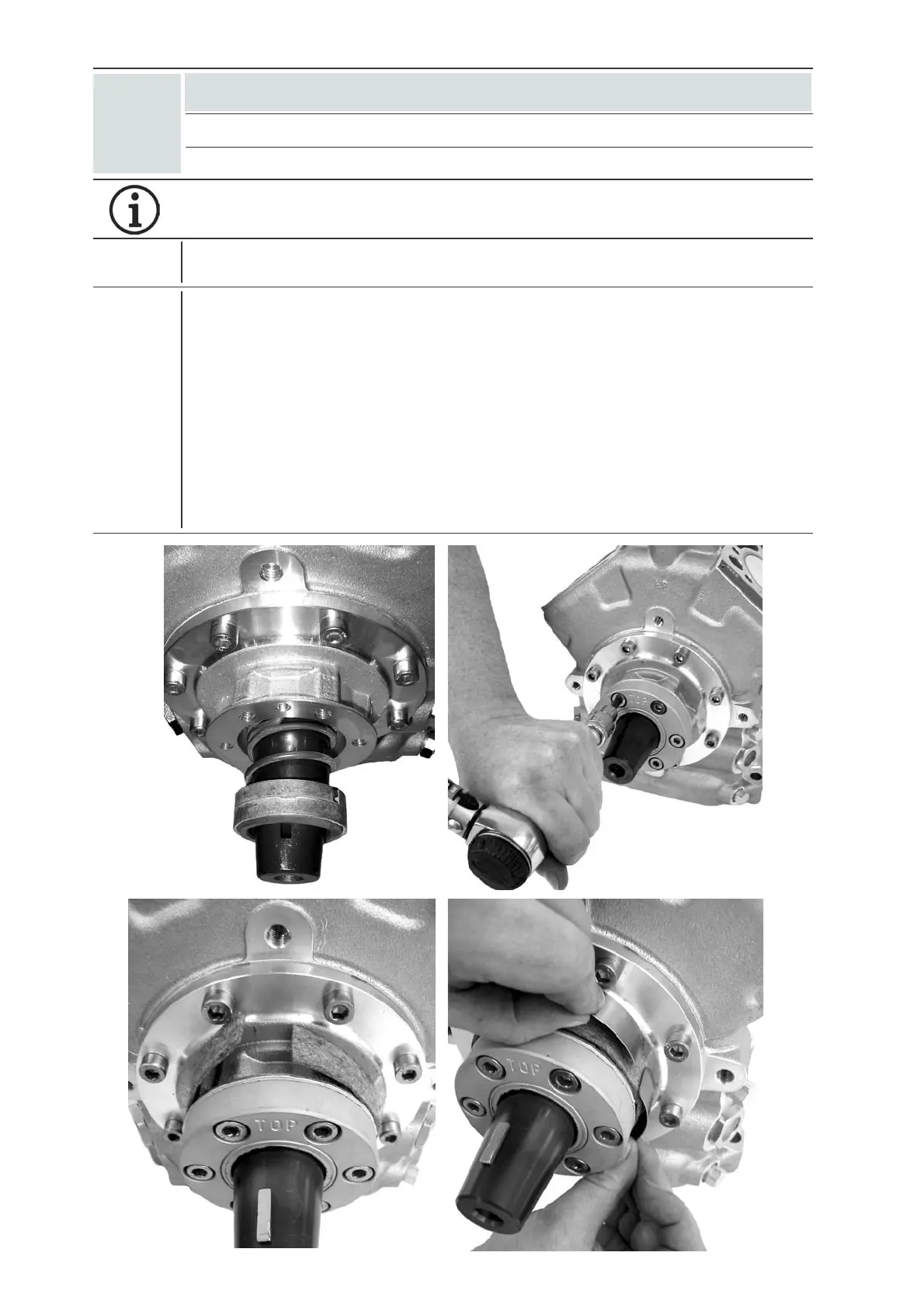

· Push the compression spring onto the crankshaft. Rotate the spring until the driving
catch is engaged in the crankshaft.
· Push the guide ring with O-ring and sliding ring onto the crankshaft. Rotate all parts
until the spring is engaged in the guide ring. Avoid scratches on the sliding ring!
· Install the shaft seal cover with the gasket. The inscription TOP must be at the top.
· Press the shaft seal cover onto the bearing flange and tighten the screws.
· Turn the crankshaft by hand (it now moves with a little more difficulty).
· Install the leak oil collection device (see also under Service-kits: Leak oil collection
device)
880
750
2110
Fig. 37a
Fig. 37c
Fig. 37d
Fig. 37b
-50-
09608-09.03-DGbFEI
Step
9
