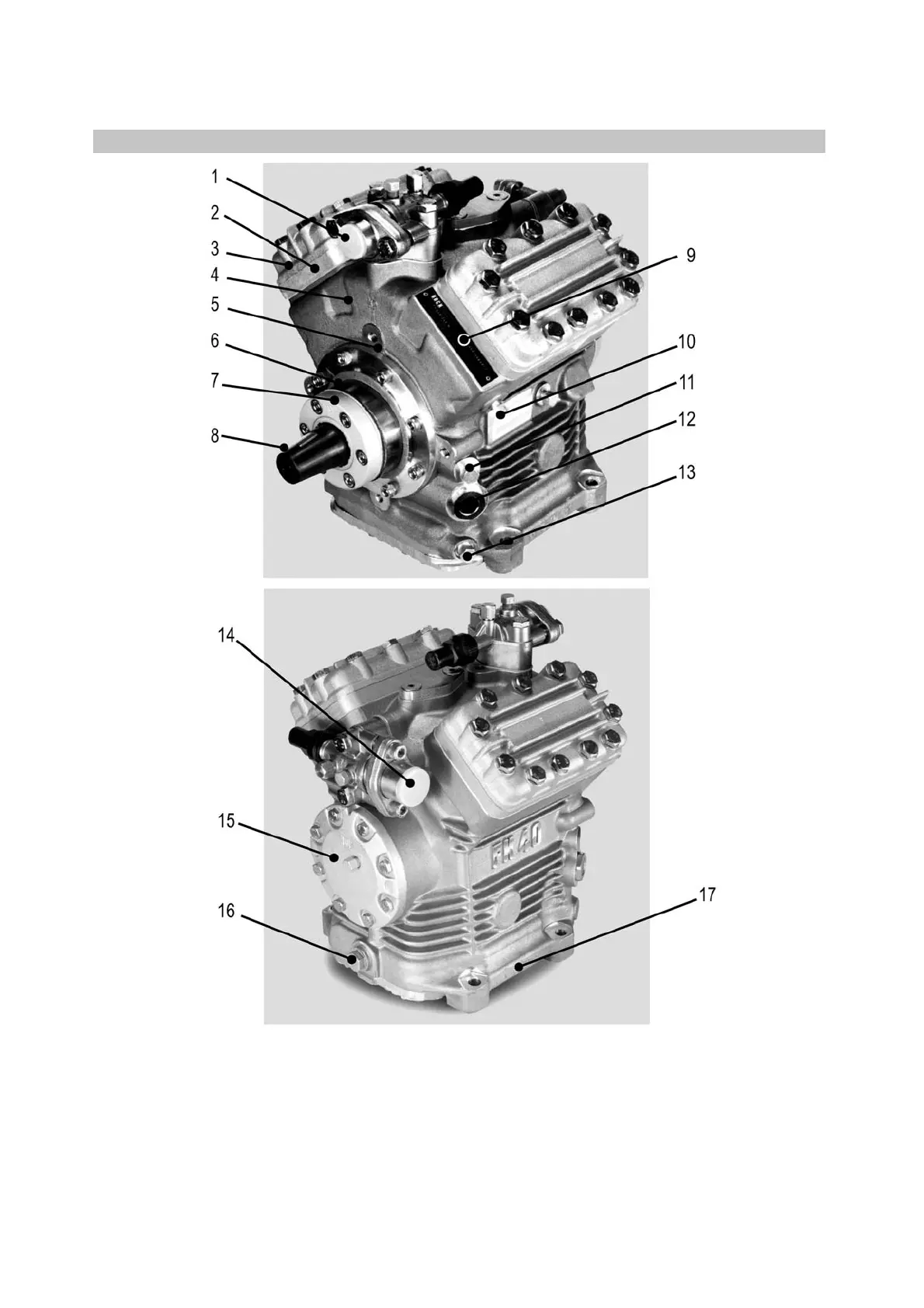

Main and functional parts
Figure 1
Figure 2
1. Discharge shut-off
2. Valve plate
3. Cylinder cover
4. Compressor casing
5. Locating hole for fitting magnetic clutch
6. Integrated leak oil collector
7. Shaft seal
8. Shaft end
9. Nameplate
10. Connection for heat protection thermostat
11. Oil filling plug
12. Sight glasses for oil (2x)
13. Oil drain plug
14. Suction shut-off valve
15. Oil pump
16. Oil drain plug / oil filter
17. Baseplate
09608-09.03-DGbFEI
- 7 -
