Pos. in
parts list
Working course

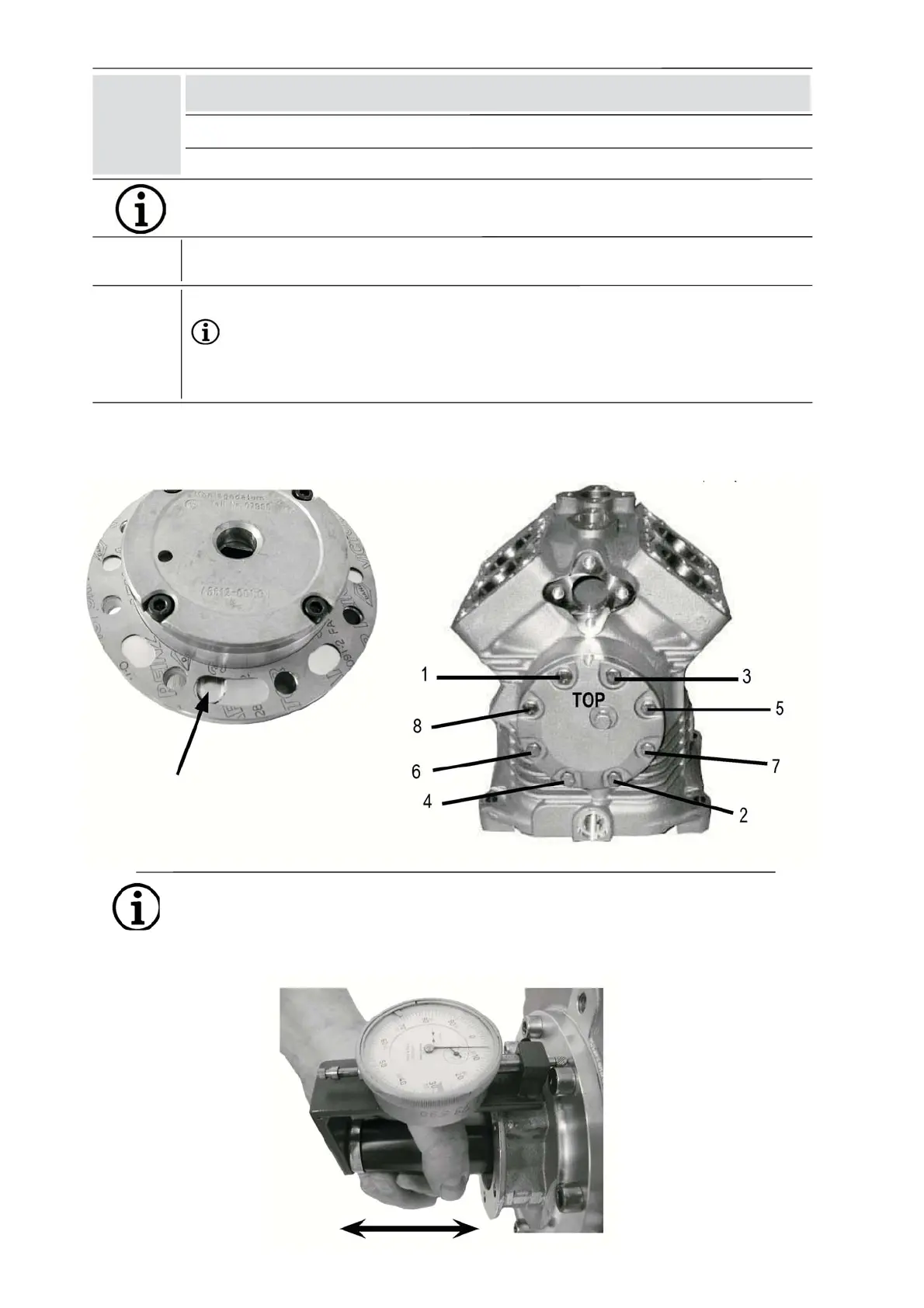

Installation of the oil pump
Parts list position: 2020
Tools: Spanner 13 mm
Observe the tightening torques (see Table on page 55)!
· Install the oil pump with oiled gasket into the body with the inscription TOP facing upwards!
Pay attention to the position of the holes in the gasket (Fig. 36a)!
· Tighten the oil pump screws crosswise
Pay attention to the tightening sequence of the oil pump screws (Fig. 36b)!
460, 470
40
Tightening sequence
for oil pump screws
Fig. 36a Fig. 36b
Fig. 36c
Adjust end play!
The end play of the crankshaft should be 0,1 mm. When parts of the driving unit of the
compressor have been repaired or replaced, an accurate measurement of the end play
is necessary. By means of shims an eventually necessary correction is possible.
09608-09.03-DGbFEI
-49-
Step
8
