BOCK FK40 Seroes - Removal of the Baseplate

Step
6
Removal of the baseplate
Parts list position: 20
Tools: Oil collection pan, spanner 13 mm
Pos. in
parts list
Working course
40
20, 30

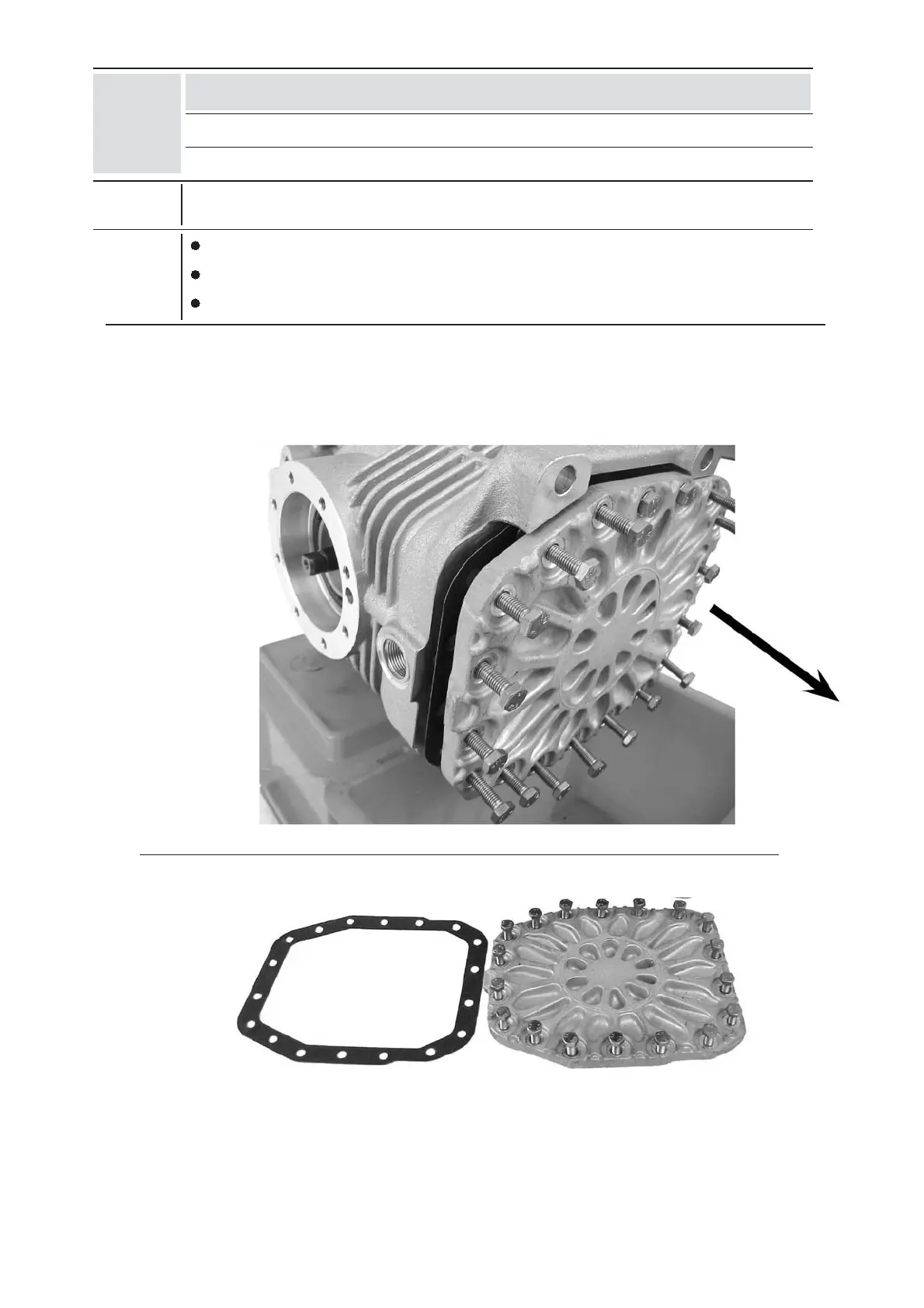

Place the compressor into the oil collection pan and turn it sideways
Unscrew the screws from the baseplate
Remove the baseplate and the gasket
Fig. 17a
Fig. 17b
