BOCK FK40 Seroes - Assembly of the Pistons; Connecting Rods

Pos. in
parts list
Working course
Assembly of the pistons / connecting rods
Parts list position: 2040
Tools: Seeger circlip plier Form C 8-13 mm

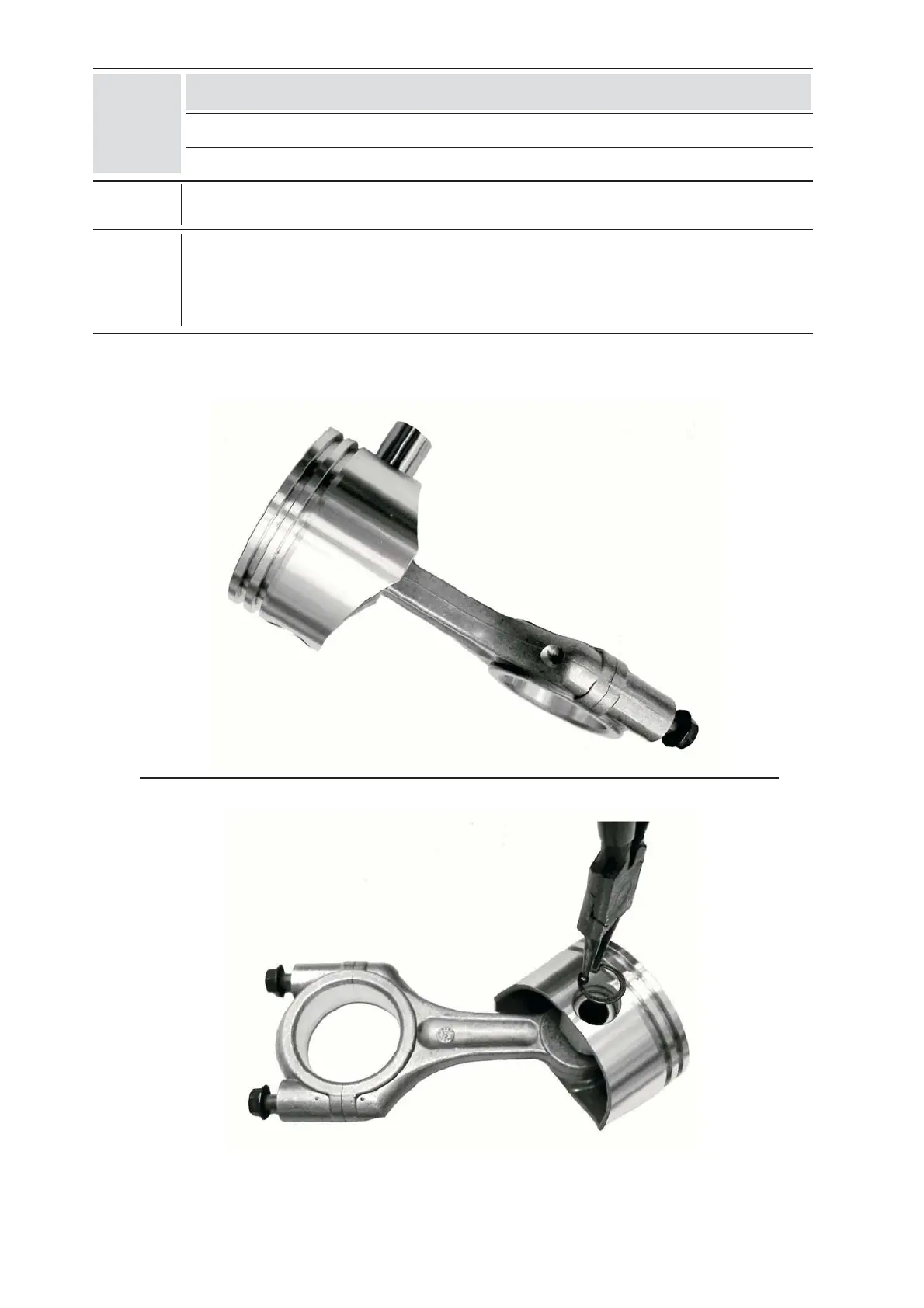

· Assembly the pistons with the connecting rods (in the reverse sequence of the disassembly
of compressor, Step 7)
· Insert the piston pins; use oil, if necessary. (see. Fig. 31a)
· Install seeger circlips on both sides of the piston pins (see. Fig. 31b)
270
280
Fig. 31a
Fig. 31b
-44-
09608-09.03-DGbFEI
Step
3
