Pos. in
parts list
Working course
Fitting the piston / connecting rod set
Parts list position: 2040
Tools: Spanner 10 mm
Take the markings of each part into account (see Disassembly, Step 7 on page 33)
· Remove the connecting rod cap from the preassembled connecting rod assembly and
mark it.
· Apply a little oil to the cylinder bore.
· Insert the piston / connecting rod assemblies from the opening in the baseplate into the
cylinder liners.
In the case of TK compressors pay attention to the correct assembly position
of the pistons!
· Install the oil scraper rings and the compression rings of the pistons, afterwards turn
them by 30°.
Fit with the marking TOP facing upwards
2100
2040
290, 300

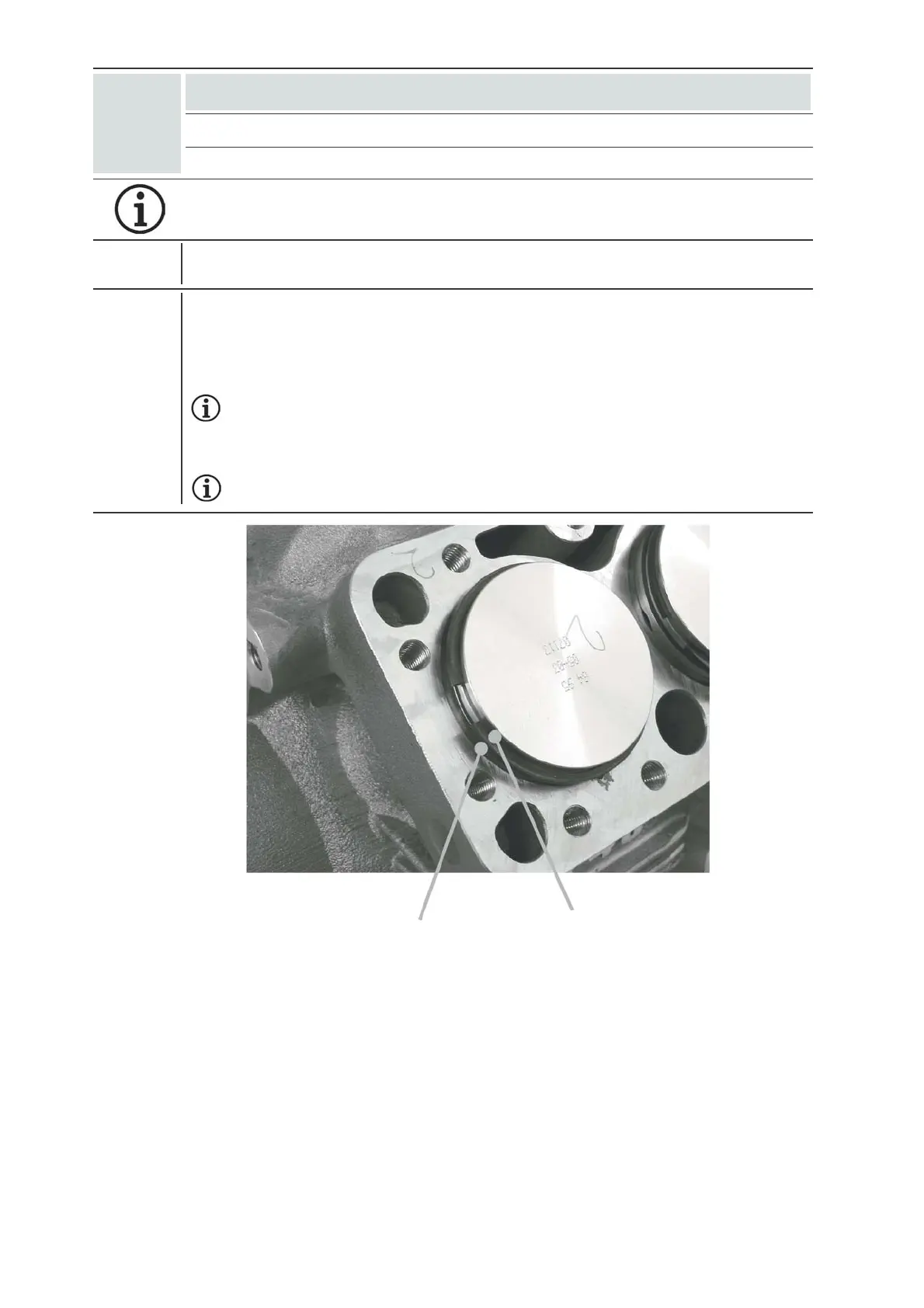

Fig. 32
Oil scraper ring
Compression ring
09608-09.03-DGbFEI
-45-
