FK 40/390 FK 40/470 FK 40/560 FK 40/655

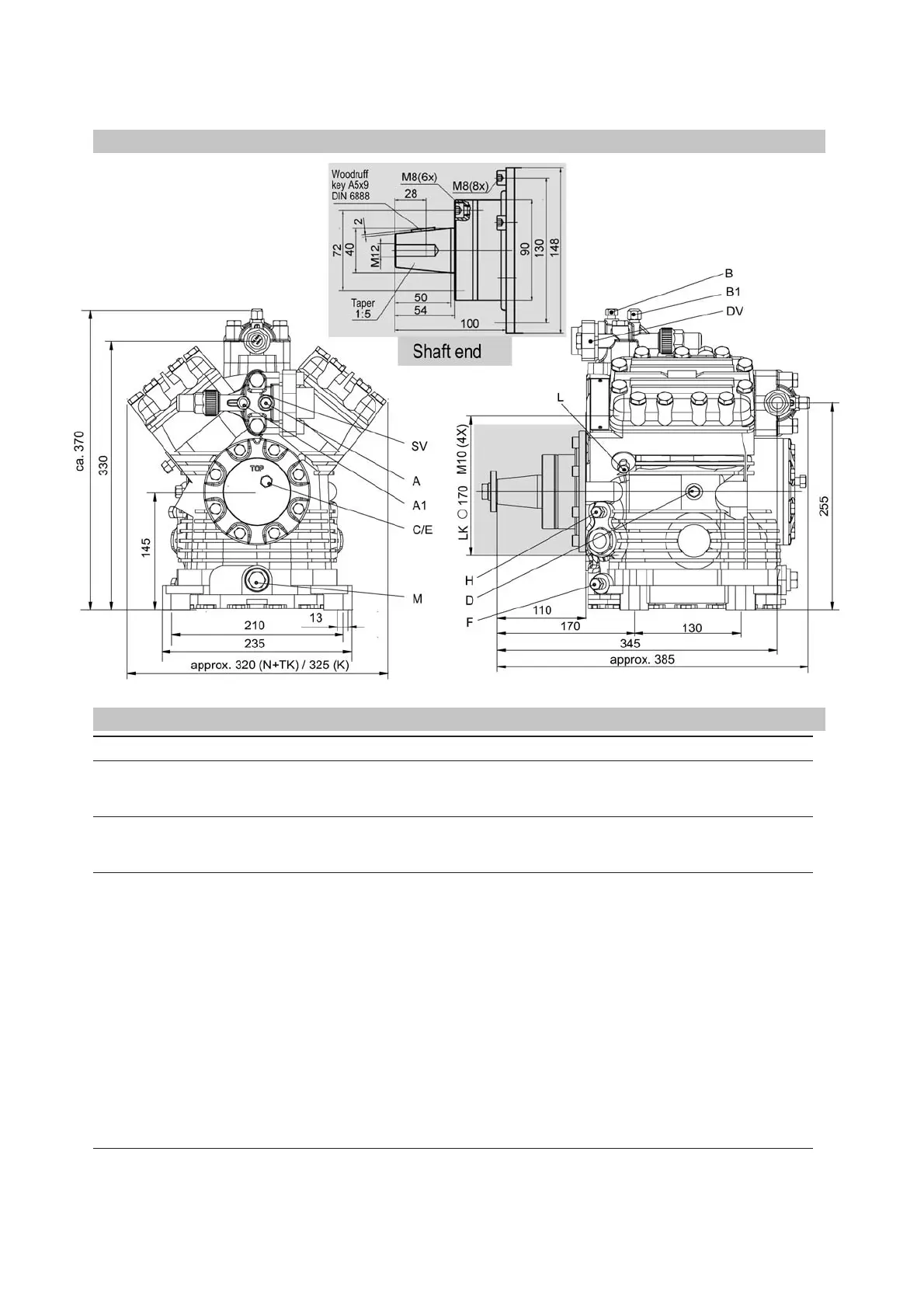

Dimension drawing
Connections
SV Suction shut-off valve, pipe dia.(L)*
DV Discharge shut-off valve,
pipe dia. (L)*
[mm]
[Inches]
[mm]
[Inches]
28 35 35 35
1
1
/8 1
3
/8 1
3
/8 1
3
/8
22 28 28 28
7 / 8 1
1
/8 1
1
/8 1
3
/8
A Suction side port, not lockable [Inches] 1/8" NPTF
A1 Suction side port, lockable [Inches] 7/16"UNF
B Pressure side port, not lockable [Inches] 1/8" NPTF
B1 Pressure side port, lockable [Inches] 7/16"UNF
C Oil pressure safety switch connection OIL [Inches] 1/8" NPTF
D Oil pressure safety switch connection LP [Inches] 1/8" NPTF
E Port for oil pressure gage [Inches] 1/8" NPTF
F Oil drain plug [mm] M 22x1.5
H Oil filling plug [mm] M 22x1.5
L Heat protection thermostat connection [Inches] 1/8" NPTF
M Oilfilter [mm] M 22x1.5
*L = Soldering connection
- 8 -
