Step
1
Asembly of compressor
Pos. in
parts list
Fitting the roller bearings
Parts list position: 2150
Tools: Pressing apparatus
Working course
· Heat the bearing flange / compressor casing for approx. 20 minutes in a pre-heated
(120°C) baking oven.
· Press the roller bearings onto the compressor casing and the front bearing flange.
WATCH OUT! Parts are hot! Use protective gloves!
Use tolerance ring if the bearing seat has a groove!

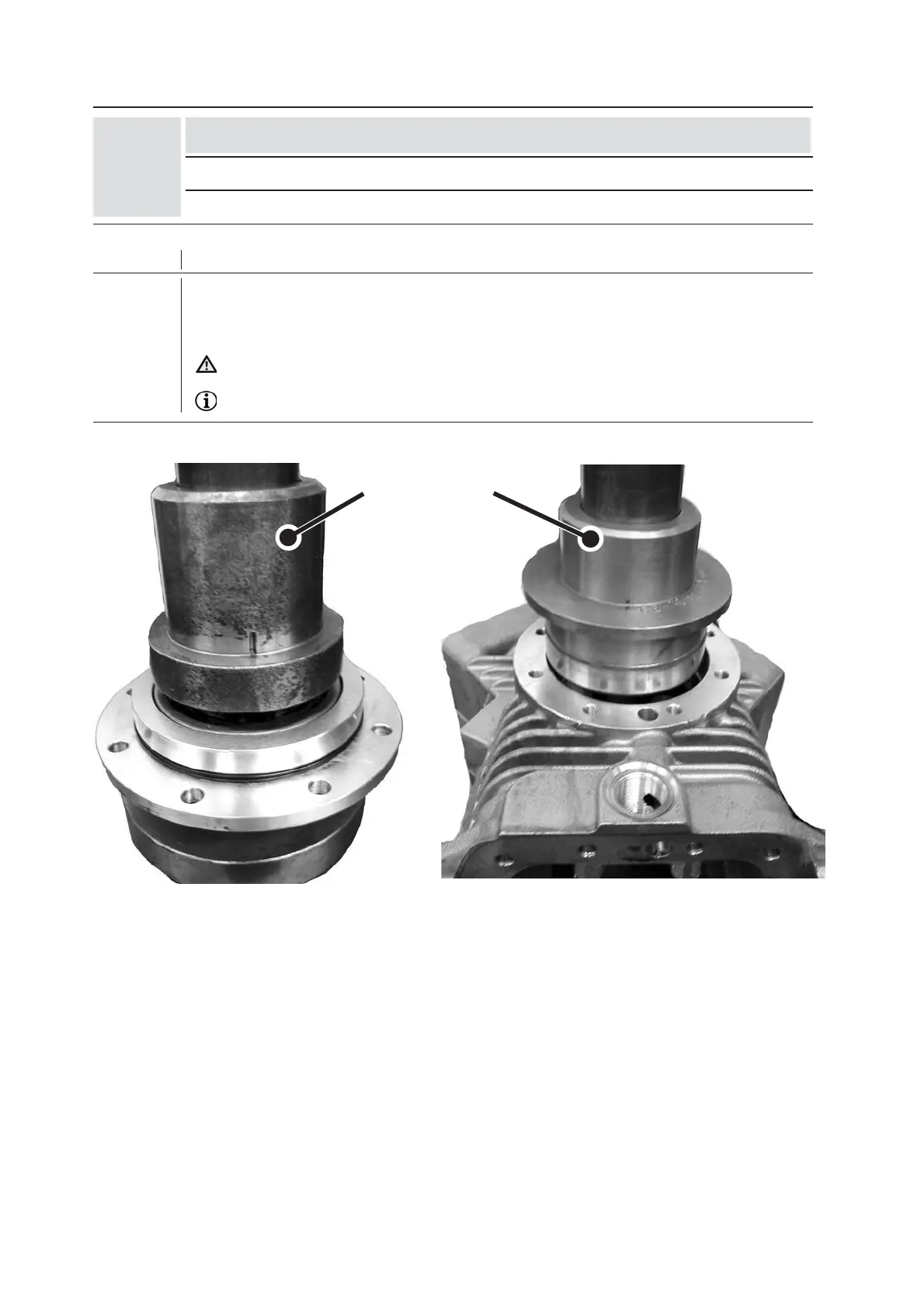

Pressing tool
Fig. 29a Fig. 29b
-42-
09608-09.03-DGbFEI
