BOCK FK40 Seroes - Removal of the Cylinder Cover and of the Valve Plates

Step
3
Removal of the cylinder cover and valve plates
Parts list position: 170, 2000 (N / TK-versions), 1940, 2900 (K Version)
Tools: Spanner 17 mm
In order to prevent any mix-up during reassembly, mark the cylinder cover and the
valve plates belonging together clearly and in a wipe-resistant fashion.
Pos. in parts list
N / TK K
180
170, 70
60, 50
1950
1940, 1930
1920, 1910
Working course
Unscrew the cylinder cover screws
Remove the cylinder cover and the upper gasket of the valve plate
Remove the valve plate and the lower gasket of the valve plate

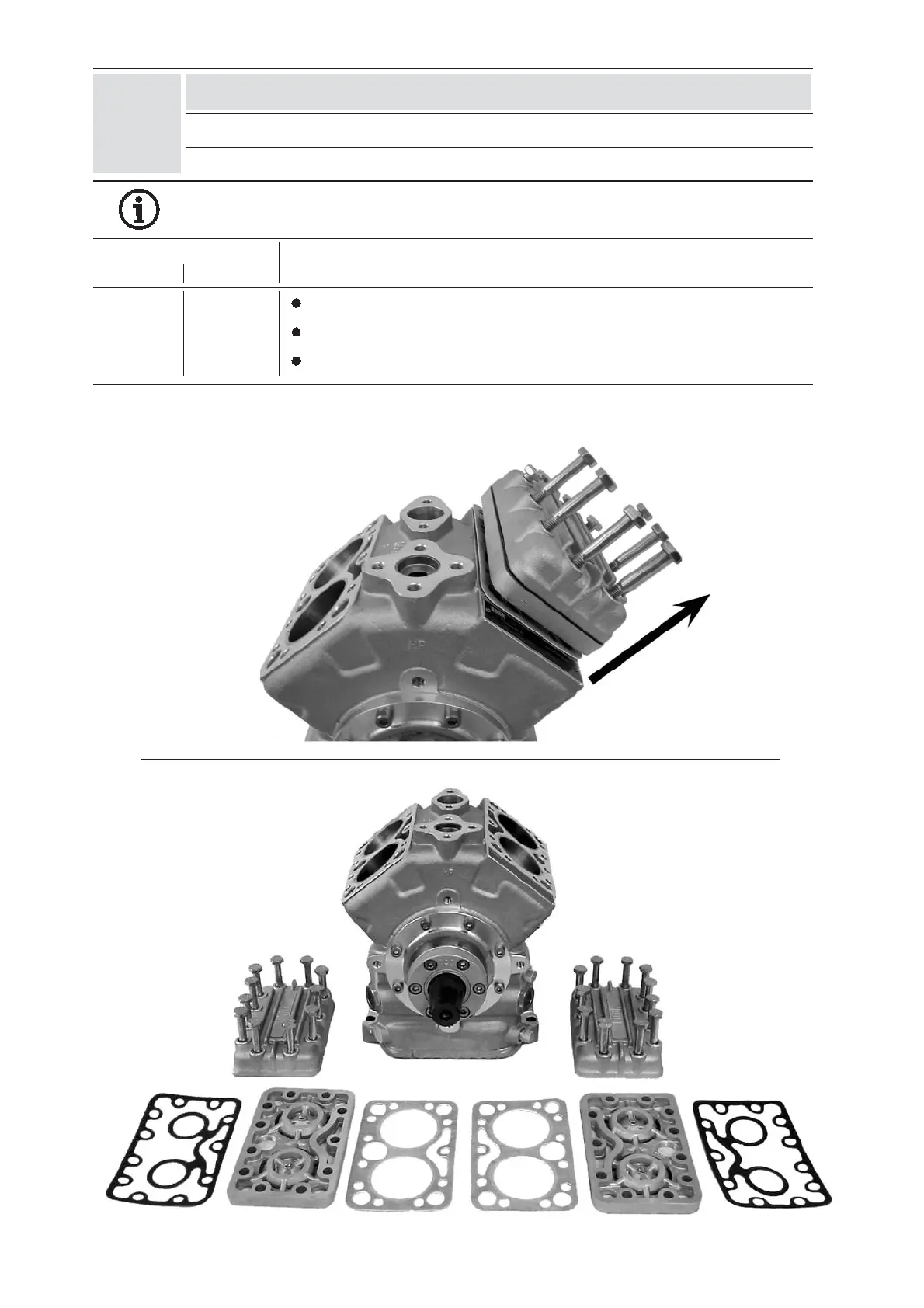

Fig. 14a
Fig. 14b
