Step
1
Removal of all shutt-off valves and blind flanges
Parts list position: 2060, 2070, 232
Tools: Spanner 17 mm, Allen key 6 mm
Pos. in
parts list
Working course
220
330, 210
230, 210
233
232, 231
Unscrew the fixing screws of shut-off valves
Remove the shut-off valves and the gaskets
Remove the suction filter and the gasket
Remove the screws from the blind flange
Remove the blind flange and the O-ring.

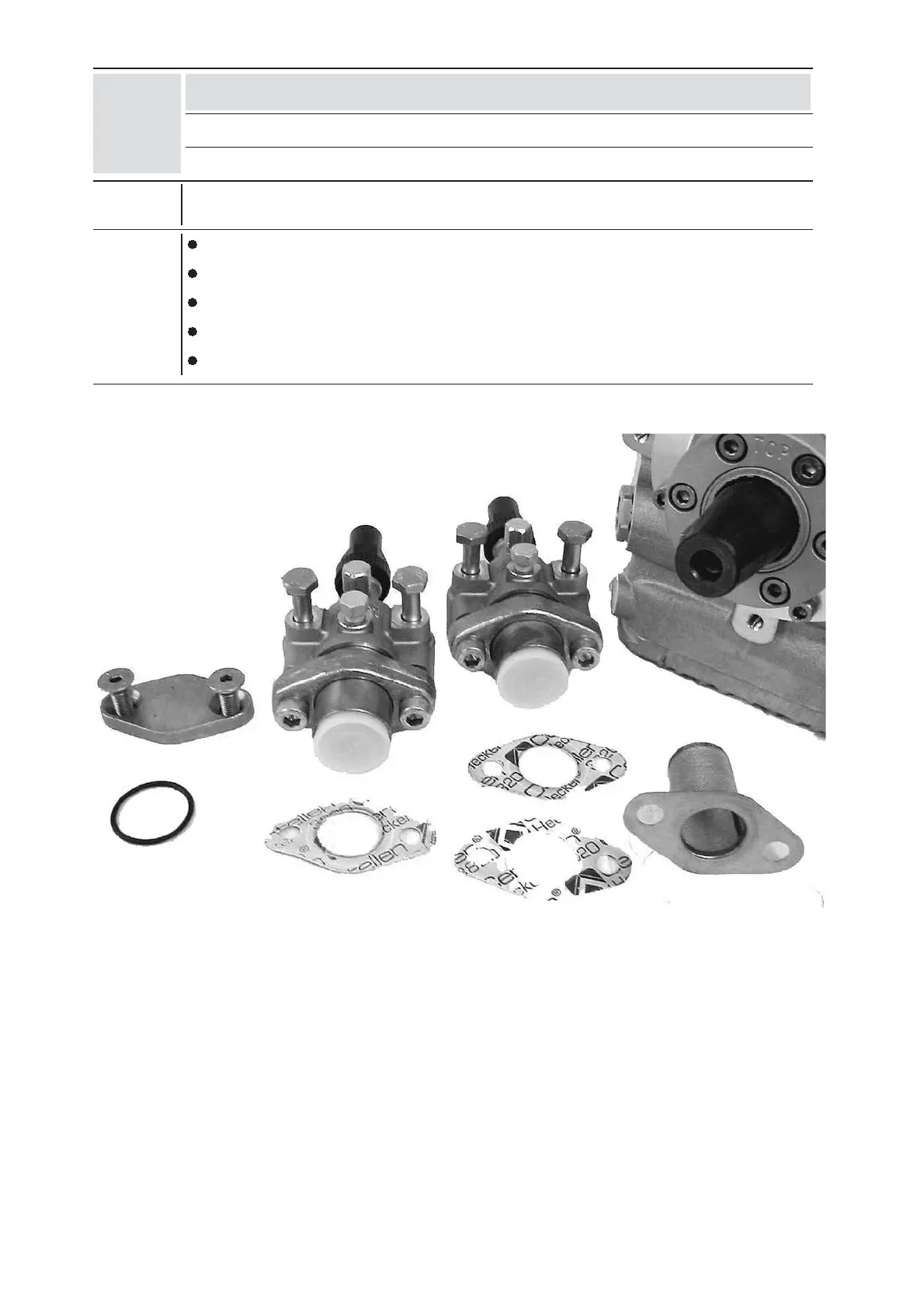

Fig. 12
09608-09.03-DGbFEI
- 27 -
