BOCK FK40 Seroes - Installation of the Baseplate

- 51 -
Installation of the baseplate
Parts list position: 20
Tools: Spanner 13 mm
Observe the tightening torque (see Table on page 55) !
20, 30, 40
Working course

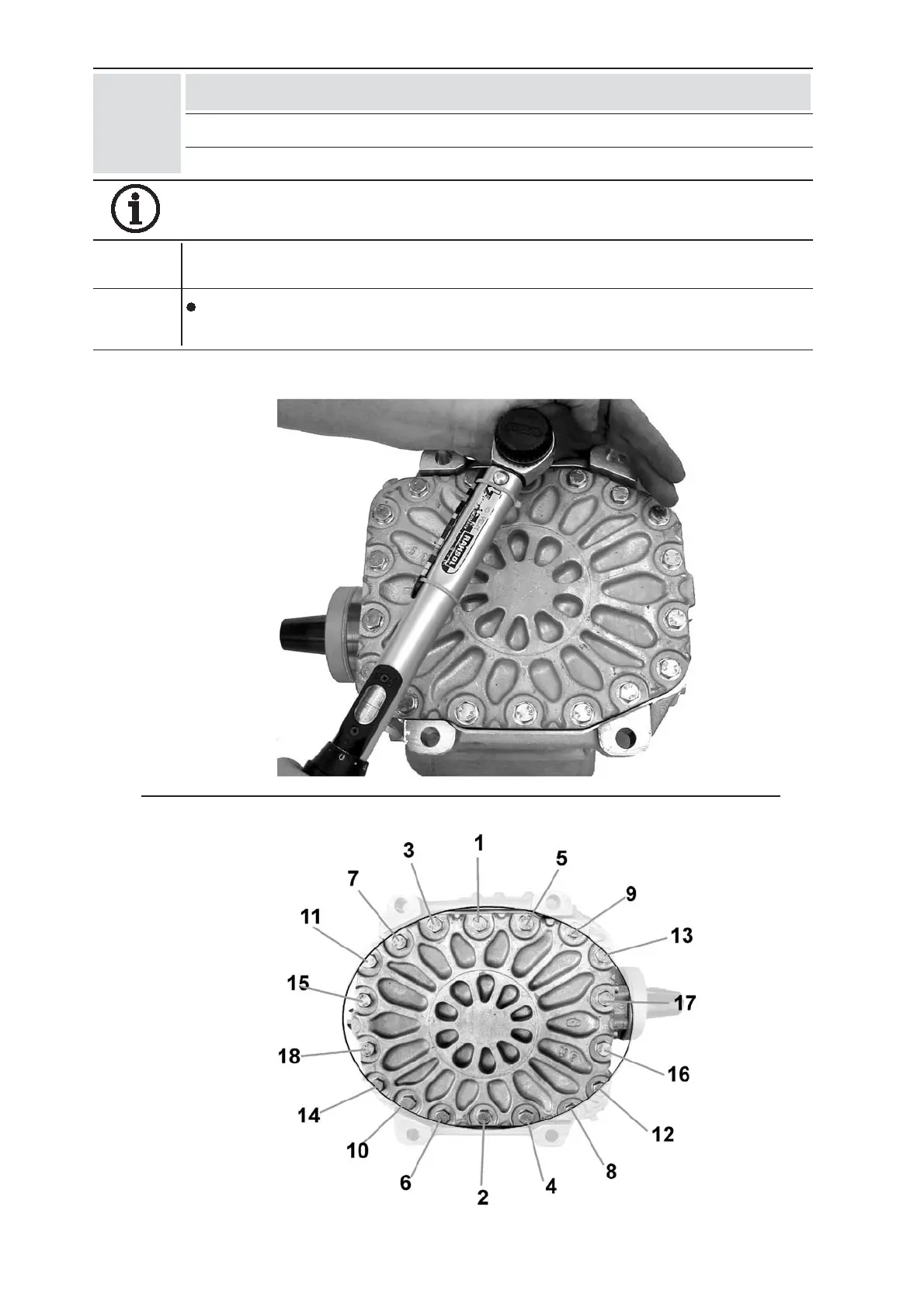

Fig. 38a
Fig. 38b
Tightening sequence of
baseplate screws
09608-09.03-DGbFEI
Install the baseplate with gasket and tighten the M8x30 screws.
Pay attention to the tightening sequence of the baseplate screws!
Pos. in
parts list
10
Step
