BOCK FK40 Seroes - Removal of the Pistons and Connecting Rods

Step
10
Removal of the pistons and connecting rods
Parts list position: 2040
Tools: Seeger circlip plier From C 8-13 mm
Pos. in
parts list
Working course
Mark the piston and the cylinder bore belonging together
Remove the piston / connecting rod in direction of baseplate
Remove the seeger circlip of the piston pins
Push the piston pins out of the pistons and remove pistons
In order to prevent mix-ups, fasten the connecting rod
caps to the connecting rods again.
280
270

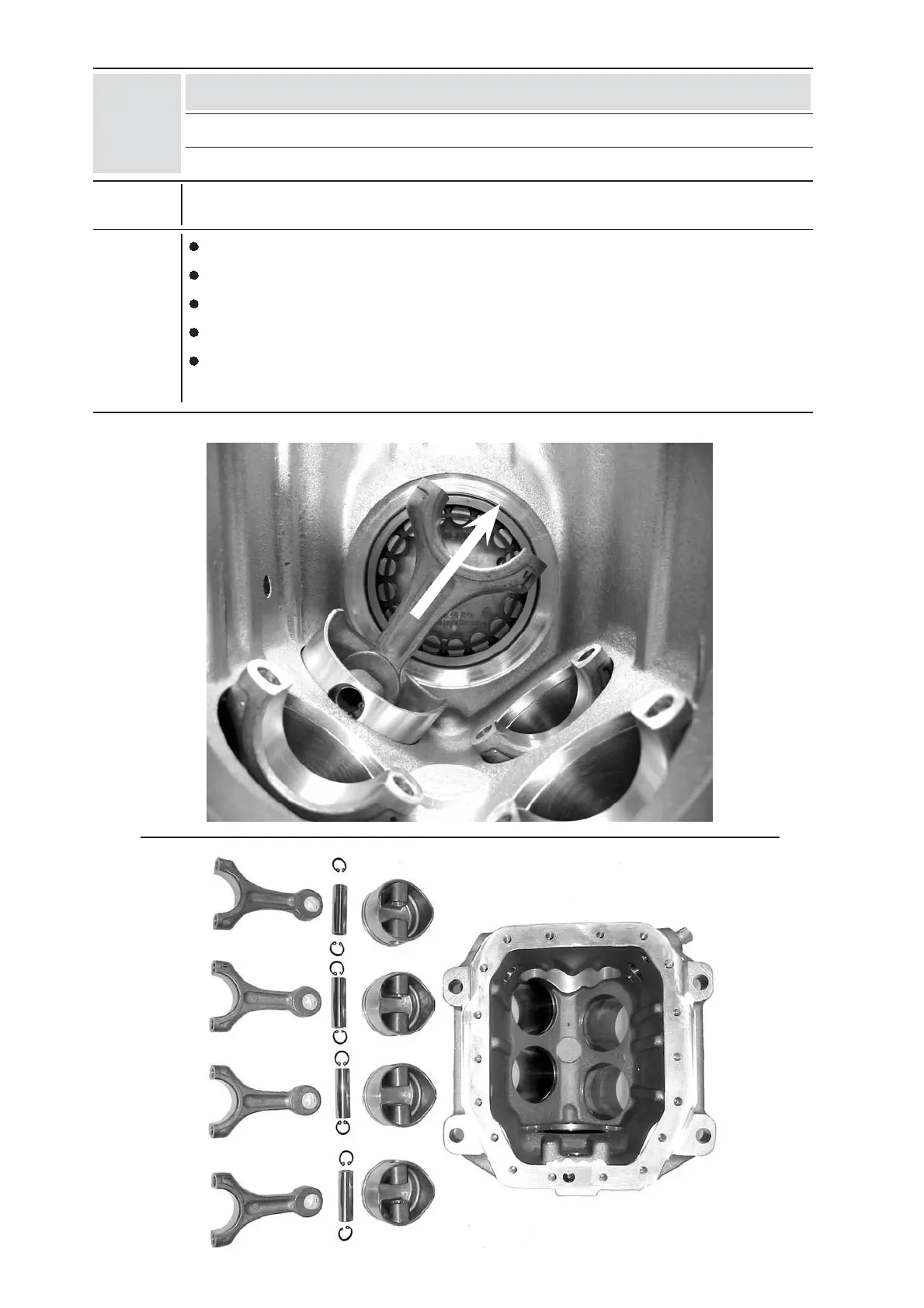

Fig. 21a
Fig. 21b
