Fig. 30a
Fig. 30b
Fig. 30c
Fig. 30d
Pos. in
parts list

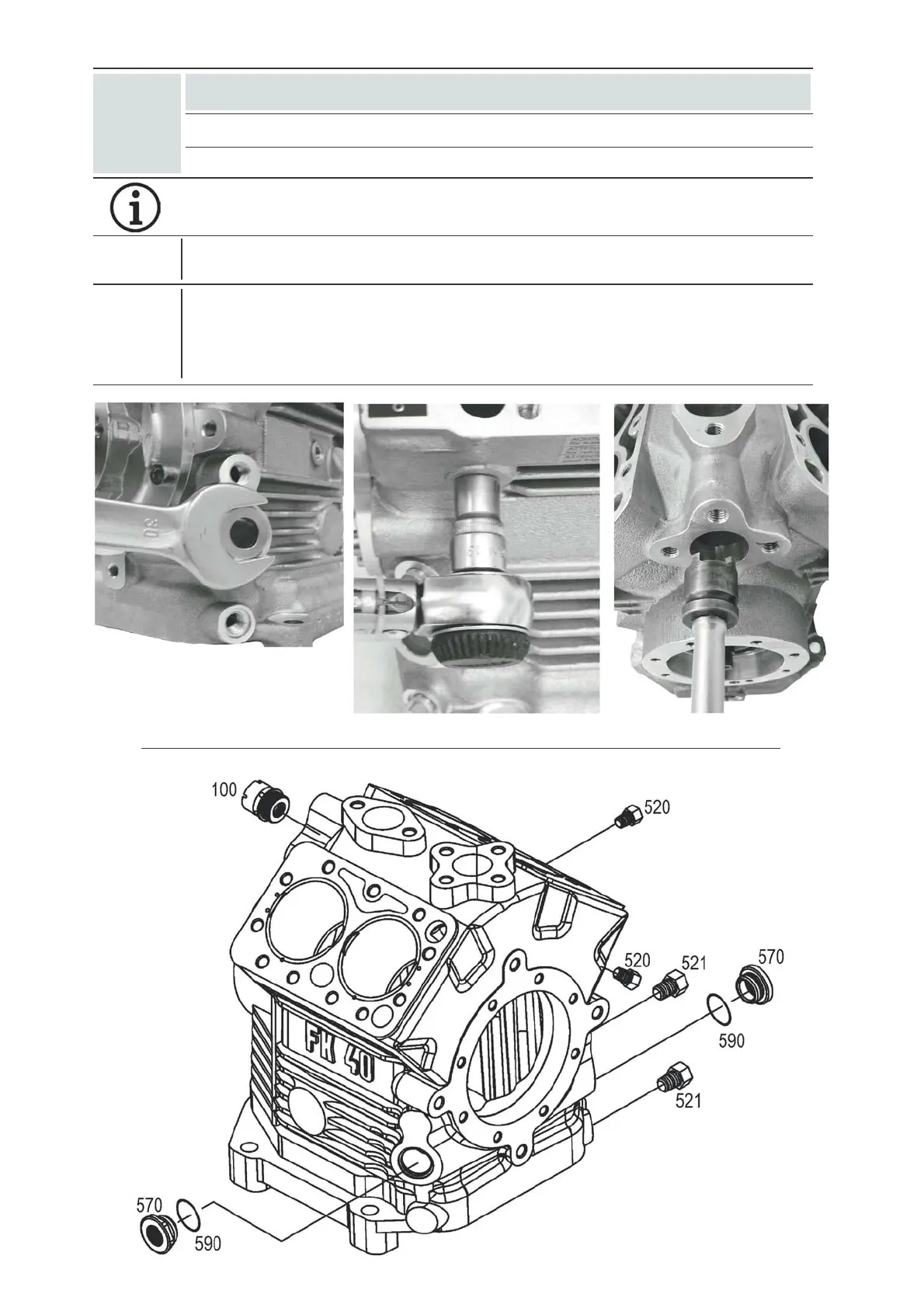

Fitting the sight glass, plugs, safety valve
Parts list position: -
Tools: Spanner 13, 14, 30 or 36 mm, Bock special tool, Part no. 09524
Observe the screw tightening torques (see Table on page 55)!
Working course
· Screw on the sight glass with oiled O-ring to the compressor body.
· Screw on the 1/4" NPTF plugs.
· Screw on the 1/8 NPTF plugs.
· Screw on the safety valve by means of the Bock special tool into the suction channel.
570, 590
521
520
100
09608-09.03-DGbFEI
-43-
