Bosch 5312 - Page 9

38
30
29
31
22 19

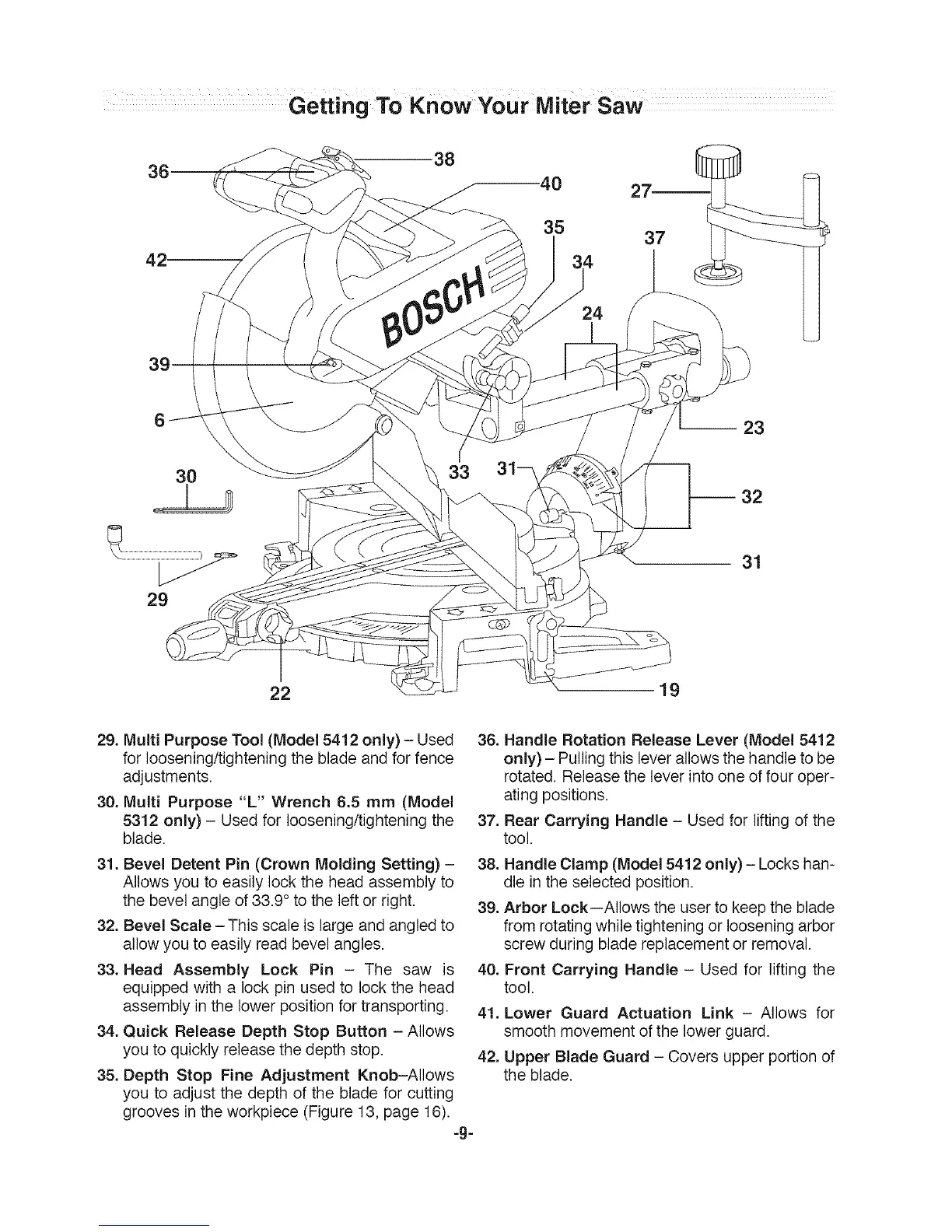

29. Multi Purpose Tool (Model 5412 only) - Used
for loosening/tightening the blade and for fence
adjustments.
30. Multi Purpose "L" Wrench 6.5 mm (Model
5312 only) - Used for loosening/tightening the
blade.
31. Bevel Detent Pin (Crown Molding Setting) -
Allows you to easily lock the head assembly to
the bevel angle of 33.9 ° to the left or right.
32, Bevel Scale -This scale is large and angled to
allow you to easily read bevel angles.
33. Head Assembly Lock Pin - The saw is
equipped with a lock pin used to lock the head
assembly in the lower position for transporting.
34. Quick Release Depth Stop Button - Allows
you to quickly release the depth stop.
35. Depth Stop Fine Adjustment Knob-Allows
you to adjust the depth of the blade for cutting
grooves in the workpiece (Figure 13, page 16).
-g-
36.
37.
38.
39.
Handle Rotation Release Lever (Model 5412
only) - Pullingthis lever allows the handle to be
rotated. Release the lever into one of four oper-
ating positions.
Rear Carrying Handle - Used for lifting of the
tool.
Handle Clamp (Model 5412 only) - Locks han-
dle in the selected position.
Arbor Lock--Allows the user to keep the blade
from rotating while tightening or loosening arbor
screw during blade replacement or removal.
40. Front Carrying Handle - Used for lifting the
tool.
41. Lower Guard Actuation Link - Allows for
smooth movement of the lower guard.
42, Upper Blade Guard - Covers upper portion of
the blade.
