Wiring Diagrams
21.5 Two-Stage, Single-Phase Unit with CT Motor and Electric Heat

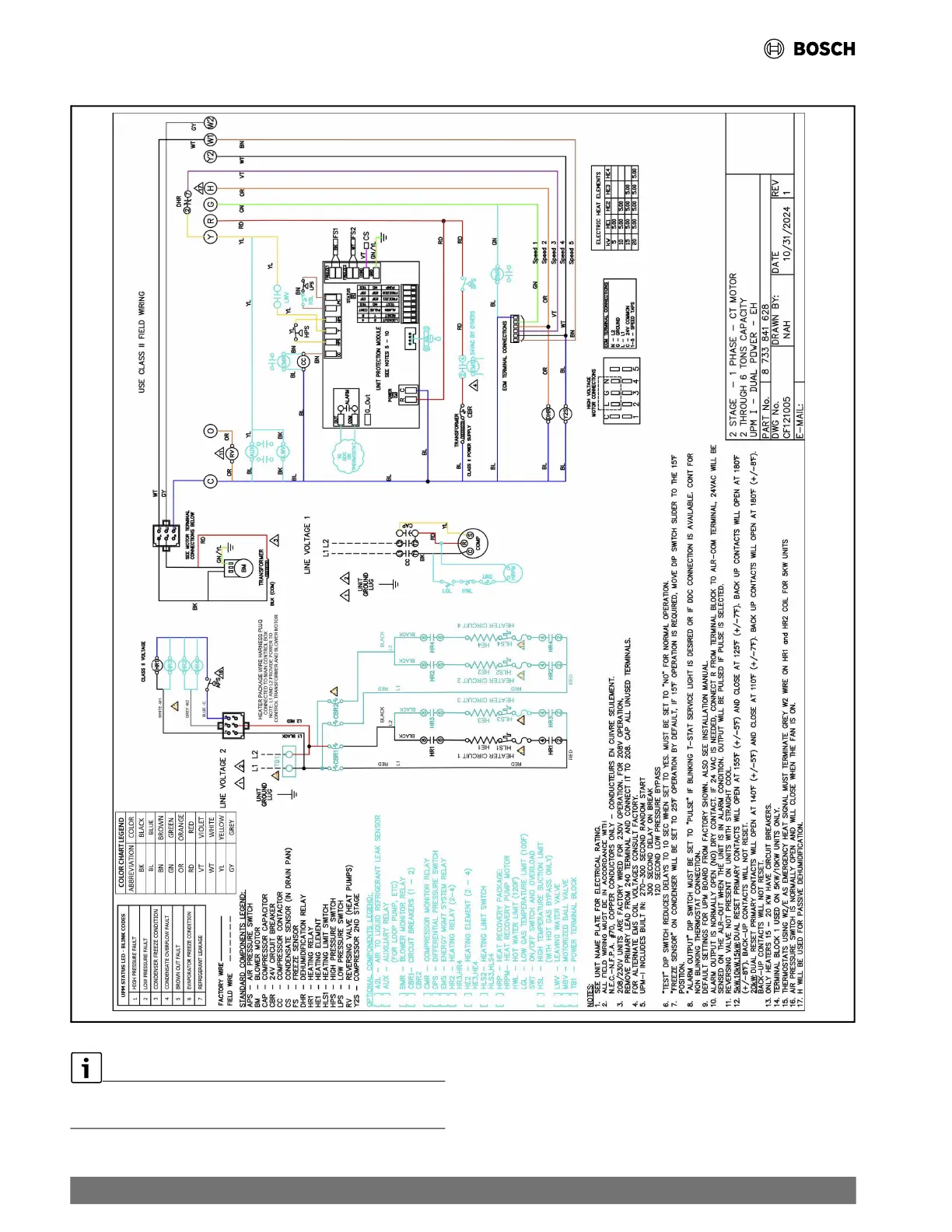

Fig. 33 Two-Stage, Single-Phase Unit with CT Motor and Electric Heat
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
