Bosch CF Series - Two-Stage, Three-Phase, Standard Unit with CA Motor

Wiring Diagrams
21.10 Two-Stage, Three-Phase, Standard Unit with CA Motor

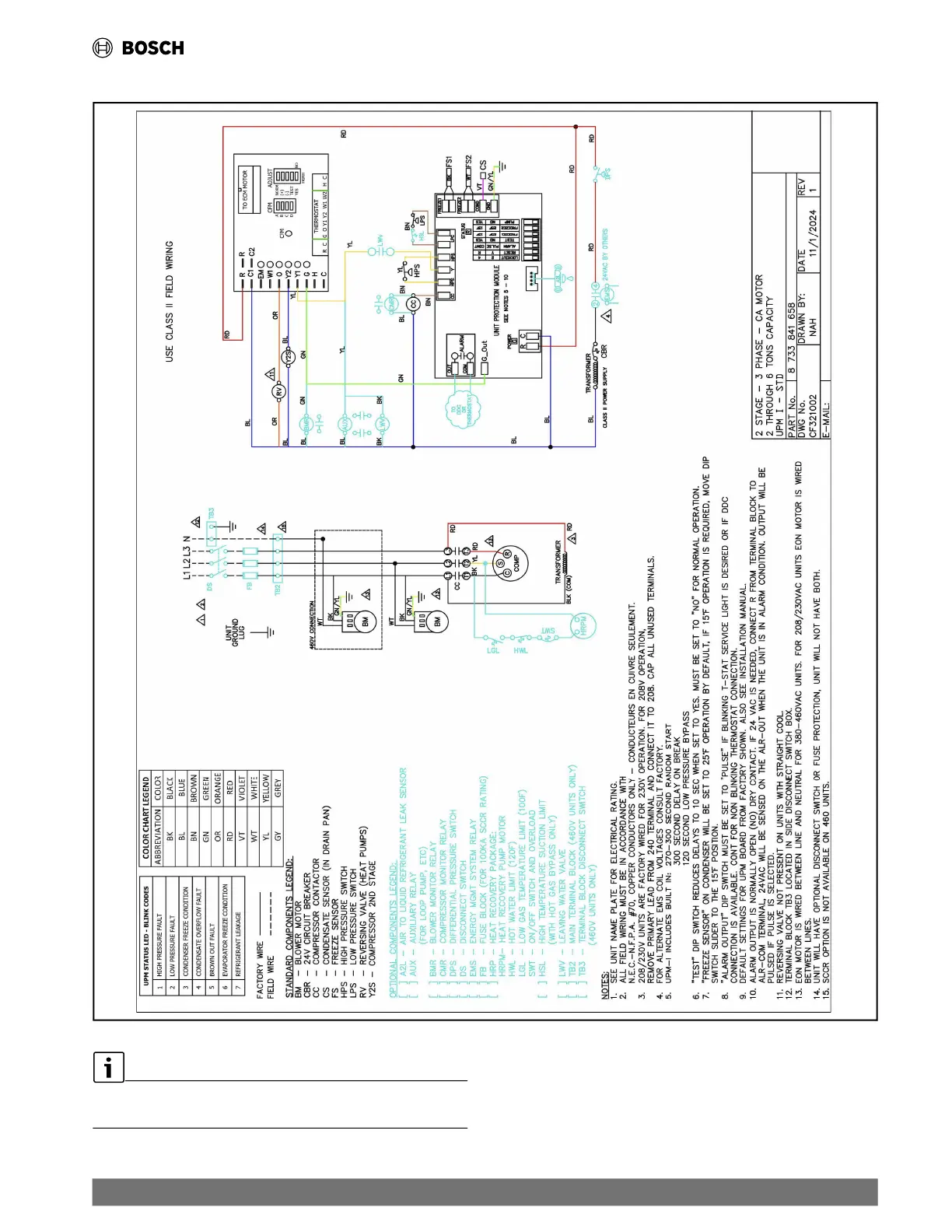

Fig. 38 Two-Stage, Three-Phase, Standard Unit with CA Motor
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
| 87
CF Series Heat Pumps — 8733846299 (2024/11)
