Bosch CF Series - Two-Stage, Three-Phase, Standard Unit with CT Motor

Wiring Diagrams
21.9 Two-Stage, Three-Phase, Standard Unit with CT Motor

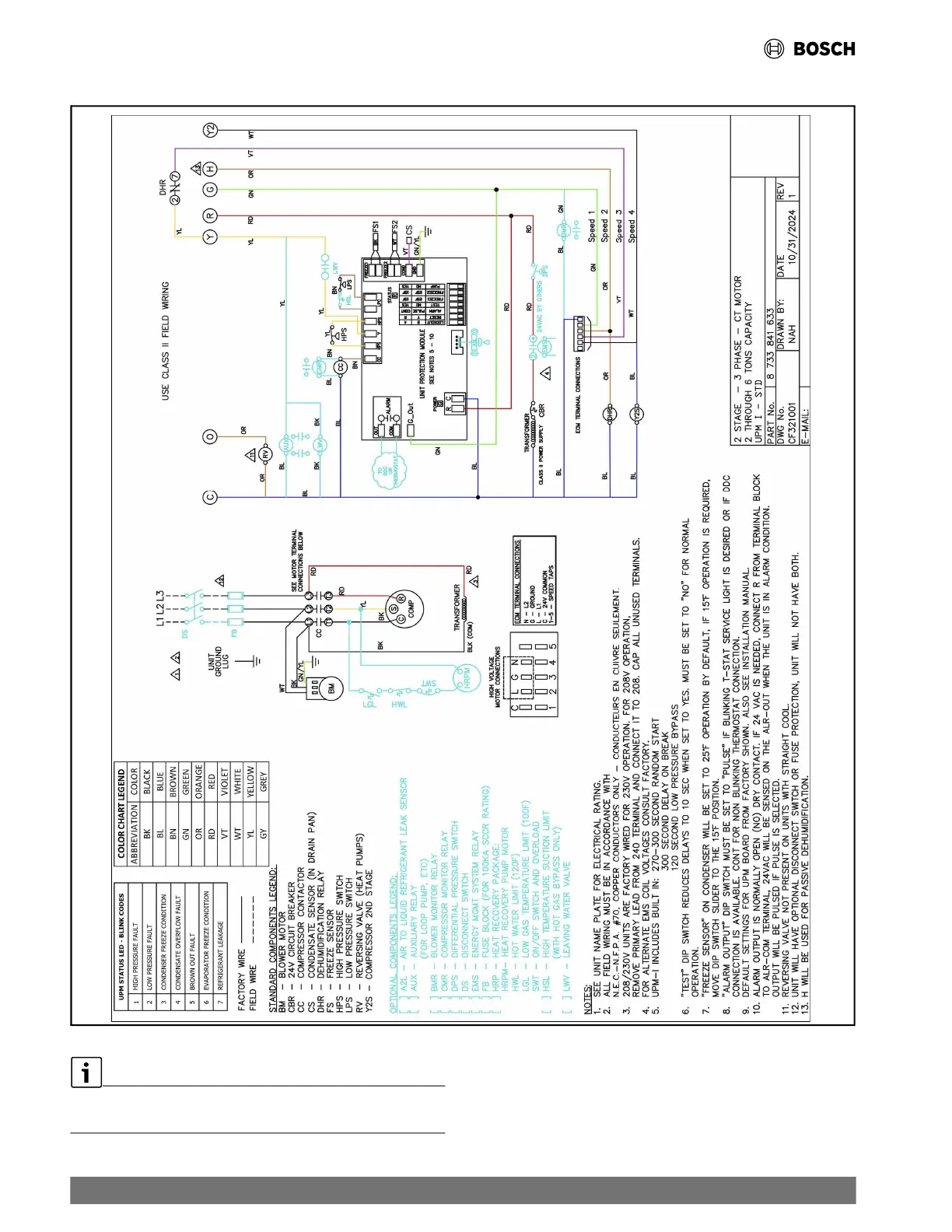

Fig. 37 Two-Stage, Three-Phase, Standard Unit with CT Motor
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
86 |
CF Series Heat Pumps — 8733846299 (2024/11)
