Bosch CF Series - Two-Stage, Single-Phase Unit with CA Motor and Electric Heat

Wiring Diagrams
21.6 Two-Stage, Single-Phase Unit with CA Motor and Electric Heat

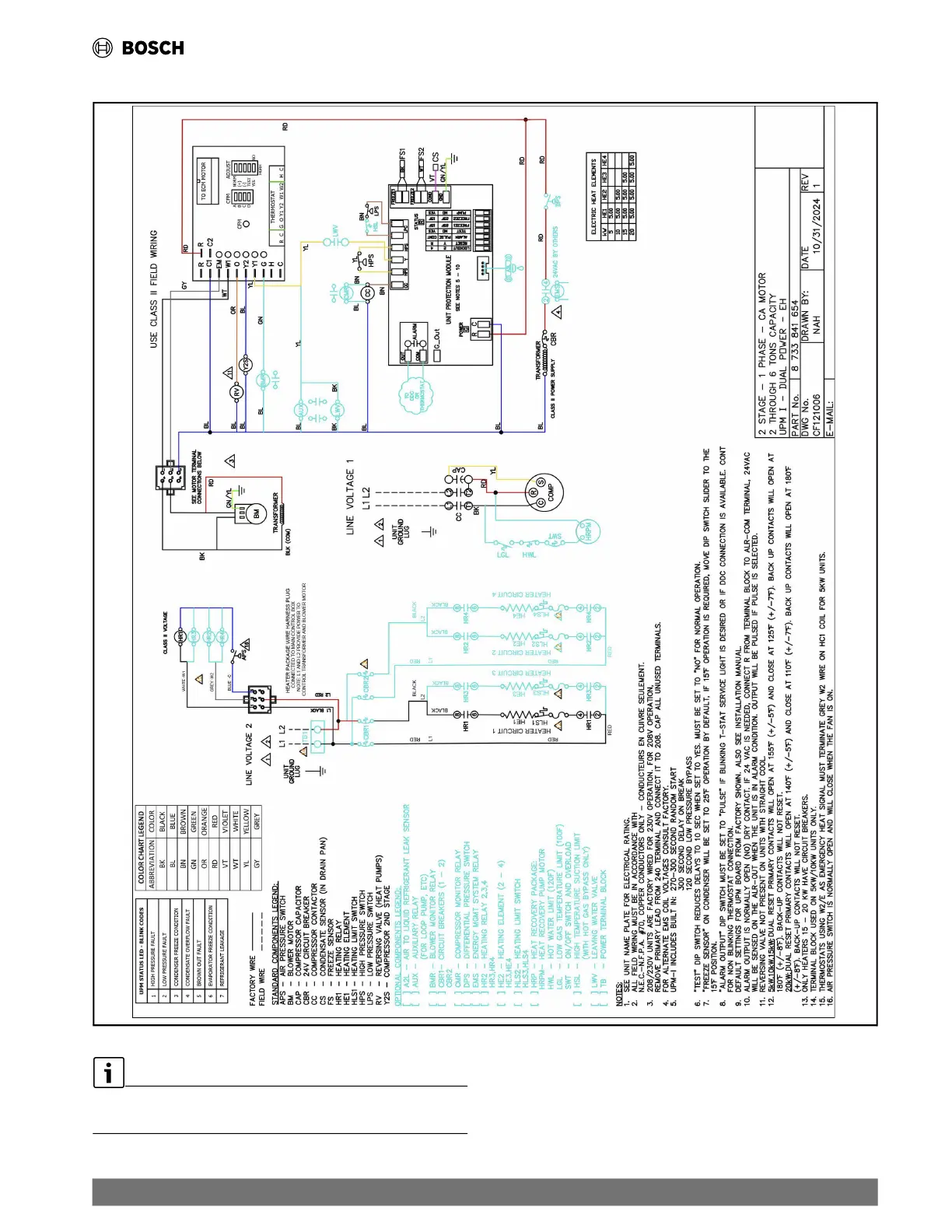

Fig. 34 Two-Stage, Single-Phase Unit with CA Motor and Electric Heat
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
| 83
CF Series Heat Pumps — 8733846299 (2024/11)
