Bosch CF Series - Two-Stage, Single-Phase Unit with Optional Components, CT Motor, and Electric Heat

Wiring Diagrams
21.7 Two-Stage, Single-Phase Unit with Optional Components, CT Motor, and Electric Heat

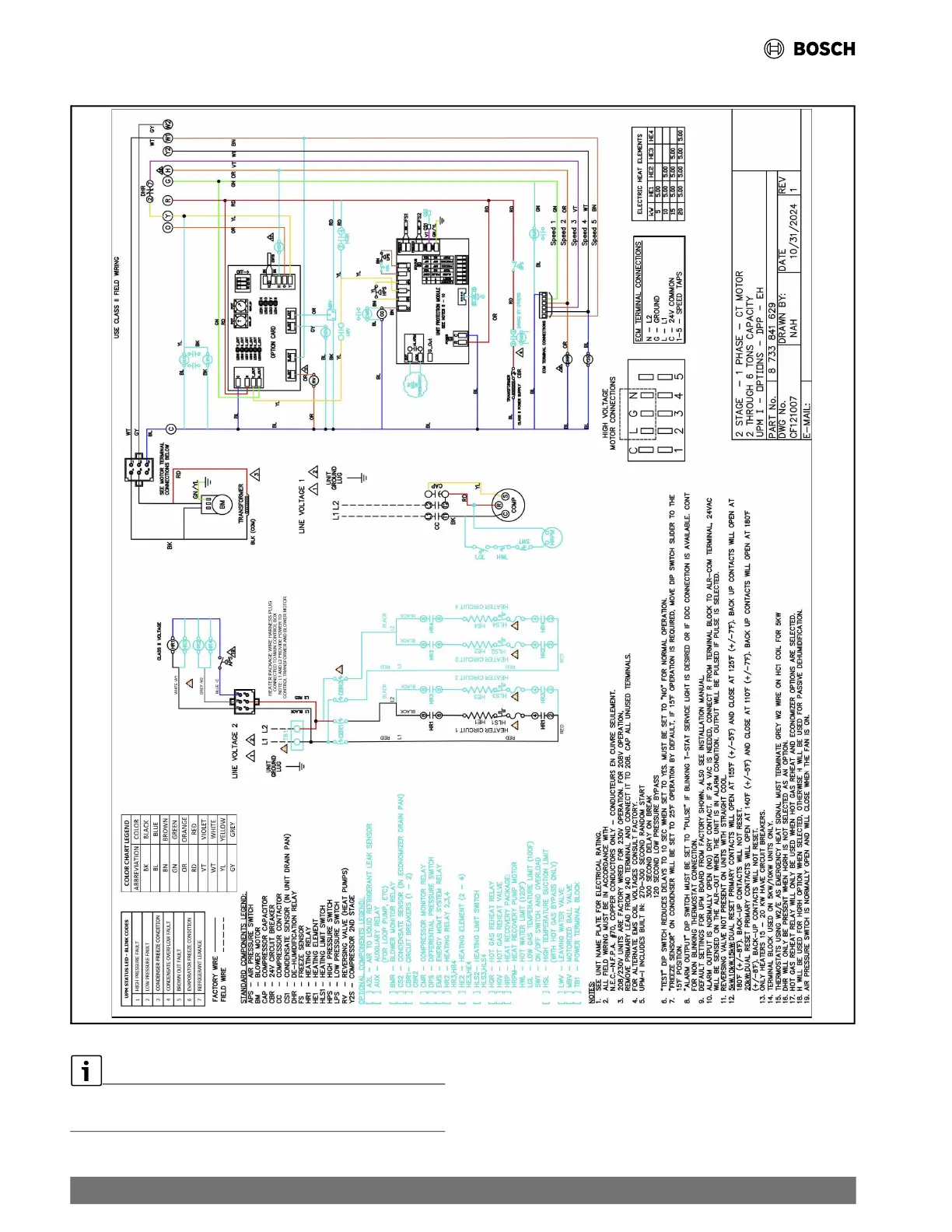

Fig. 35 Two-Stage, Single-Phase Unit with Optional Components, CT Motor, and Electric Heat
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
