10-19/32"
3-1/16"
7-15/32"
8"
O
VERALL LENGTH = 26-1/16"
3-1/16"
OVERALL HEIGHT = 1-1/2"
Drill 4 Holes = 5/16" Diameter
5/16"
New Auxiliary Fence
(assembled to Miter Saw)
Stationary
Fence
Saw Base
Top of Base
and Table
Note: The Stationary Fence is permanently
attached to the Saw Base (do not remove)
Stationary
Fence
5/16" Hole Through
1/2" Countersink
1/4" Flat Head Machine Screw x 2-1/2" Long
(need 4)
Flat Washer (need 4)
Nut (need 4)
Top of Base
and Table
Saw Base
New Auxiliary Fence
Board: 3/4" Wide x 1-1/2" High
Saw Operations

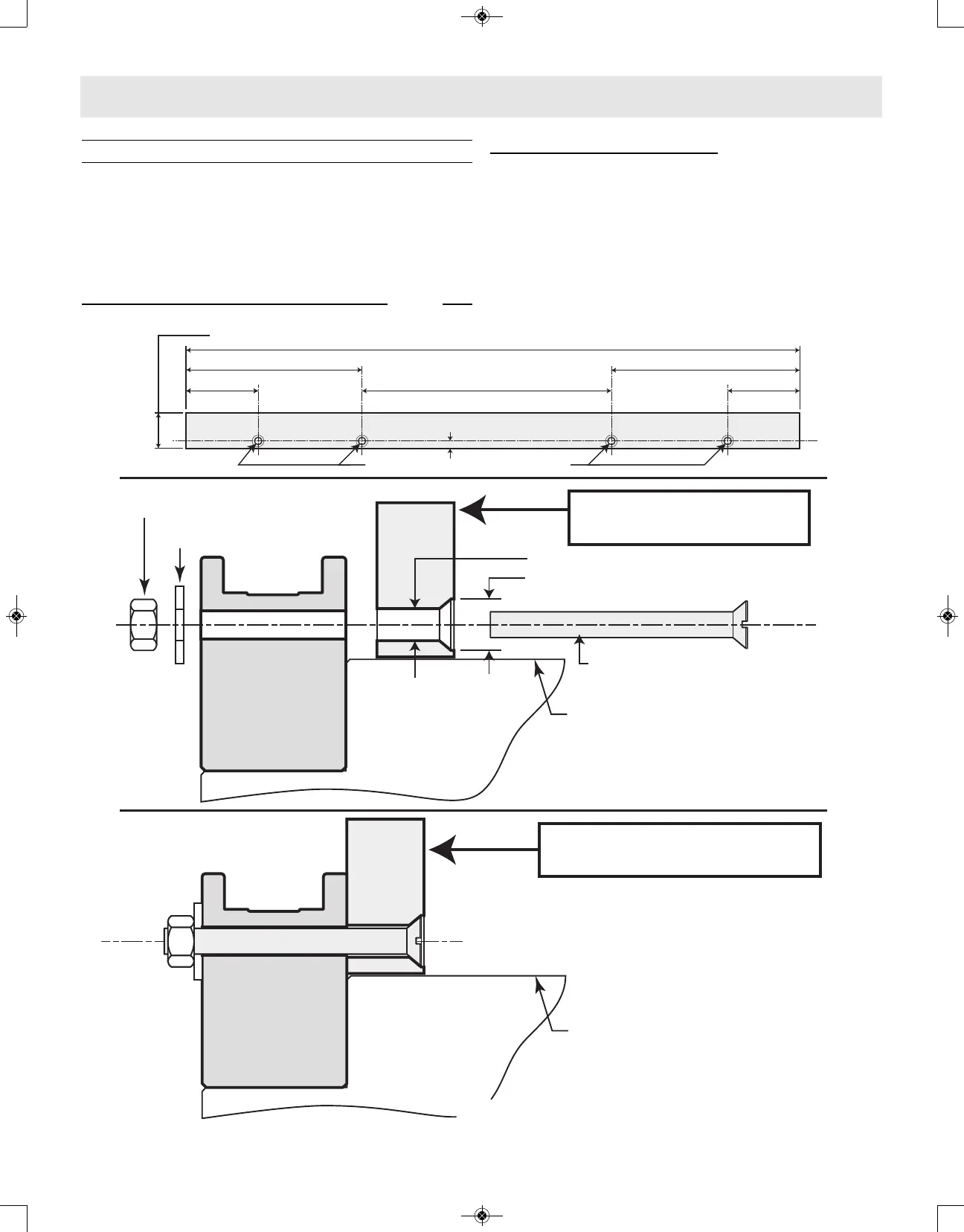

Crown Molding Auxiliary Fence
Auxiliary Fence - Using an Auxiliary Fence when
cutting Crown molding flat on the table will reduce
splintering of your workpiece and movement of small
cut-off pieces. Remove the saw’s sliding fences (see
p
age 34) before attaching the auxiliary fence.
Build auxiliary fence by following pattern below -
Material: 3/4" x 1-1/2" wood.
Add 4 holes as dimensioned on pattern
-or- Add
holes following the next steps:
1. Cut wood to the outside dimensions shown and
temporarily attach to saw’s stationary fence using
t
wo C-clamps.
2. Use 1/4" drill bit to drill first through existing holes
in the rear of the stationary fence and then through
the wood.
3. Remove wood, countersink the front of the wood
and permanently attach to saw’s fence with
hardware shown below.
