D9068 | Operation and Installation Guide | 2.0 Installation
12
Bosch Security Systems, Inc. | 3/13 | F01U071094-07

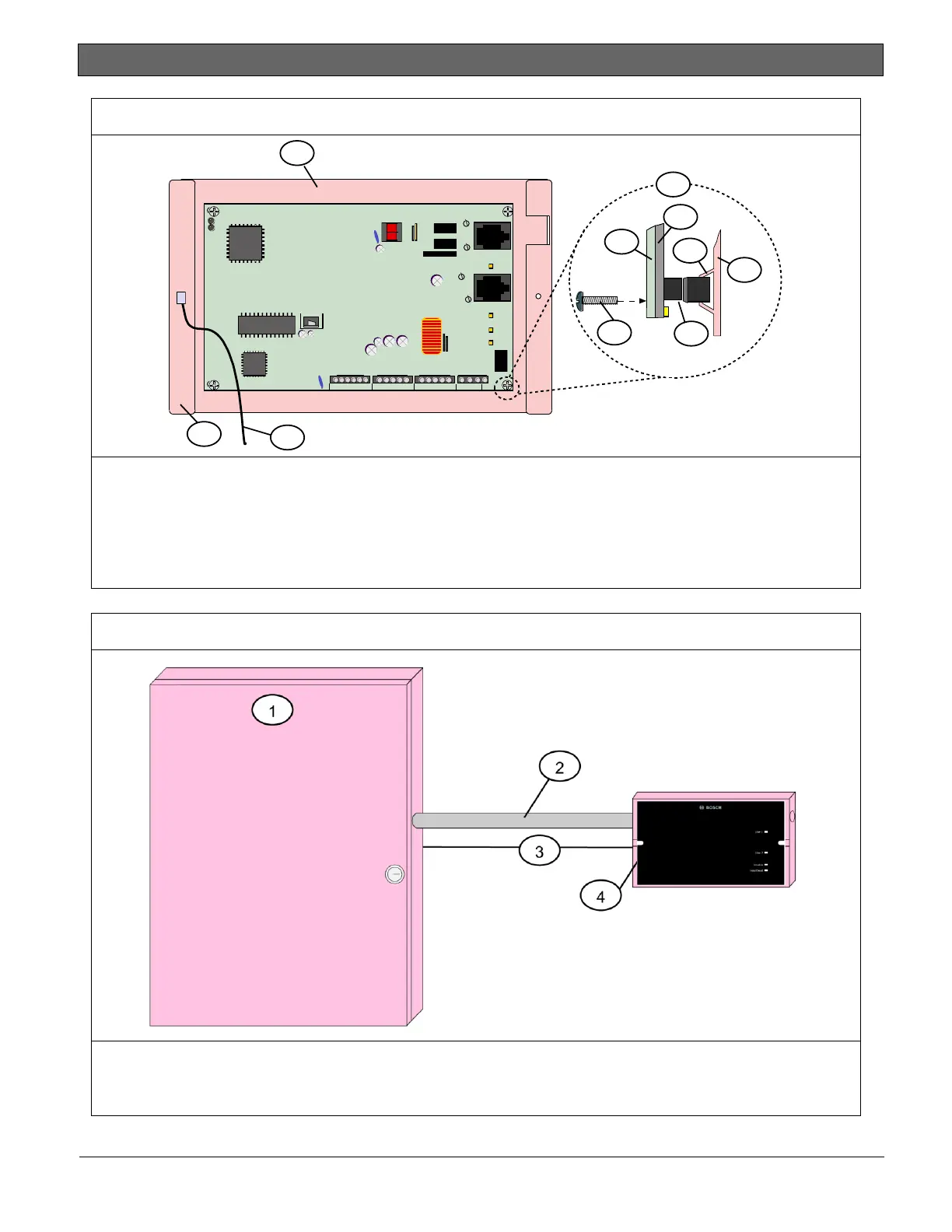

Figure 5: Mounting the D9068 Board
LINE 1
LINE 2
+ + - - A B
KEYPAD
1 2 3 4 5
NC C NO
SYS TROUBLE
HEARTBEAT
2
3
4
7
8
5
6
9
10
1
1 - D9068 installed in enclosure
2 - Support post assembly
3 - Light pipe
4 - D9068 PCB
5 - Lance
6 - Enclosure
7 - Mounting clip
8 - Screw
9 - Ground wire to earth ground
terminal connection on the FACP
(this connection is under the
metal edge of the D9068)
10 - Metal edge
6. Connect the D9068 and FACP using conduit (refer to Figure 6).
Figure 6: Conduit Connections
1 - FACP
2 - Conduit
3 - Use no more than 500 ft (152 m) of
wire to connect the FACP to the
D9068
4 - D9068
