02
03
01
TORX 10
TORX 10

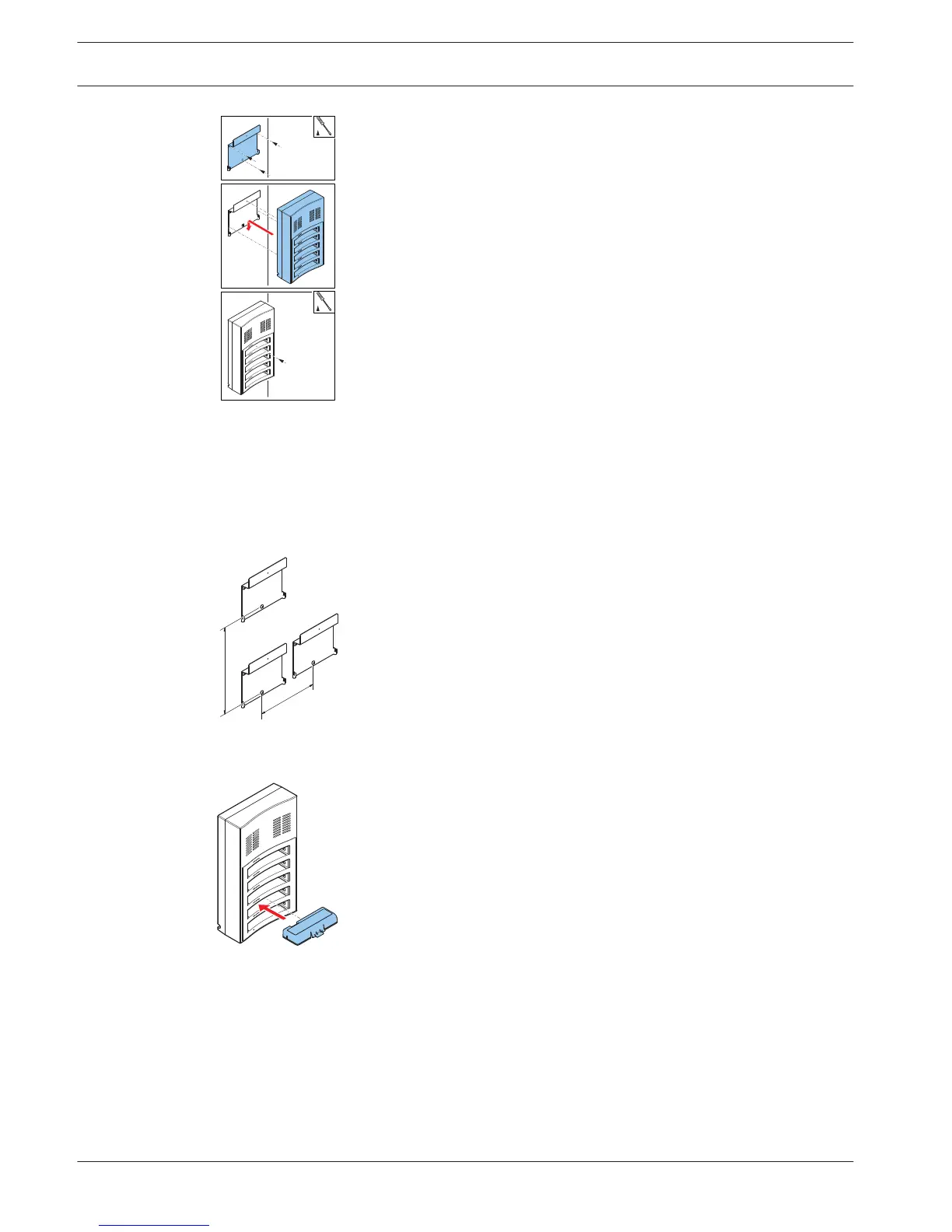

Figure 5.15: Installation, wall
When you attach more than one battery charger to the wall, you must make sure that:
– The vertical distance between two brackets is at least 340 mm (refer to d1 in the figure).
– The horizontal distance between two brackets is at least 195 mm (refer to d2 in the
figure).
d
2
d
1
Figure 5.16: Installation, multiple battery chargers
Battery
Figure 5.17: Installation, battery
102
