LBB4117/00 Cable Locking Clamps
Use the LBB4117/00 Cable Locking Clamps to lock the connectors of extension cables. Each
pair uses one clamp.

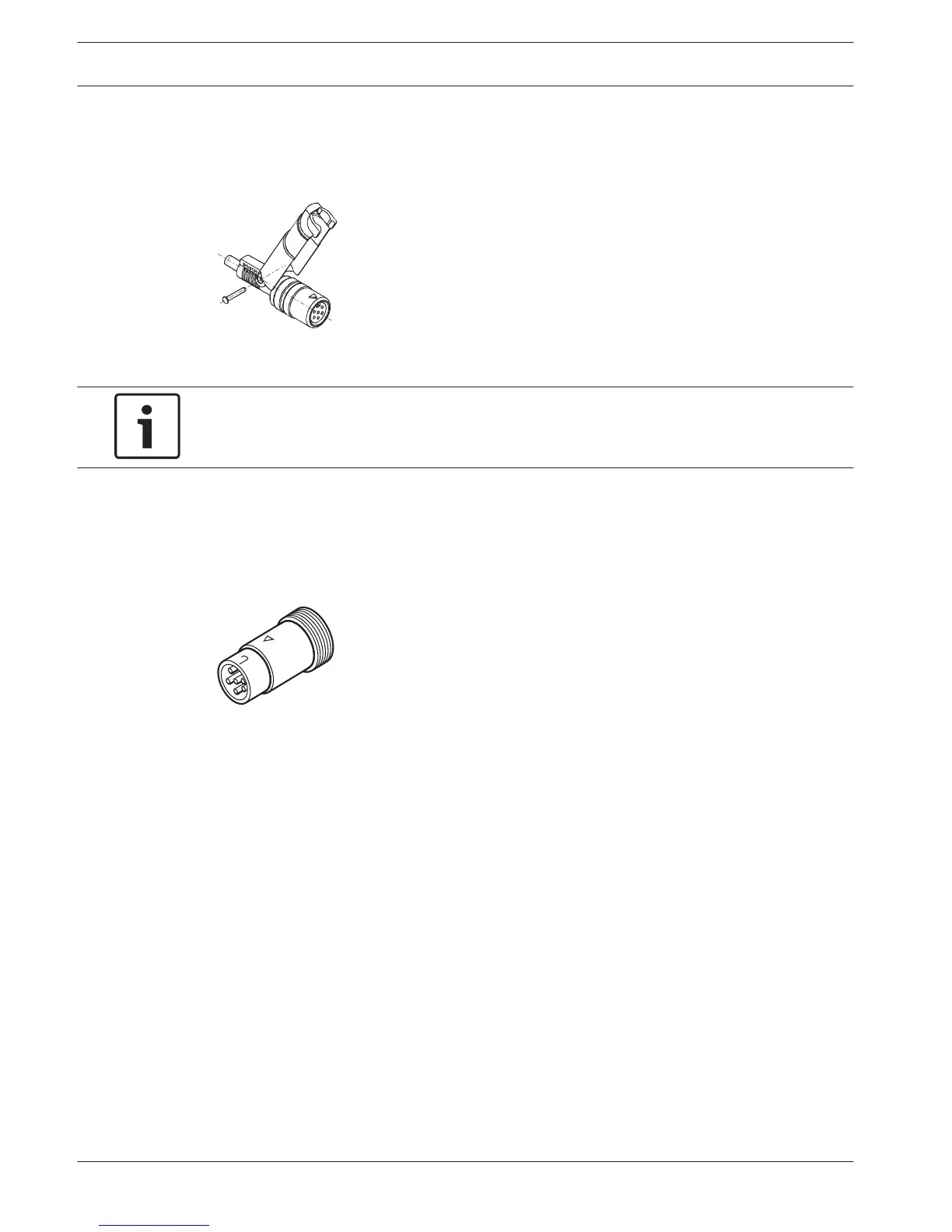

Figure 3.59: Cable locking clamp
Notice!
You cannot use the LBB4117/00 Cable Locking Clamps with the LBB4119/00 DCN
Connectors.
LBB4118/00 Cable Termination Plug
Use an LBB4118/00 Cable Termination Plug to ‘close’ an ‘open-ended’ DCN cable (e.g. for
voting units with two cables, or a spare or expansion cable).
Figure 3.60: Cable termination plug
