Custom made Optical Network Cables

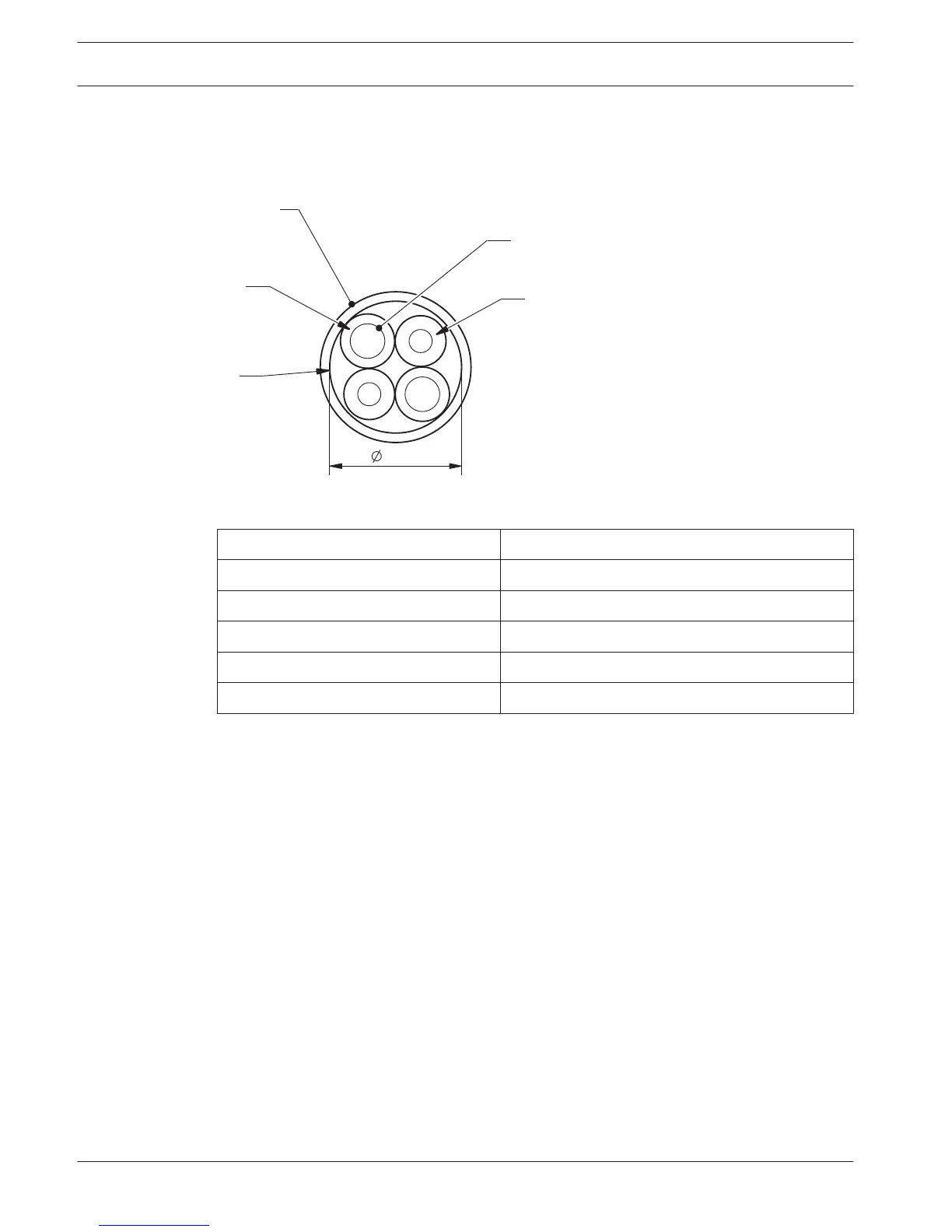

Refer to the figure and table for details about the wires inside the extension cables.
7±0.1
3
2
1
5
4
Figure 6.65: Wires
Number
Signal
1 Protective cloth
2 Insulation
3 Outer sheet
4 Stranded wire
5 Optical fiber
Table 6.36: Wires
The optical network connector (LBBB4417/00) has 10 parts.
6.27
