1
2
3
4
5
7
8
6

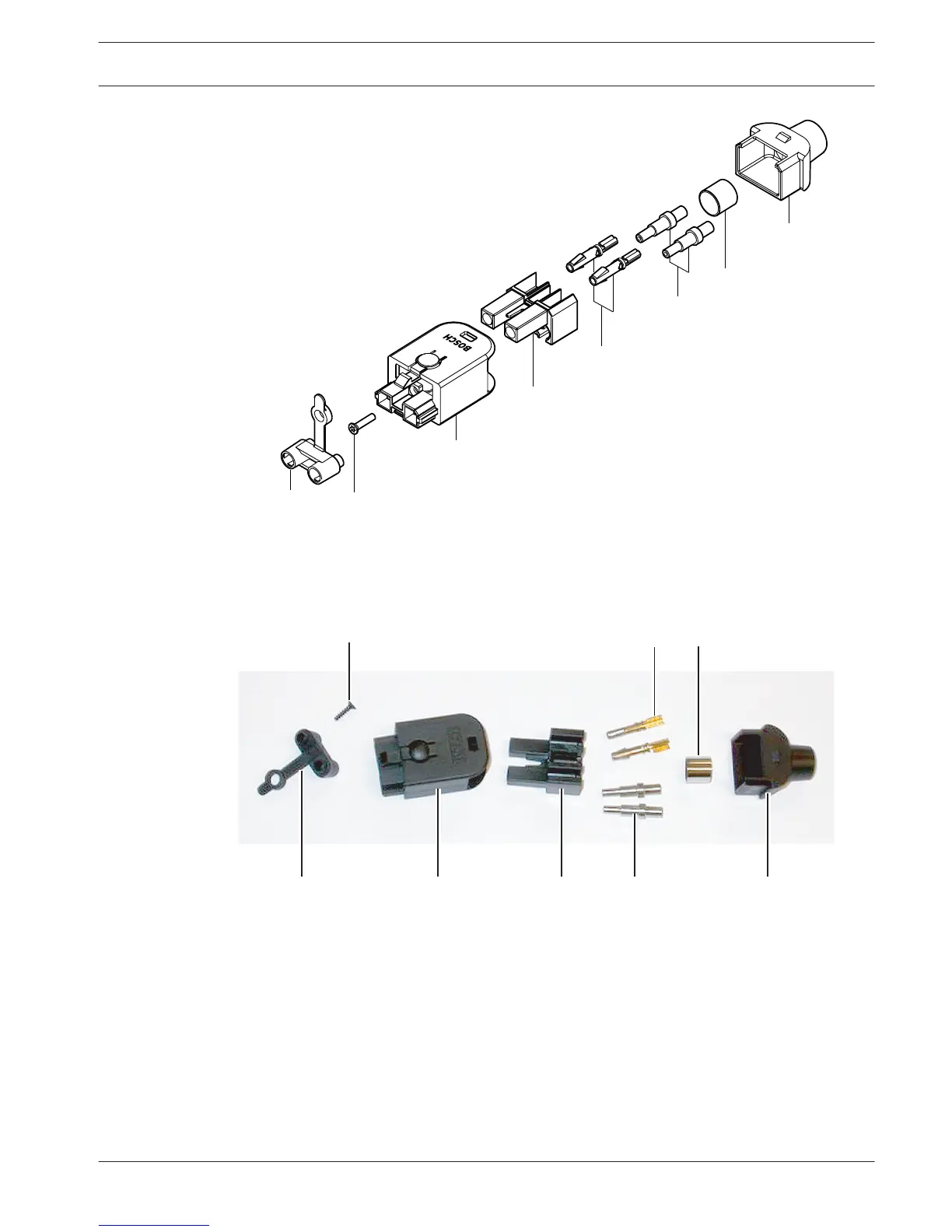

Figure 6.66: Connector assembly drawing
2
7
5
1 3 4 6 8
Figure 6.67: Connector components
This procedure shows how to make the cable-connector.
The procedure has these parts:
– Prepare.
– Remove the ends from the copper wires.
– Attach the socket contacts.
– Remove the ends from the optical fibers.
– Attach the ferrules.
– Assemble the connector.
– Crimp the bush.
