Bosch DCN Next Generation - Cable Couplers; Bending Network Cable

PRS-4DEX4
INT-TX08
DCN-CCU2 DCN-CCU2
PRS-4DEX4
PRS-FINNA PRS-FINNA
2 m
2 m
2 m
2 m
2 m
2 m
2 m
2 x GOF
Together: max. 1904 m
PRS-FINNA PRS-FINNA

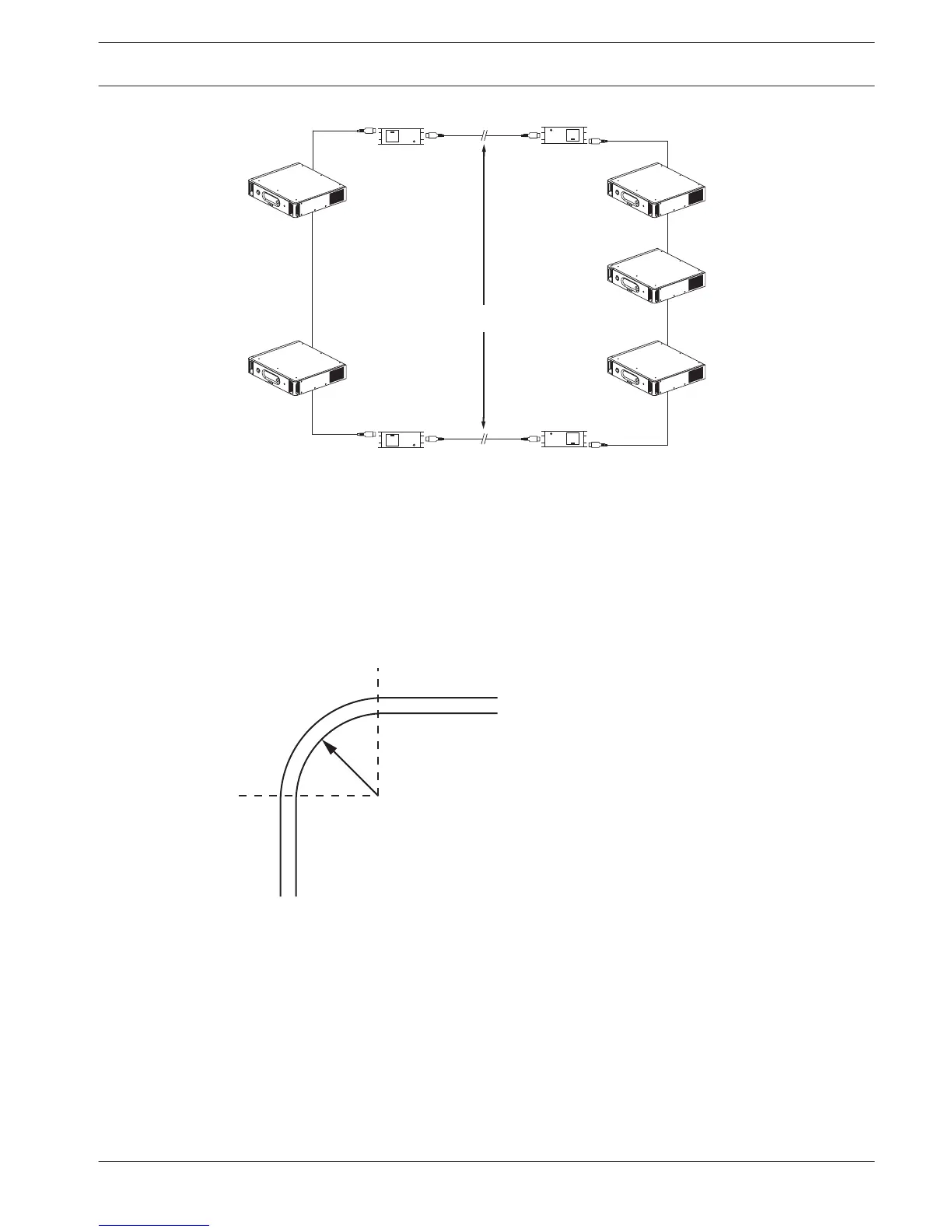

Figure 4.10: Example POF and GOF
Cable couplers
You can use the LBB4419/00 Cable Couplers to connect optical network cables to each other.
A cable coupler causes optical attenuation. Each cable coupler decreases the maximum
distance between two devices in the optical network (normally 50 meters) with 20 meters.
Bending Network Cable
The minimum bend radius of a 90 degree bend in an LBB4416 cable is 110 mm. A 180 degree
bend is the same as two 90 degree bends.
R=110 mm
Figure 4.11: Bend radius
Coiling
The minimum coiling radius of an LBB4416 cable is 110 mm.
4.2.7
4.2.8
Conference System Planning | en 81
Bosch Security Systems B.V. Operation Manual 2013.11 | V2.0 | DCN-NG_OM_V4.x
