Custom made DCN cables
You can make custom-made cables with the LBB4116/00 Extension Cable (100 m) and the
LBB4119/00 DCN Connectors.
Socket
Plug

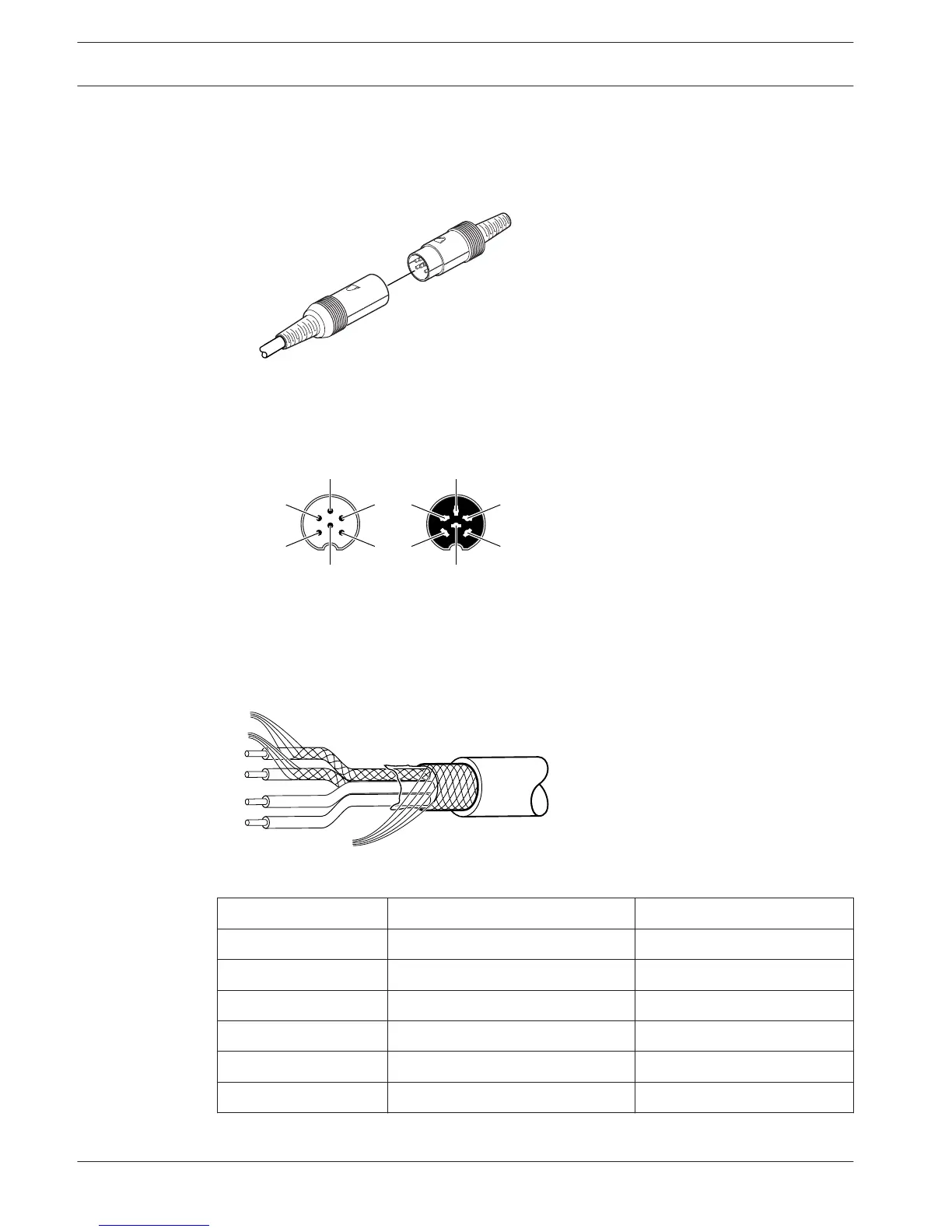

Figure 6.102: DCN plug and socket
Plug Socket
1
6
2
3
4
5 5
6
4
3
2
1
Figure 6.103: DCN plug and socket, connection
1
5
2
4
3
6
GND
Figure 6.104: DCN cable, connection
Pin
Signal Color
1 Downlink GND ---
2 Downlink data Green
3 +40 V(DC) Brown
4 Uplink data White
5 Uplink GND ---
6 +40 V(DC) Blue
Table 6.38: DCN cable, connection
