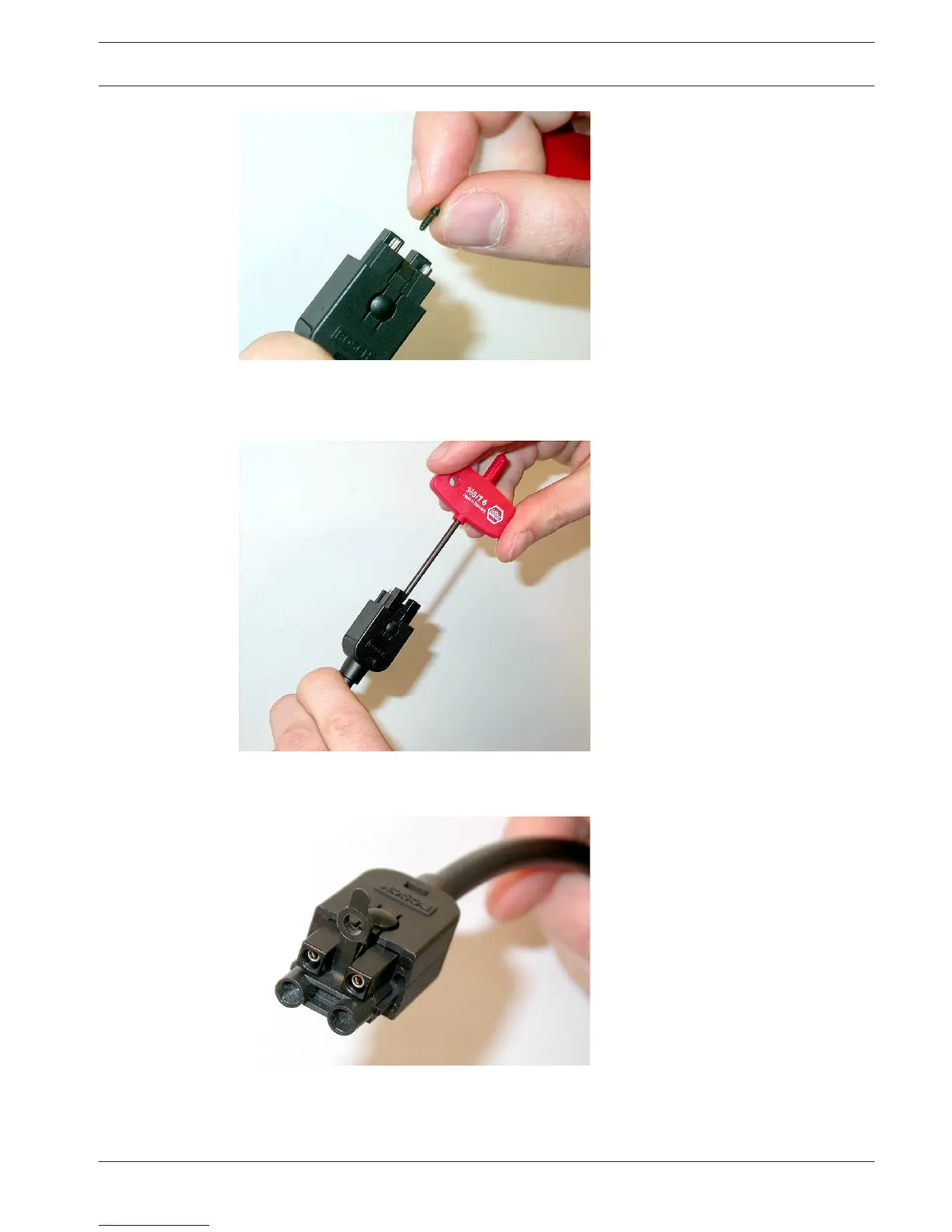

Figure 6.99: Inserting the Torx screw
7. Tighten the Torx screw using the Torx screwdriver (tool 7).
Figure 6.100: Tightening the Torx screw
8. Put the dust cap on the connector to protect the plastic optical fibers.
Figure 6.101: Dust cap on connector
