Audio I/O routing
Recorder
The Recorder mode is the default audio I/O routing mode. In the Recorder mode, audio output
2 of the central control unit transmits a signal that can be connected to an external audio
recorder. The central control unit has no effect on the volume level of the signal.
In the Recorder mode, the audio input 2 signal of the central control unit is added to the floor
signal.
Ɖ
O
DC
DC
Ɖ
O
¯
¯
O
I
D
I
1
2
2
1
PC
PC
CCU

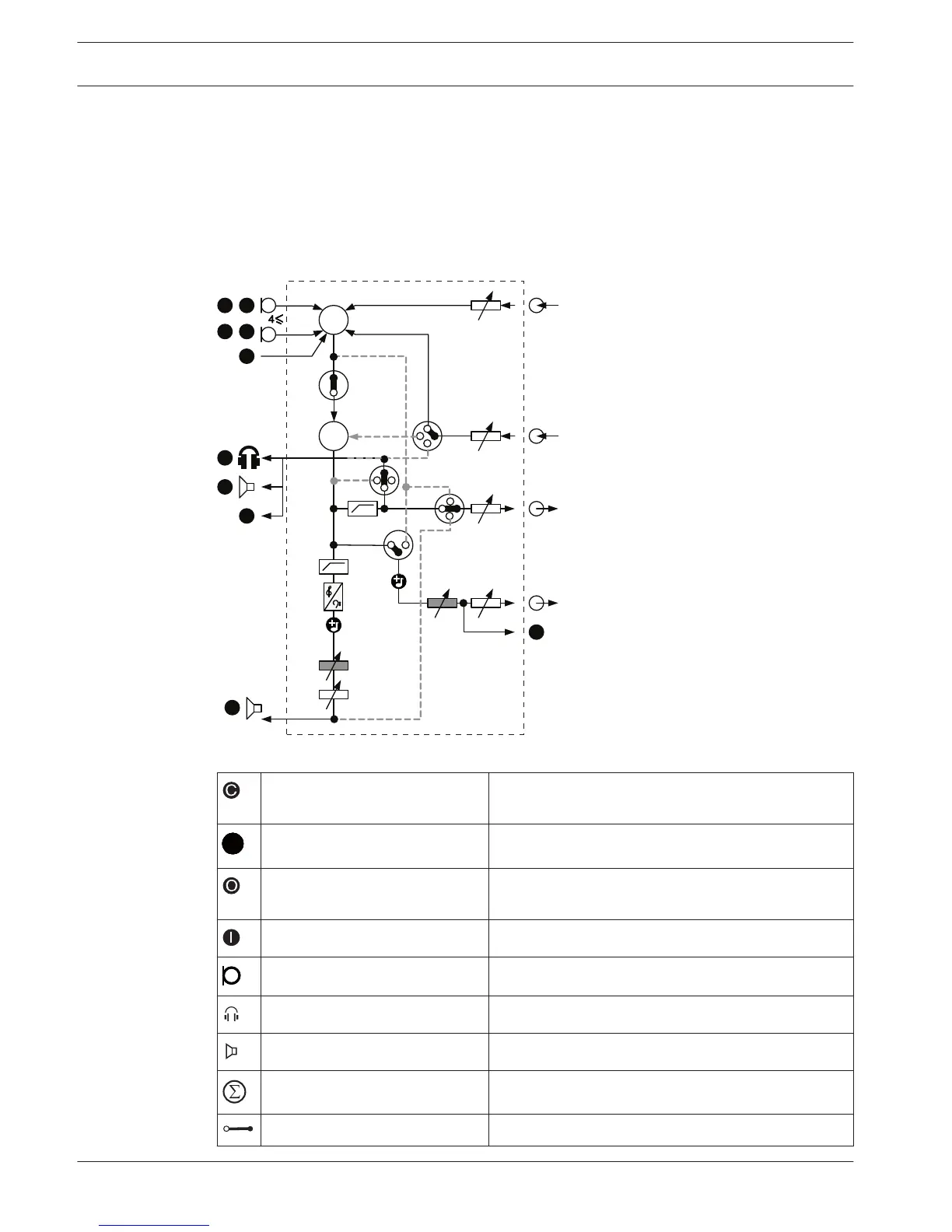

Figure 3.3: Audio processing scheme DCN-CCU2 or DCN-CCUB2
Contribution device(s)
Wireless discussion units, wired discussion units,
Consentus units and/or flush mounted units.
DDD
Delegate Discussion unit microphones and loudspeakers.
Optical device(s) Central control units, audio expanders, Integrus
transmitter and/or wireless access point.
Interpretation device(s) Interpreter desk
Microphone --
Headphones --
Loudspeaker --
Summation Summation of the signal
Switch --
