DCN-FCS Channel Selector
Connect the channel selector to the DCN with the DCN cable. You can use the DCN socket to
make a loop-through with the channel selector.
External headphones socket
You can connect an external headphones socket to the channel selector (e.g. a 6.3 mm
headphones socket). The external headphones socket must be connected to a plug or to
solder pads.
X18
X17
X16

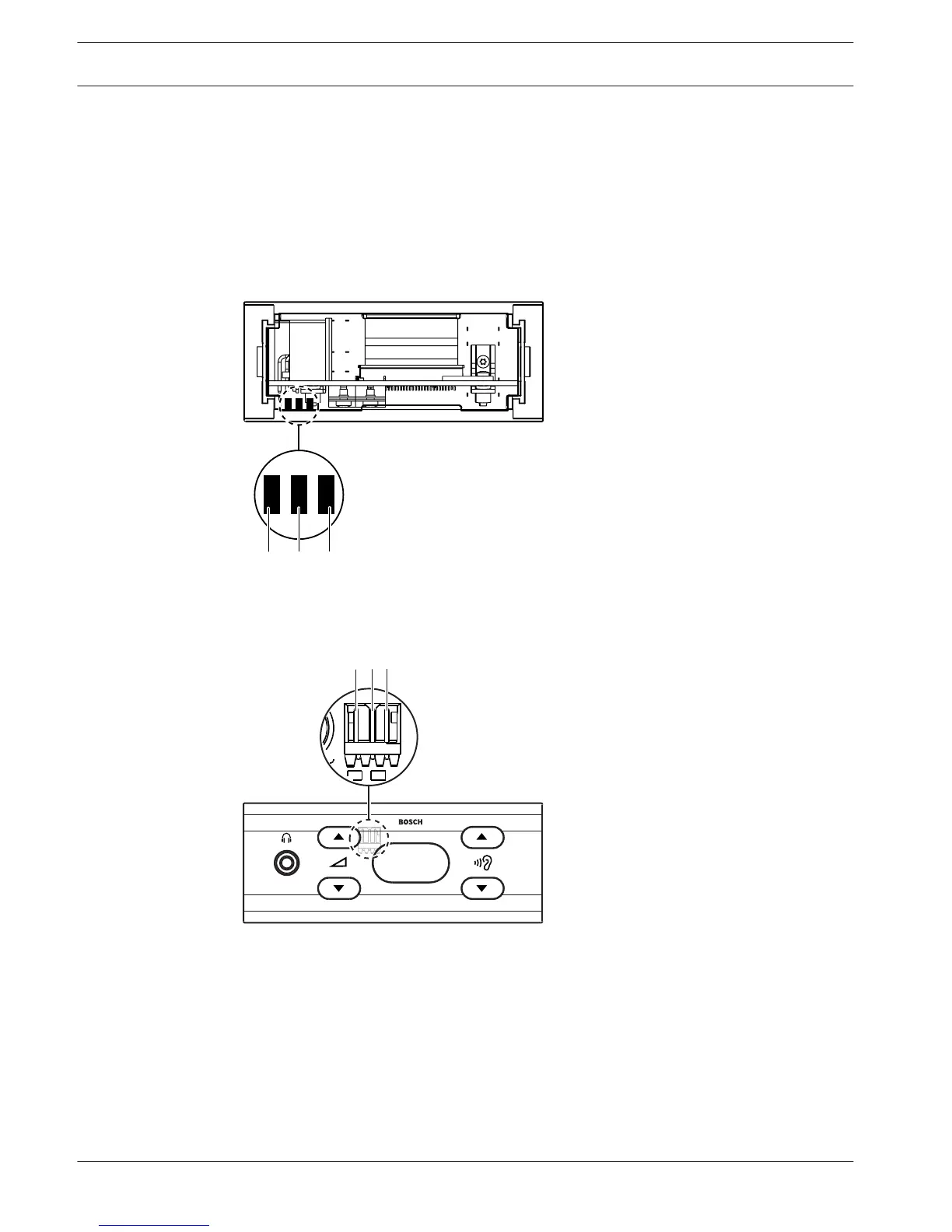

Figure 6.37: External headphones, connection (1)
3
2
1
Figure 6.38: External headphones, connection (2)
The solder pads and the plug are internally connected.
