7±0.1
3
2
1
5
4

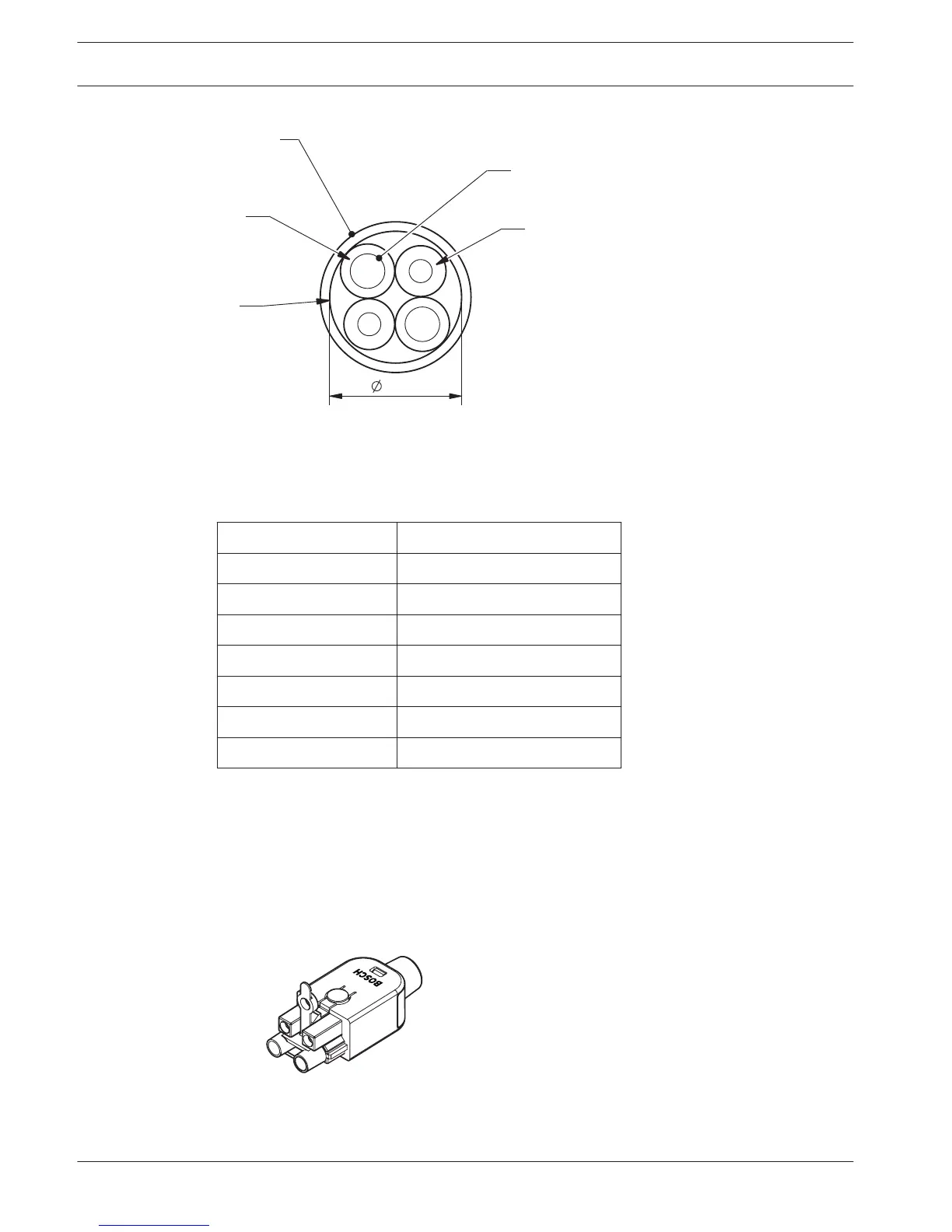

Figure 3.65: Wires
Use the LBB4418/00 Cable-connector Tool Kit to make cables from LBB4416/00 Optical
Network Cables and LBB4417/00 Optical Network Connectors.
Type number
Cable length
LBB4416/01 0.5 m
LBB4416/02 2 m
LBB4416/05 5 m
LBB4416/10 10 m
LBB4416/20 20 m
LBB4416/50 50 m
LBB4416/00 100 m
Table 3.6: Optical network cables
Except for LBB4416/00, all optical network cables have optical network connectors.
Use the LBB4417/00 Optical Network Connectors to make cables from LBB4416/00 Optical
Network Cable (100 m) with the LBB4418/00 Cable-connector Tool Kit.
Figure 3.66: LBB4417/00 Optical Network Connectors
Refer to System, page 259 > Optical network problems for further information.
