Bosch DCN Next Generation - Page 97

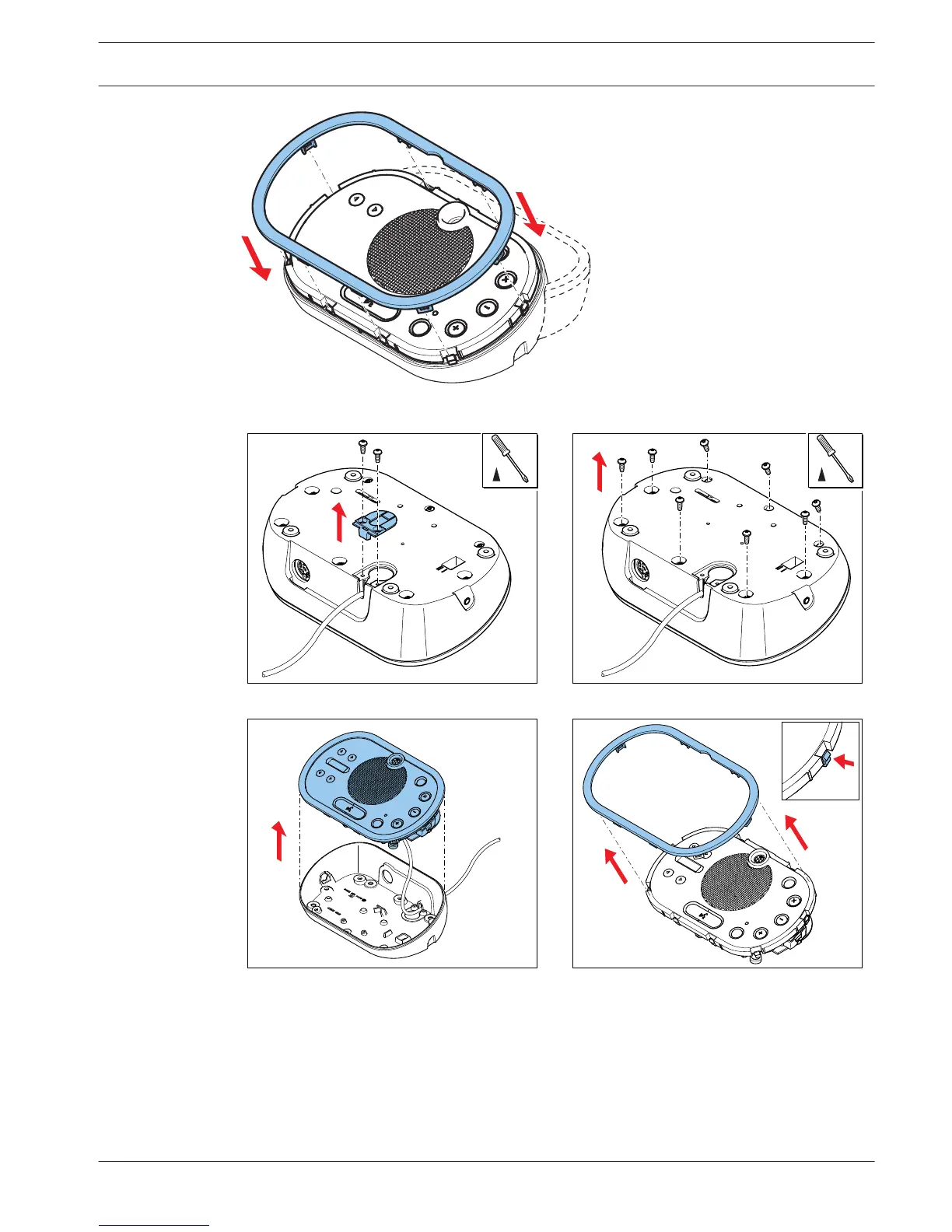

Figure 5.7: Attach a rim
01 02
0403
TORX 8 TORX 8
Figure 5.8: Detach a rim
Microphone buttons
The mode of the discussion unit (refer to DCN-DIS and DCN-WD discussion units, page 208)
indicates the type and number of microphone buttons that must be installed.
Conference System
Installation | en 97
Bosch Security Systems B.V. Operation Manual 2013.11 | V2.0 | DCN-NG_OM_V4.x
