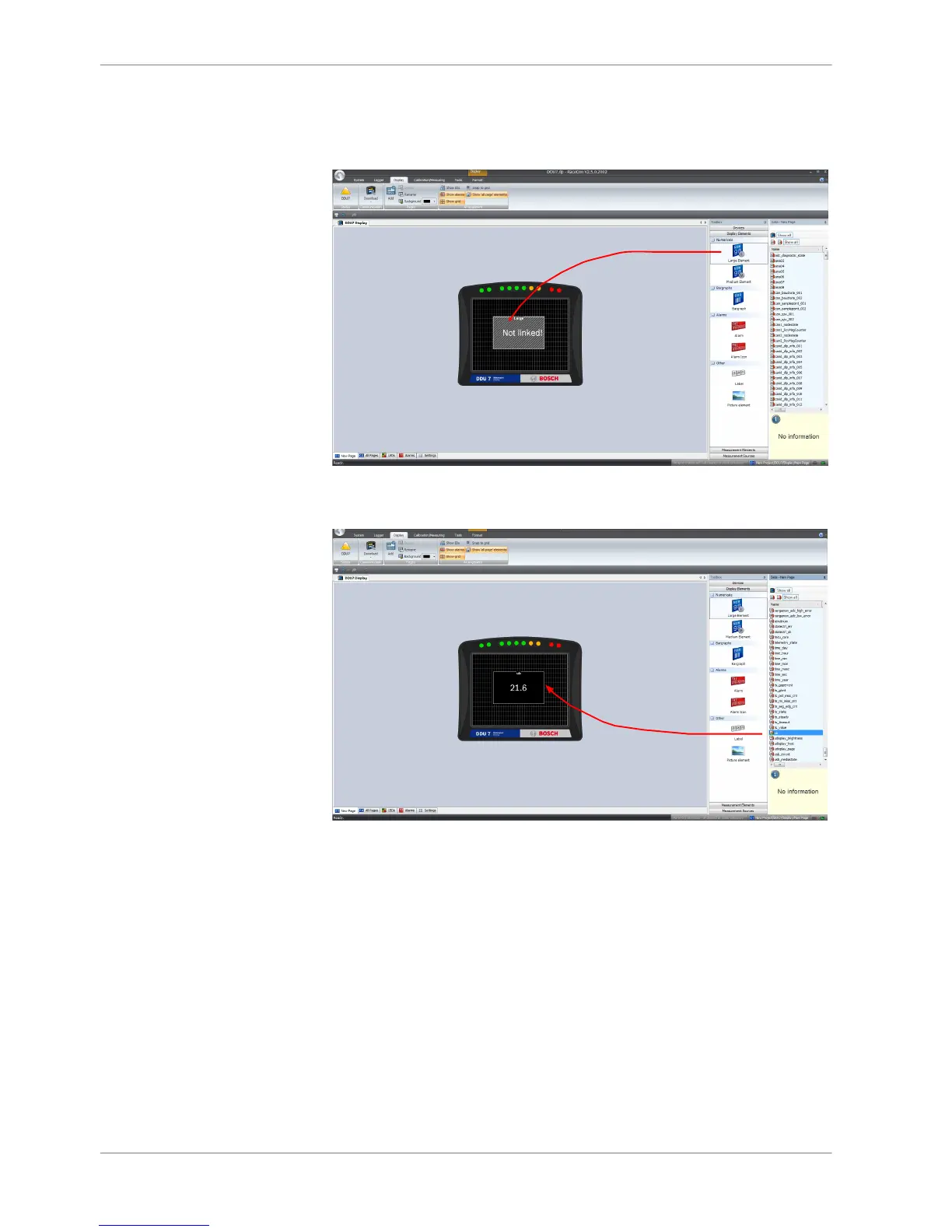

1. Drag a numeric display element from the Toolbox and drop it on the display
page. A message in the numeric element box shows that it is not linked to a
measurement channel.
Drag + Drop
2. Drag a measurement channel from the Data Area and drop it on the numeric
display element.
Drag + Drop
The measurement channel is linked to the numeric display element.
Configuring a numeric display element
1. Double‐click on the numeric display element. The Numeric Wizard window
opens.
