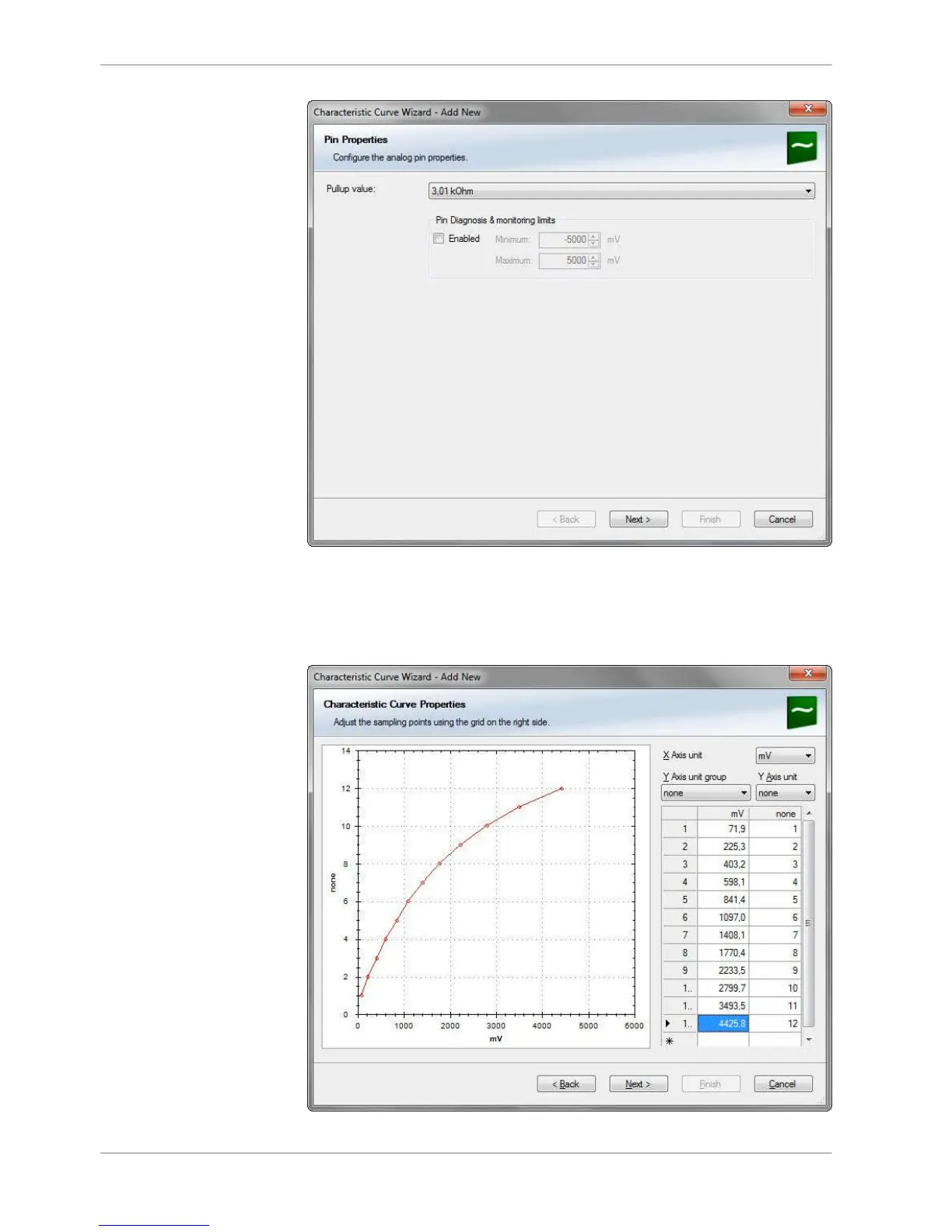

4. Input the relation between voltage and switch position and go ‘Next’.
Voltage = 5000 x R/(R + 3010)
5000: Sensor supply (mV)
R: Resister for each Rotary sw position (Ohm)
3010: Pull‐up resistor (Ohm)
8 | Display Configuration
38 / 136 DDU S2 PLUS Manual Bosch Motorsport
