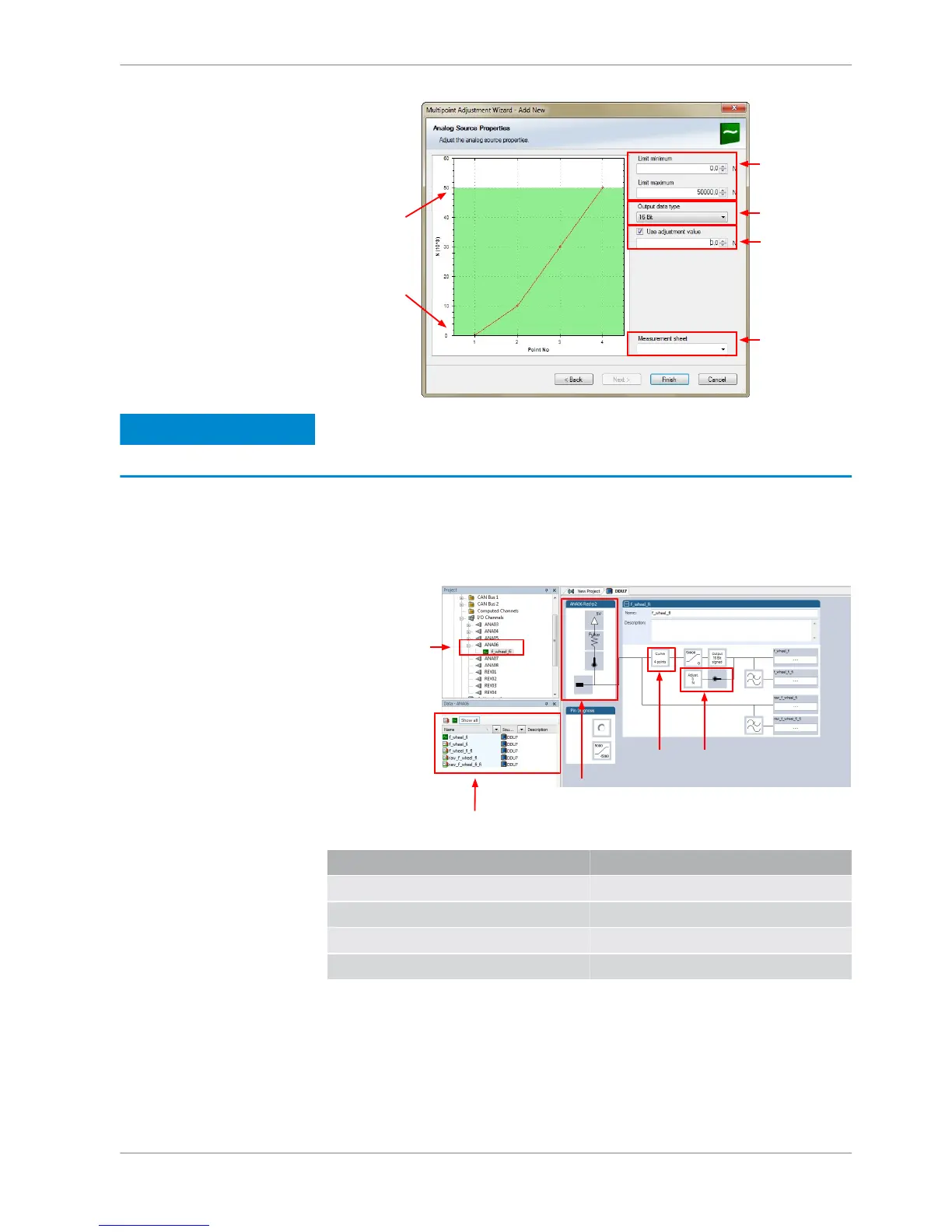

Physical limits
of channel
Enter physical limits
of the sensor
Choose data type
of the measurement
variable
Enable additional
online calibration
Enter name to auto-
matically create a
new measurement
sheet
Notice
Working with automatically created measurement sheet is ex‐
plained in chapter ‘Setting up an online measurement [} 100]’.
7. Click ‘Finish’ when done.
8. Enter channel name and description.
9. Click ‘OK’ when done.
The channel is inserted into the DDU 8 Project Tree.
Channel is linked
to ANA06
Input pull-up resistor
is deactivated
Characteristic
curve for sensor
Adjustment
is enabled
Available measurements for channel:
Measurement label Function
raw_name mV value of sensor
raw_name_fi filtered mV value of sensor
name physical value of sensor
name_fi filtered physical value
Online definition of the curve is covered in the chapter ‘Online calibration of
measurement channels [} 106]’ of this manual.
