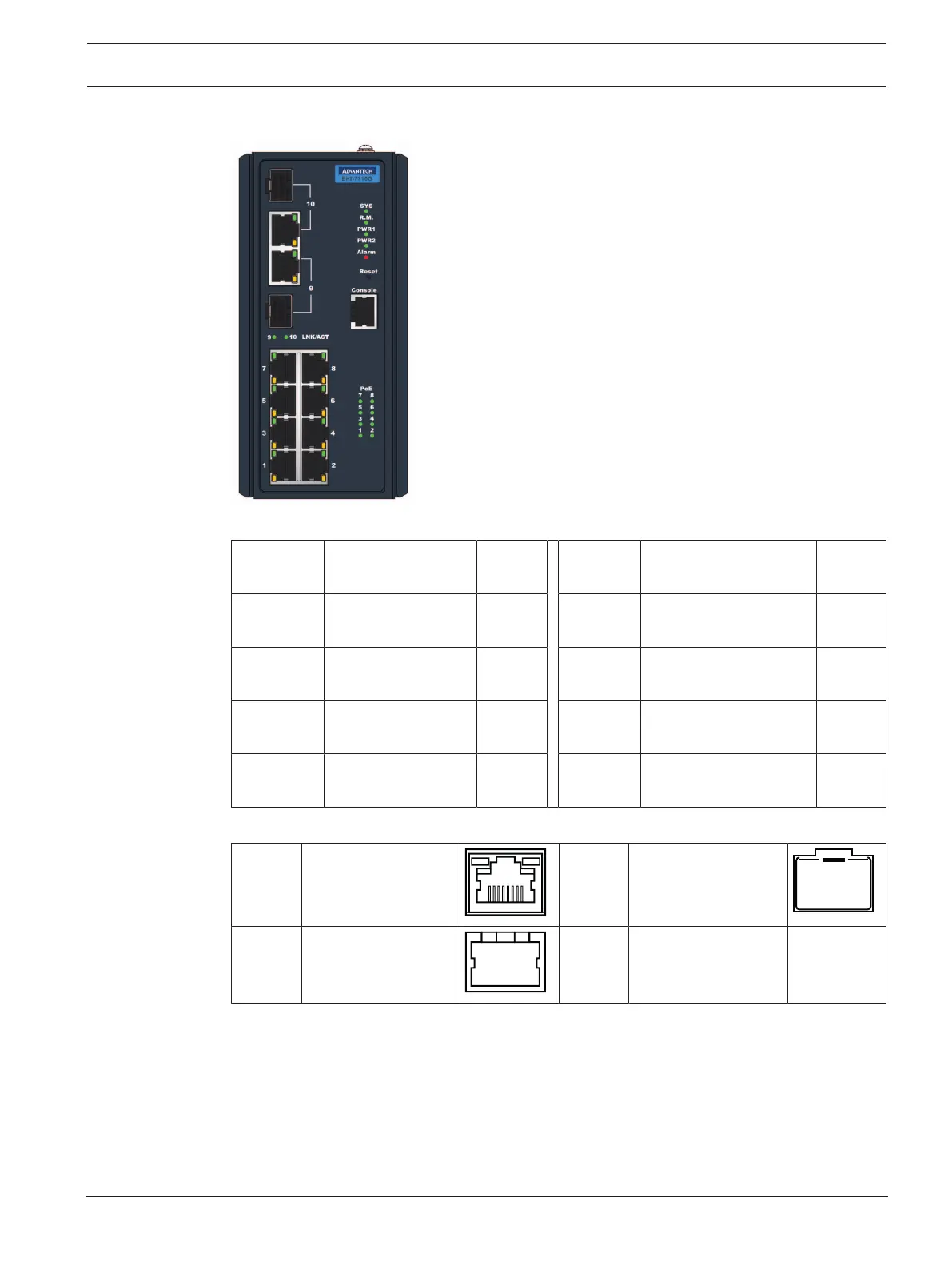

14.4 Indicators and connections
Front panel indicators and controls
Port 1‑10˄ Link activity Green SYS System is operating
normally
Green
Port 1‑10˅ 100Mbps network
1Gbps network
Yellow
Green
R.M. Active when
determining ring master
Green
- - - PWR1 Power on power supply
input1
Green
PoE 1‑8 PoE activated Green PWR2 Power on power supply
input2
Green
Reset System soft reset or
factory reset
Switch Alarm SFP port disconnected
or link down
Red
Front panel connections
Port
1‑8
Network port 1‑8
with PoE
Port
9‑10
Network combo port
9‑10
Console Console serial RS232
cable COM port
