9.5 Installation
The device is designed to be installed in a 19"‑rack/cabinet. Refer to: Mounting the 19"-rack
devices, page 20.
The device can be connected everywhere within the PRAESENSA system. If required, refer to:
System introduction, page 13.
9.5.1 Parts included
The box contains the following parts:
Quantity Component
1 Amplifier, 600W 8‑channel
1 Set of 19"‑rack mounting brackets (pre‑mounted)
1 Set of screw connectors and cables
1 Quick Installation Guide
1 Important Product Information
No tools or Ethernet cables are provided with the device.

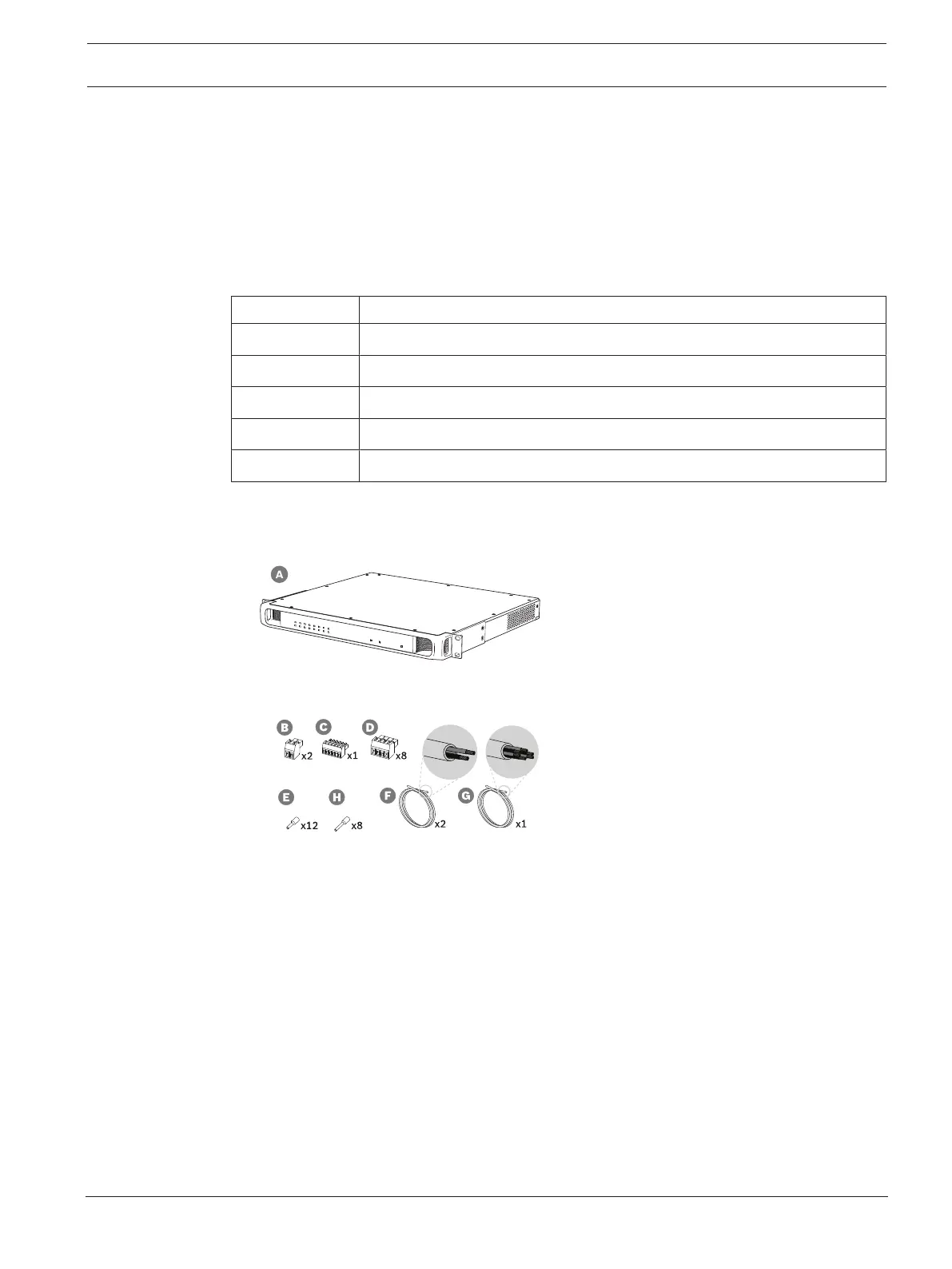

Parts check and identification
A Amplifier
B 2‑pole screw plug (x2)
C 6‑pole screw plug (small)
D 4‑pole screw plug (large, x8)
E Wire‑end ferrules (small, x12)
F 2‑conductor cable (x2)
G 6‑conductor cable
H Wire‑end ferrules (large, x8)
