156 en | Ethernet switch | PRA-ES8P2S PRAESENSA
2019.11 | V1.00 | Installation manual Bosch Security Systems B.V.

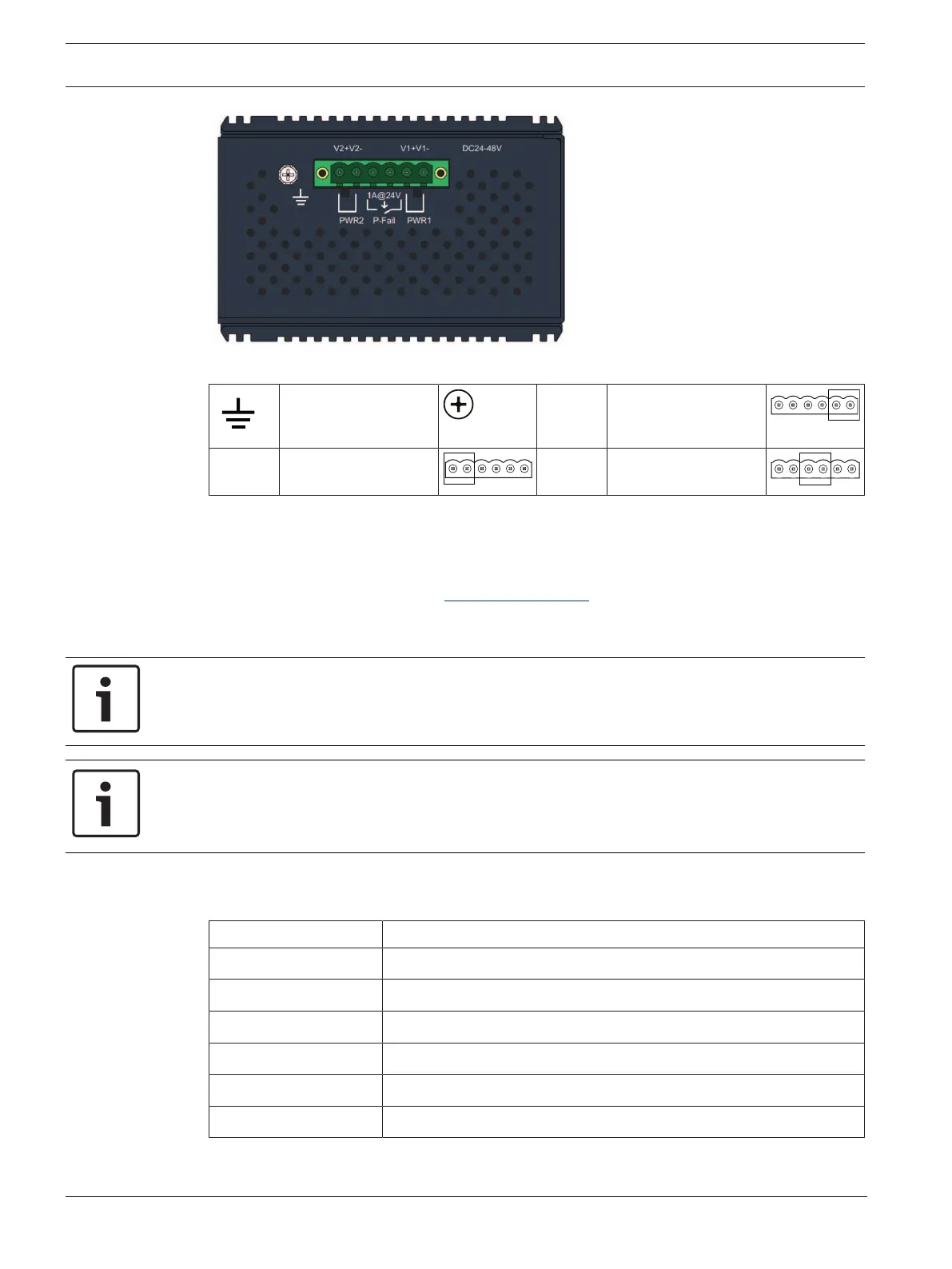

Top panel connections
Chassis ground PWR1 24 to 48VDC input 1
PWR2 24 to 48VDC input 2 P‑Fail Fault relay
14.5 Installation
The PRA-ES8P2S is a preconfigured version of the Ethernet switch Advantech
EKI‑7710G‑2CPI‑AE. Detailed installation and configuration instructions can be downloaded
from the manufacturer’s website: www.advantech.com.
The switch can be mounted on a DIN‑rail or on a wall or panel, using the wall mounting
brackets.
Notice!
For security reasons, change the factory default password of the switch.
Notice!
PRAESENSA supervises the network links between OMNEO devices, but a link between two
non‑OMNEO devices is not supervised. The PRA-ES8P2S is not a native OMNEO device and a
connection between two of these switches is not supervised.
14.5.1 Parts included
The box contains the following parts:
Quantity Component
1 10‑port industrial Ethernet switch
1 Screw connector
2 Wall-mounting bracket
1 DIN‑rail mounting bracket and screws
1 Startup manual
1 EKI Device Configuration Utility CD ROM
No tools or Ethernet cables are provided with the device.
