PRAESENSA *Amplifier, 600W 4-channel | PRA-AD604 | en 67
Bosch Security Systems B.V. Installation manual 2019.11 | V1.00 |

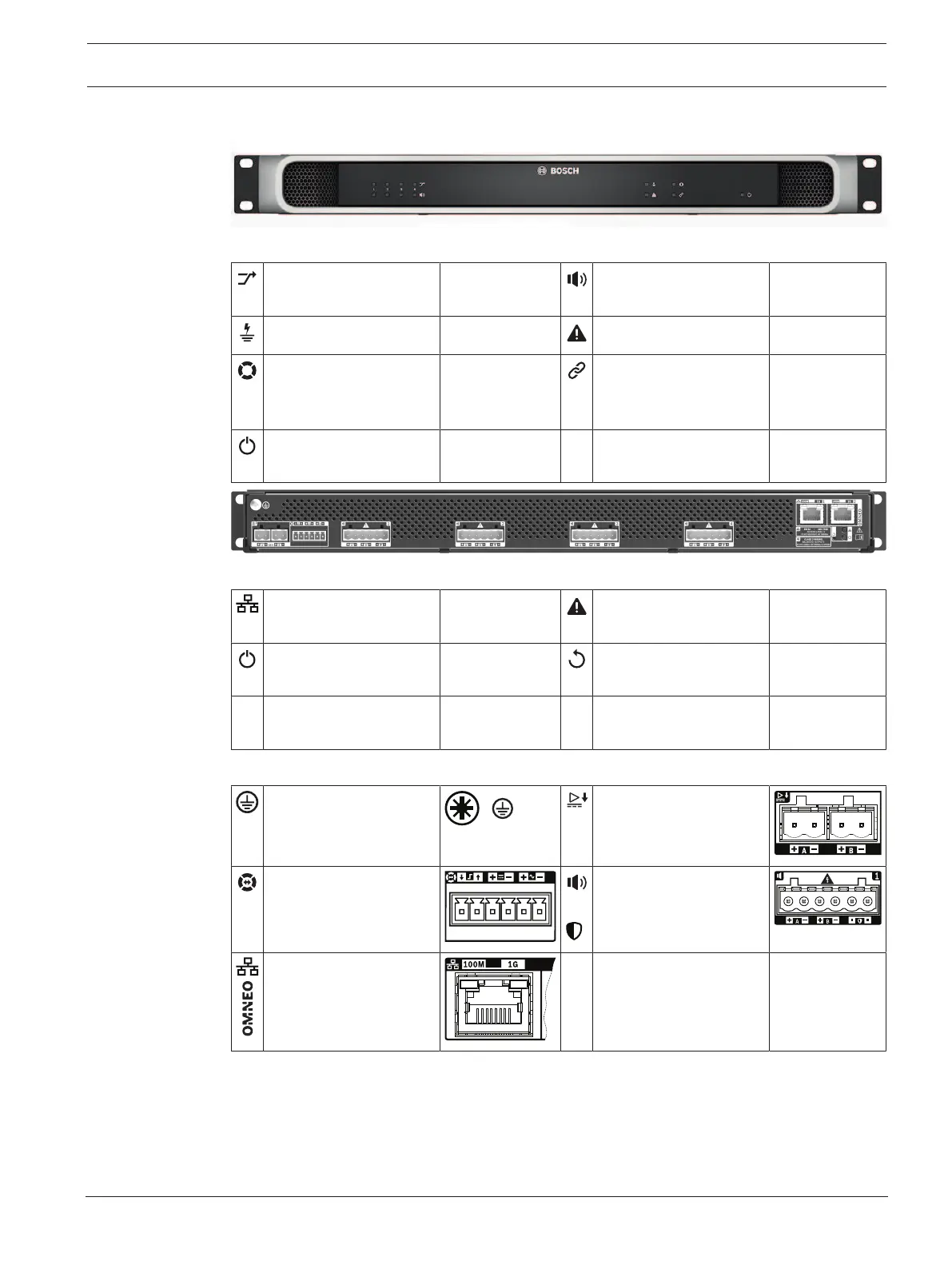

8.4 Indicators and connections
Front panel indicators
Spare channel
substitute 1‑4
White Signal present 1‑4
Fault present 1‑4
Green
Yellow
Ground fault present Yellow Device fault present Yellow
Audio lifeline substitute White Network link to system
controller present
Network link lost
Green
Yellow
Power on Green Identification mode /
Indicator test
All LEDs blink
Rear panel indicators and controls
100Mbps network
1Gbps network
Yellow
Green
Device fault present Yellow
Power on Green Device reset (to factory
default)
Button
Identification mode /
Indicator test
All LEDs blink
Rear panel connections
Safety ground 48VDC input A‑B
48 V
Lifeline interface Loudspeaker output
A‑B (1‑4)
End-of-line device
Network port 1‑2
1
