68 en | *Amplifier, 600W 4-channel | PRA-AD604 PRAESENSA
2019.11 | V1.00 | Installation manual Bosch Security Systems B.V.
8.5 Installation
The device is designed to be installed in a 19"‑rack/cabinet. Refer to: Mounting the 19"-rack
devices, page 20.
The device can be connected everywhere within the PRAESENSA system. If required, refer to:
System introduction, page 13.
8.5.1 Parts included
The box contains the following parts:
Quantity Component
1 Amplifier, 600W 4‑channel
1 Set of 19"‑rack mounting brackets (pre‑mounted)
1 Set of screw connectors and cables
1 Quick Installation Guide
1 Important Product Information
No tools or Ethernet cables are provided with the device.

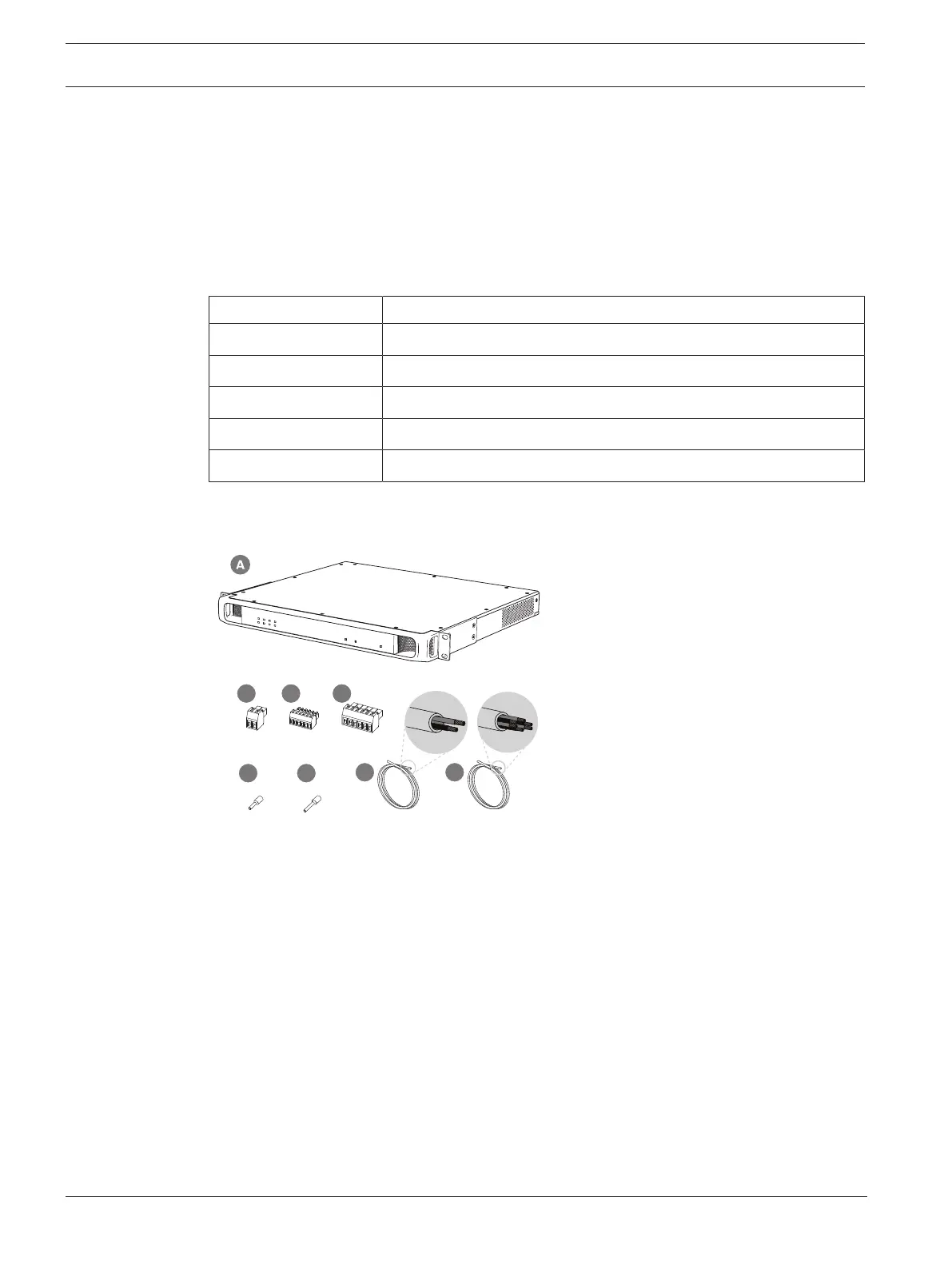

Parts check and identification
x8
x2 x1
x2 x1
B
x4
DC
H
x12
E
F G
A Amplifier
B 2-pole screw plug (x2)
C 6-pole screw plug (small)
D 6-pole screw plug (large, x4)
E Wire‑end ferrules (small, x12)
F 2-conductor cable (x2)
G 6-conductor cable
H Wire‑end ferrules (large, x8)
