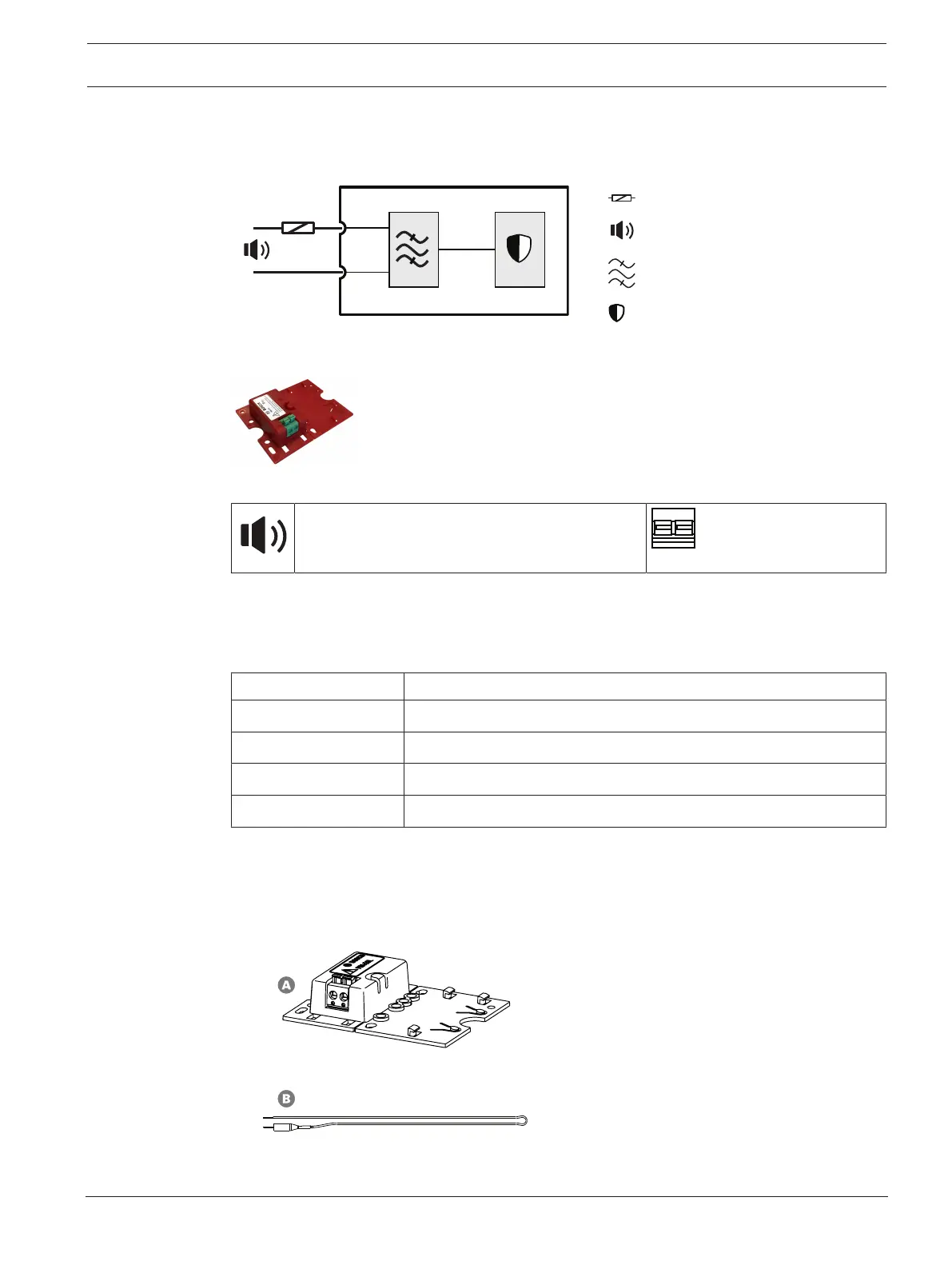

10.3 Functional diagram
Functional and connection diagram Internal device functions
Thermal fuse
Loudspeaker line
Bandpass filter
Supervision receiver/transmitter
10.4 Connections
Device connections
Loudspeaker line
10.5 Installation
10.5.1 Parts included
The box contains the following parts:
Quantity Component
8 End of line device
8 Set of connection wires with thermal fuse
1 Quick Installation Guide
1 Important Product Information
The PRA-EOL can only be ordered in multiples of eight devices, packed in one box.
No tools are provided with the device.
Parts check and identification
x8
x8
A End-of-line device
B Connection wires with thermal fuse
